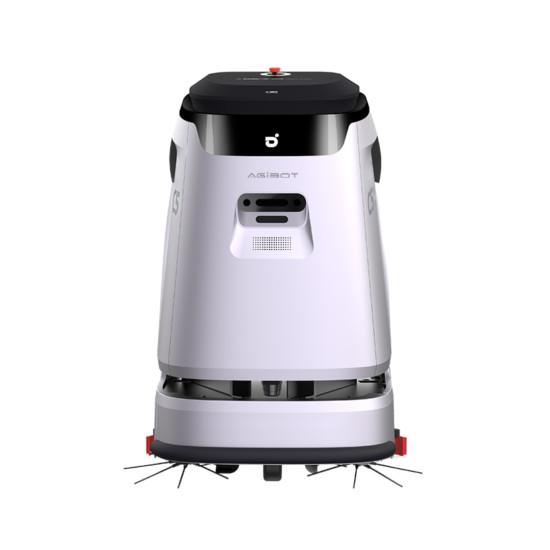

AgiBot C5 Cleaning Robot

Automatic Floor Cleaning in Large Areas

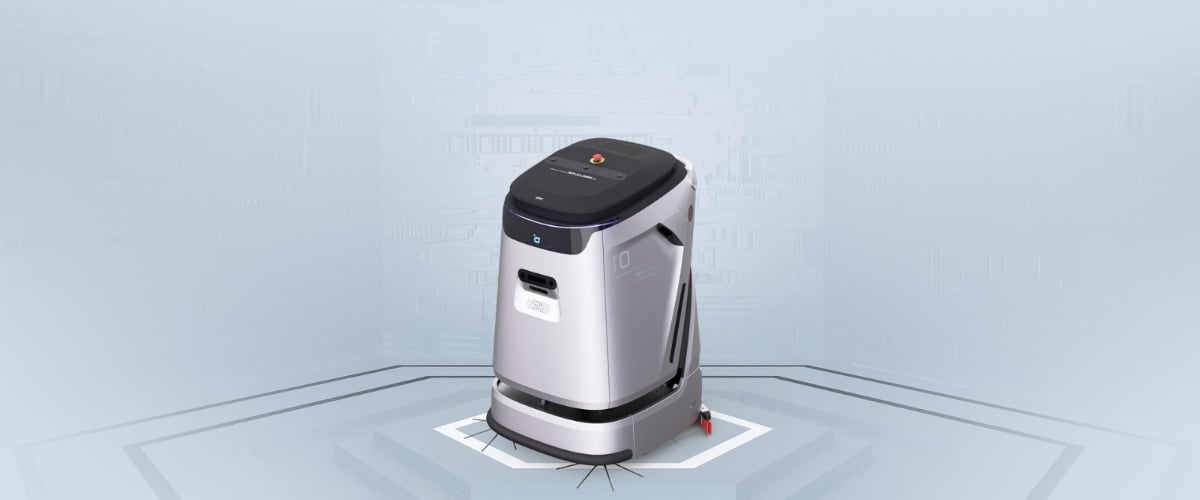

AgiBot C5 is an autonomous cleaning robot designed for regular cleaning of medium and large indoor areas. It performs sweeping, wet washing, and dry wiping of floors, with a LiDAR and visual perception-based navigation system that helps it navigate the space and respond to obstacles while moving. An automated station is provided for work automation between cycles, through which the robot charges, refills clean water, and drains dirty water. The model is suitable for shopping centers, supermarkets, manufacturing enterprises, transport hubs, and other facilities with large floor areas.

Advantages of AgiBot C5

• Sweeping, washing, and dry wiping. The robot performs multiple cleaning operations within a single route. Dual roller and side brushes work with debris and dirt on the floor surface.
• Productivity up to 1,980 m²/h. The model is designed for regular cleaning of large indoor areas. The washing width is 550 mm.
• 95% debris collection efficiency. A pressing force of 25 kg ensures brush contact with the surface, while side brushes clean areas along the edges.
• Re-cleaning of missed areas. The system can detect untreated areas after completing a route and redirect the robot to these zones.
• Automatic navigation. LiDAR and visual perception systems are used for positioning, route planning, and obstacle detection.
• Automatic station operation. Upon return, the robot can charge, refill water, and drain dirty water without manual intervention.
• Up to 3 hours of operation in washing mode. The water tank capacity of 90 L is designed for long cleaning cycles of large areas.

Floor Cleaning System

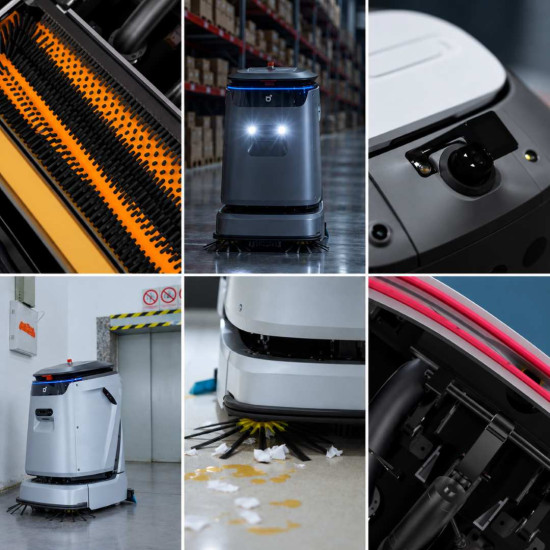

Dual roller brushes work together with side brushes, providing mechanical surface cleaning while moving. The robot can sweep, perform wet washing, and dry wipe floors. Side brushes clean areas near walls and edges that are outside the main working width of the roller brushes. During washing, the pressing force is 25 kg, and the processing width is 550 mm. The water tank capacity is 90 L, and the washing mode operation duration reaches 3 hours, reducing the need for frequent breaks during cleaning of large spaces.

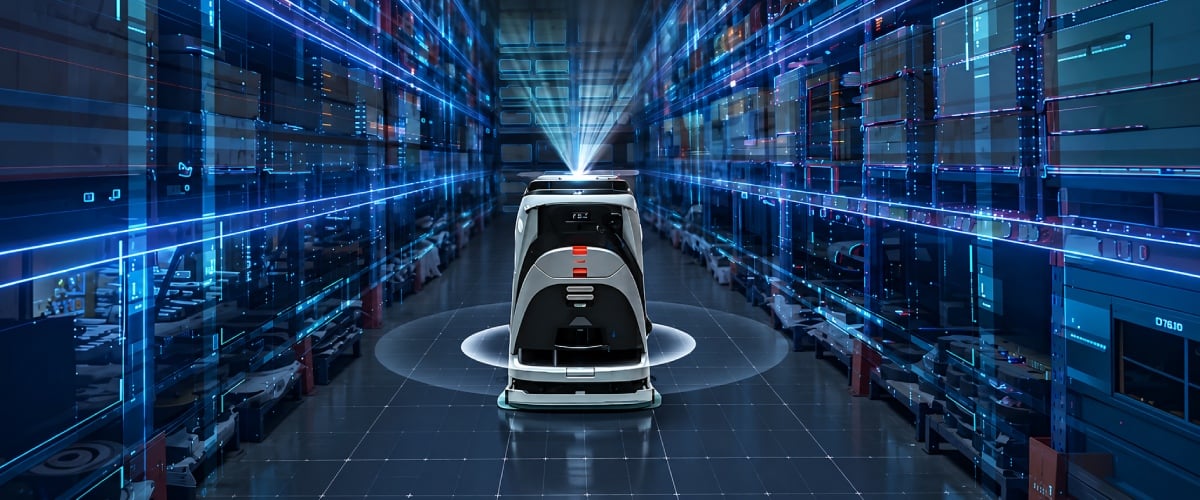

Navigation and Obstacle Detection

For indoor orientation, the robot uses LiDAR and visual perception data. The system determines equipment positions, detects obstacles, and adjusts the route while moving. It provides warnings about possible collisions and detects height differences. When setting up the work area, the system can define zone boundaries, divide the area into separate sections, and update the map according to the environment. If untreated zones remain after completing a route, the robot can automatically return for re-cleaning.

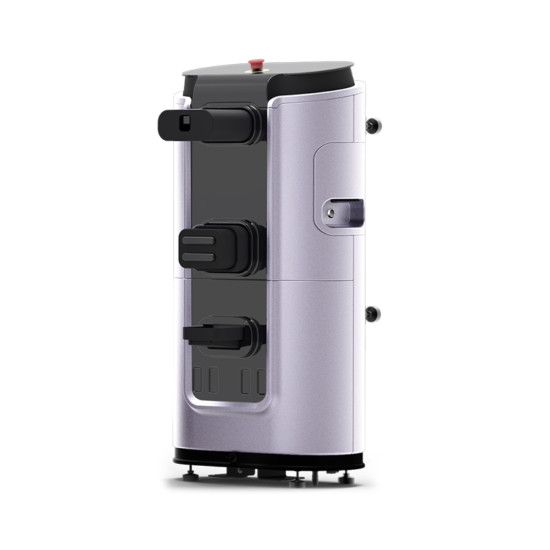

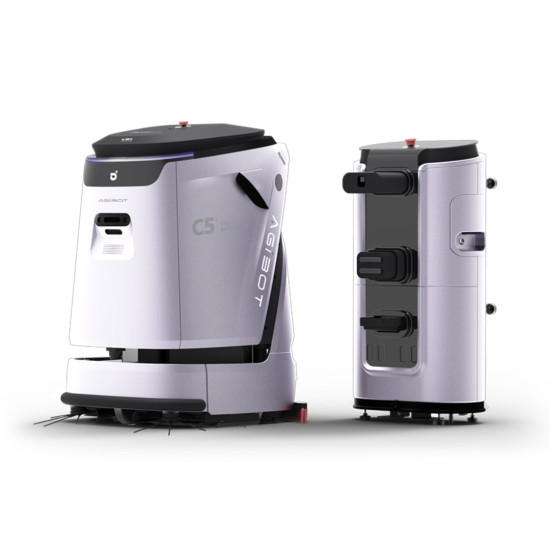

AgiBot C5 Automatic Station

The station automates key operations between cleaning cycles. Upon return, the robot can charge, refill clean water, and drain dirty water. It also features self-cleaning of the dirty water tank, with a cycle lasting about 4 minutes. Main station parameters:

• tank capacity — 8 L;
• clean water supply — 7–10 L/min;
• dirty water drainage — 10–15 L/min;
• maximum power — 1,800 W;
• nominal input voltage — 200–240 V.

For facilities where stationary water supply connection is not possible, a mobile tank can be used as additional equipment.

Where AgiBot C5 Can Be Used

The model is designed for medium and large indoor areas where regular automated cleaning is required:

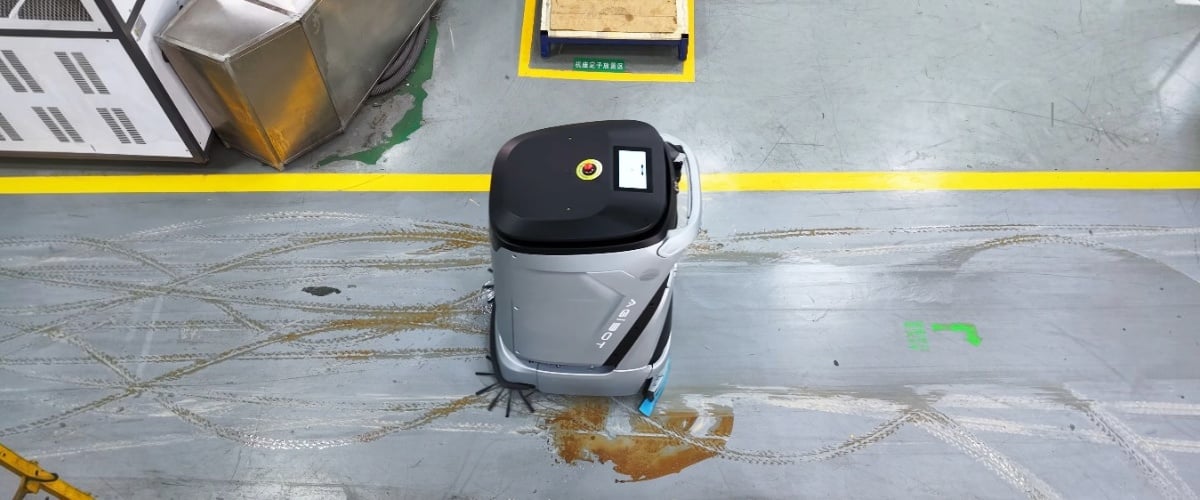

• Manufacturing enterprises. Floor cleaning in production workshops, aisles, and other work zones.
• Transport hubs. Cleaning of large halls, corridors, and waiting areas with regular foot traffic.
• Shopping complexes. Cleaning of galleries, aisles, and common areas of shopping facilities.
• Large supermarkets. Regular cleaning of sales areas, wide aisles, and open spaces.
• Medical and educational institutions. Cleaning of corridors, lobbies, and other spacious indoor areas.
• Lobbies and public spaces. Automated cleaning of large areas with constant foot traffic.

Floor Types for AgiBot C5

The robot is designed to work with common hard surfaces in commercial, public, and industrial premises:

• Epoxy coating. Suitable for cleaning smooth polymer floors in industrial and commercial areas.
• Marble. The robot can operate on smooth stone surfaces in shopping halls, lobbies, and other premises.
• Ceramic tiles. Regular cleaning of tiled floors in public and commercial areas is supported.
• Terrazzo. Suitable for cleaning hard mosaic surfaces in large indoor areas.
• Industrial coating with mineral hardener. Can clean hard, wear-resistant floors in industrial zones.
• PVC coating. Supported for work with polymer floors in commercial, public, and work premises.

Technical Specifications of AgiBot C5

Operating Recommendations

• Prepare the work area. Remove cables, unstable items, and other objects from the route that may obstruct movement.
• Regularly check the brushes. Hair, fibers, and debris should be removed to maintain good brush contact with the floor.
• Monitor the water supply system. Check the condition of the tanks and ensure that the water supply and drainage channels are not blocked.
• Leave free access to the station. The robot should be able to return for charging and water operations without obstacles.
• Check the route after equipment rearrangement. Significant changes in the room may affect the map, so it is advisable to monitor the first cycle after moving furniture or equipment.

Order AgiBot C5

Order the AgiBot C5 cleaning robot for automating cleaning of large commercial, public, and industrial premises. Our specialists will help you choose the configuration, clarify the conditions for station installation, and consult on equipment implementation at your facility.
