- Stock: In Stock
- Product code: 827588000002400122
- Weight Brutto: 65.00kg
More from this brand

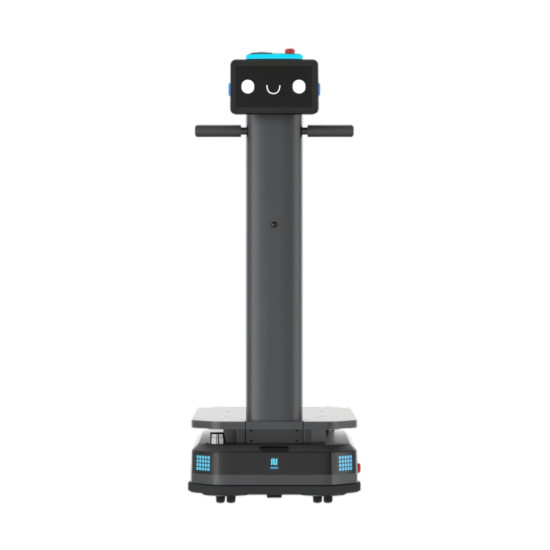

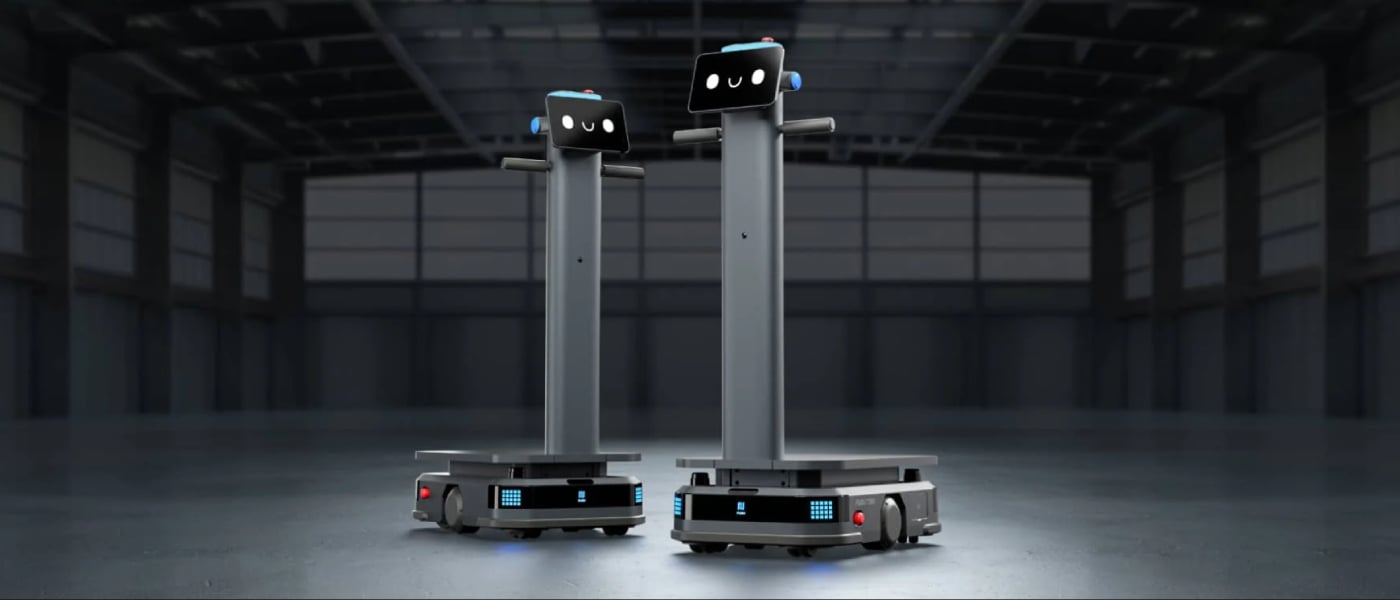

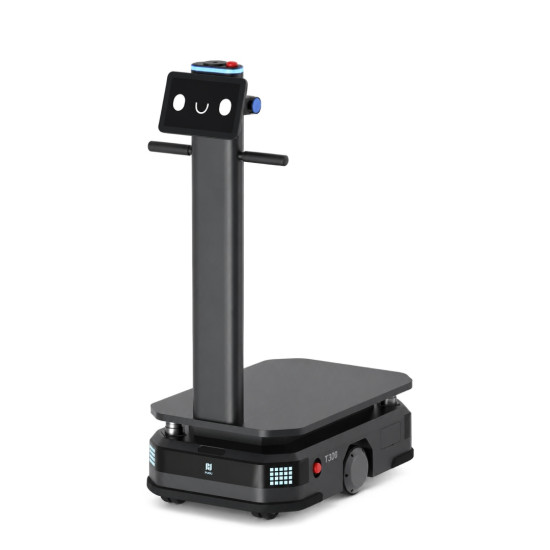

PUDU T300 Standard is an autonomous mobile robot designed for transporting materials at production facilities and warehouses, with a load capacity of 300 kg and a combined VSLAM and LiDAR SLAM navigation system. The model is oriented towards facilities with narrow aisles, as it requires a minimum track clearance of only 60 cm. The equipment supports integration with automatic doors, performing tasks in inter-floor spaces.
Advantages of PUDU T300
- High load capacity in compact dimensions. The robot transports materials weighing up to 300 kg, maintaining a body width of 500 mm and a length of 835 mm for passage in narrow zones.
- Maneuverability in confined spaces. The equipment requires only a 60 cm wide passage for movement, allowing it to work alongside people and other equipment.
- Flexibility in connecting additional modules. The base chassis supports the installation of shelves, lifting platforms, or towing devices for various transportation methods.
- Continuous work cycle. The lithium battery provides up to 8 hours of autonomous movement, and fast charging in 2 hours and the possibility of battery replacement ensure 24/7 operation.
- Safe movement according to ISO 3691-4 standard. The sensor system detects low and suspended obstacles and recognizes the yellow safety line on the floor.
Design and Cargo Transportation

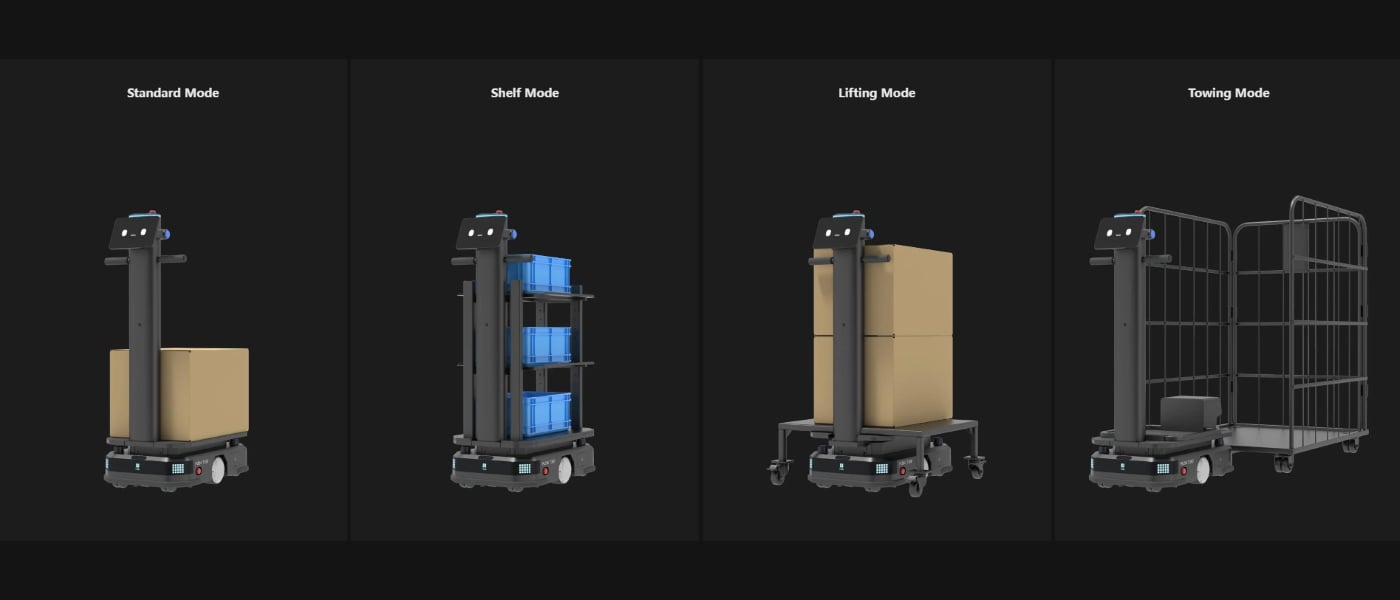

PUDU T300 is built on a sturdy chassis that can be adapted to various internal logistics tasks. The model is available in Standard versions, and the base platform can be supplemented with shelves or a lifting mechanism or configured for use as a tractor. The total height of the robot, including the interactive touch control screen, is 1350 mm.
Navigation and Route Planning
The robot uses PUDU VSLAM+ and LiDAR SLAM technologies, allowing it to navigate without reflective markers and magnetic tapes. In case of changes in the location of production lines, the digital map of the object can be adjusted programmatically, without complex route re-equipment.
The robot operates in several modes:
- Automatic delivery: autonomous following to the specified point.
- Follow Mode: the robot follows the operator or another robot using visual recognition.
- Power-assist Mode: the electric drive facilitates manual pushing during map building or calls.
Safety and Obstacle Overcoming

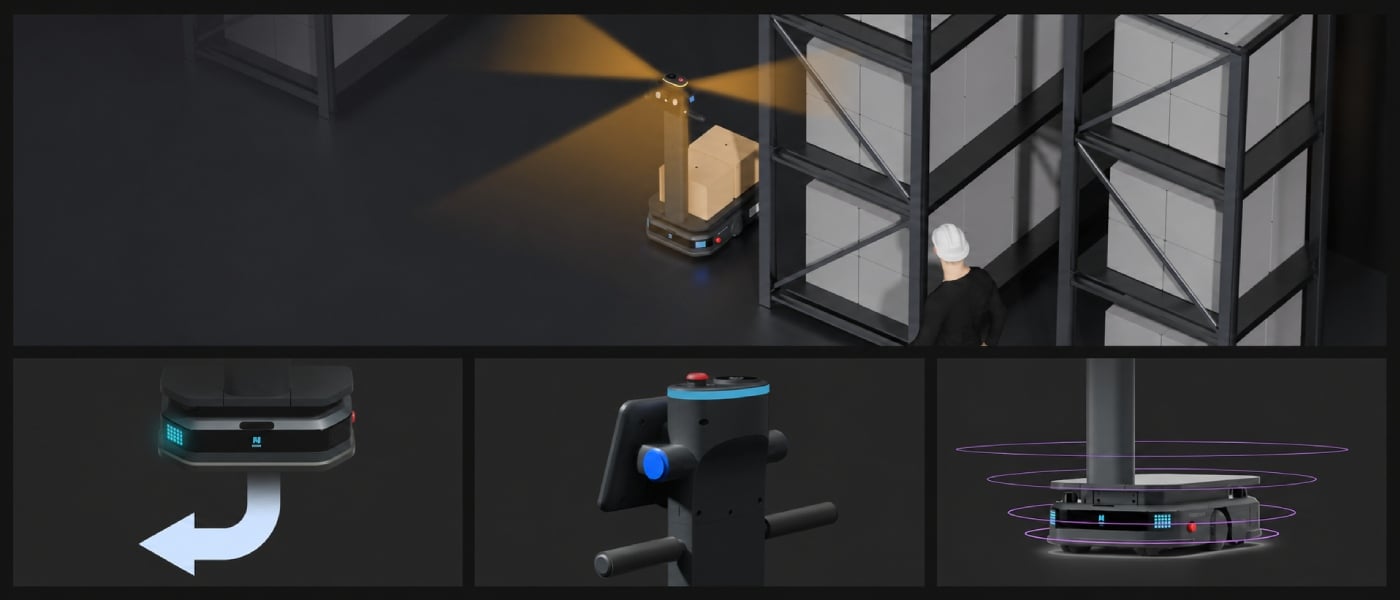

The safety system includes LiDAR sensors, depth cameras, collision sensors, and emergency stop buttons. The equipment recognizes obstacles at floor level and height. The running gear is designed to overcome thresholds up to 20 mm high and grooves up to 35 mm wide.
Power and Autonomy

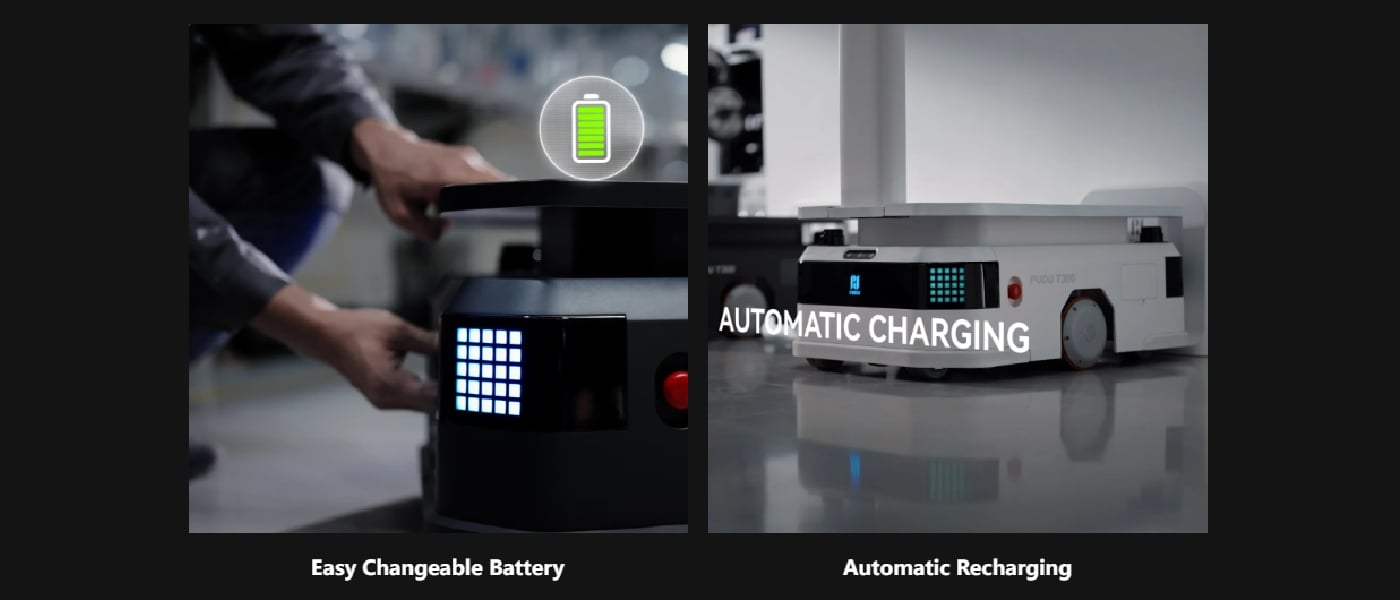

The rechargeable battery provides up to 8 hours of continuous operation without cargo, and full charging takes about 2 hours. To maintain the work cycle, automatic return to the charging station and the possibility of quick manual battery replacement are provided.

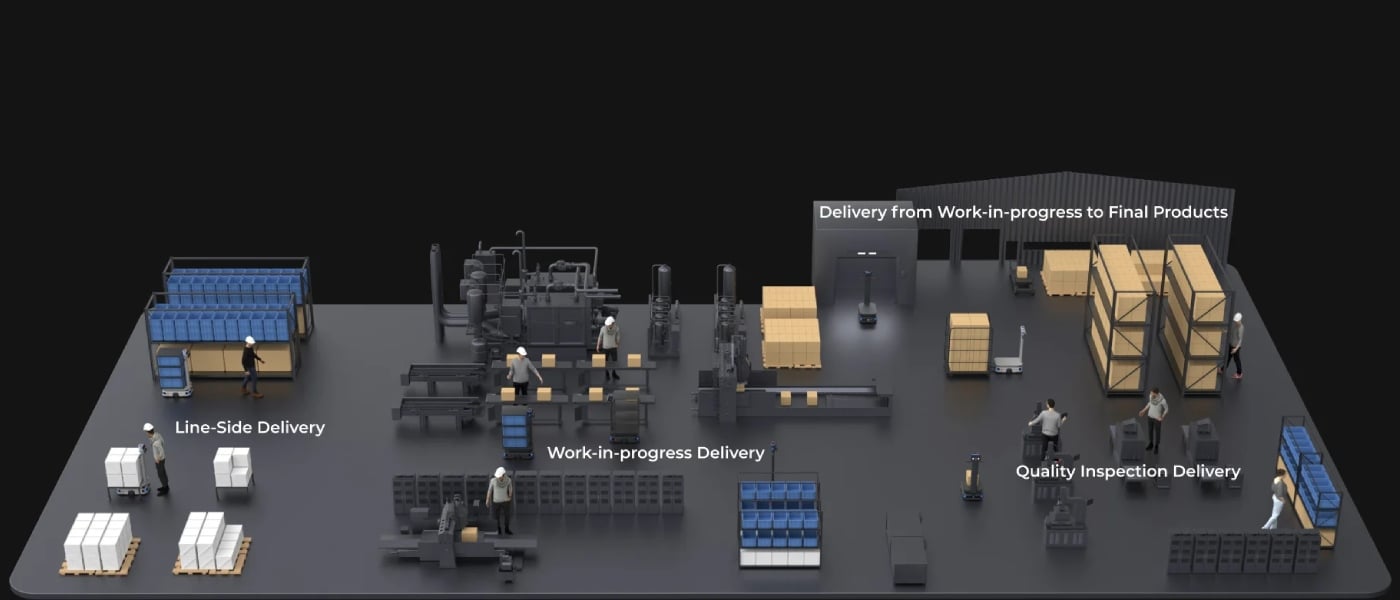

Where PUDU T300 is Used
- Manufacturing enterprises: transportation of raw materials, parts, and components between assembly lines.
- Automotive industry: inter-shop movement of heavy units and components.
- Electronics industry: delivery of fragile components and finished products in closed containers or on shelves.
- Warehouses and distribution centers: transportation of orders, boxes, and containers between storage and shipping zones.
Compatibility and Connectivity
PUDU T300 supports integration with the enterprise's network infrastructure through open software and hardware interfaces. The robot interacts with elevator controllers, automatic doors, and turnstiles for free movement between floors and isolated zones. Remote task calls and coordination of multiple equipment units in a single network are possible.
Technical Specifications of PUDU T300
| Parameter | Value |
| Model | WTID01 |
| Maximum load | 300 kg |
| Autonomous operation time (without load) | 12 hours |
| Autonomous operation time (work cycle) | 8 hours |
| Charging time | 2 hours |
| Minimum passage width | 60 cm |
| Threshold overcoming height | 20 mm |
| Gap overcoming width | 35 mm |
| Navigation type | VSLAM & LiDAR SLAM |
| Safety standards | ISO 3691-4 |
| Net weight | 65 kg |
| Net size | 835 × 500 × 1350 mm |
What to Check Before Ordering
- Cargo parameters. Determine the maximum weight of the loads the robot will transport daily.
- Route width. Measure the narrowest aisles, doorways, and turning zones. The minimum passage width should be 60 cm.
- Floor condition. Check for height differences, thresholds over 20 mm, grooves deeper than 35 mm, and other irregularities on the route.
- Integration with infrastructure. Determine in advance whether the robot needs to be connected to elevators, automatic doors, or other systems of the facility.
- Chassis configuration. Choose an option according to work tasks: standard platform, lifting mechanism, or towing module.
- Operation and charging mode. Assess the duration of shifts, transportation intensity, and the need for an automatic charging station or additional batteries.
Buy PUDU T300
Optimize internal transportation at your enterprise! The PUDU T300 transport robot helps automate the delivery of goods between production, warehouse, and work zones. Specify the parameters of the object and transportation tasks — our specialists will calculate the cost of the complex and select the appropriate configuration.
