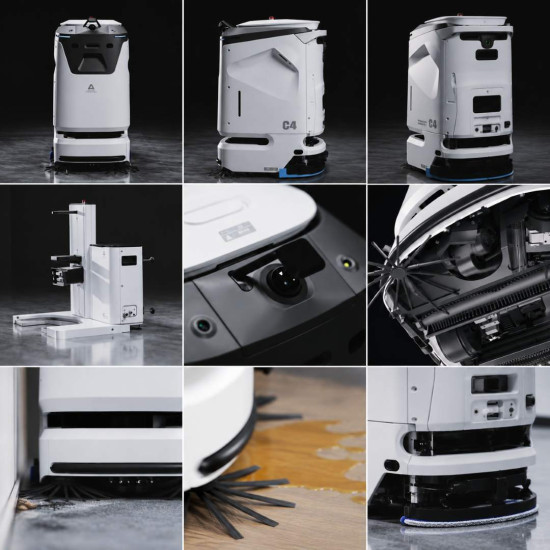

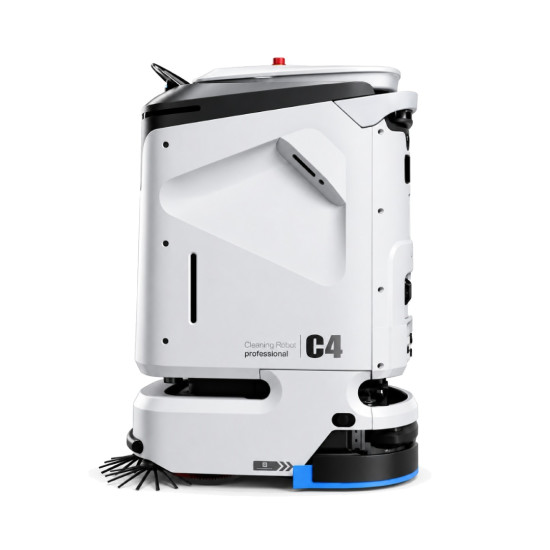

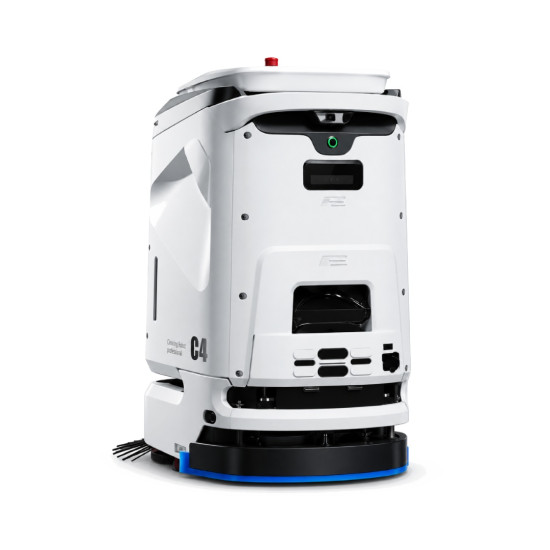

AgiBot C4 Cleaning Robot

AgiBot C4 automatic cleaning of small and medium-sized premises

AgiBot C4 is an autonomous cleaning robot for regular floor cleaning in small and medium-sized indoor spaces. It performs sweeping, wet mopping, and dry wiping, using multi-channel LiDAR and a visual perception system for navigation. The robot can automatically update the room map, navigate among equipment and other objects, and operate in passages as narrow as 600 mm. The automatic station provides charging, handling of clean and dirty water, replenishment of cleaning solution, and cleaning of main working units.

Advantages of AgiBot C4

• Comprehensive floor cleaning in one pass. The robot performs sweeping, wet mopping, and dry wiping. The front brush collects debris, after which the cleaning unit cleans the surface.
• Efficient collection of dry and wet debris. The debris collection efficiency is 95%. The system separates different types of debris, simplifying subsequent equipment cleaning.
• Fast cleaning of large areas. Productivity up to 1,400 m²/h allows the robot to be used for regular cleaning of retail, office, warehouse, and other premises.
• Maneuverability in narrow passages. The minimum passage width is 600 mm, and the turning radius is 800 mm, allowing the robot to move between shelves, furniture, and equipment.
• Autonomous movement within the premises. Multi-channel LiDAR and a visual perception system provide positioning, route building, and response to environmental changes.
• Less manual maintenance. After completing a task, the robot can automatically charge, replenish clean water, drain dirty water, and receive cleaning solution at the station.
• Automatic cleaning of working units. The system supports self-cleaning of the roller brush, squeegee, dirty water tank, and station, reducing the amount of regular manual cleaning.
• Faster detection of technical issues. The self-diagnosis system monitors over 90% of malfunctions, simplifying the check of the robot's technical condition during operation.

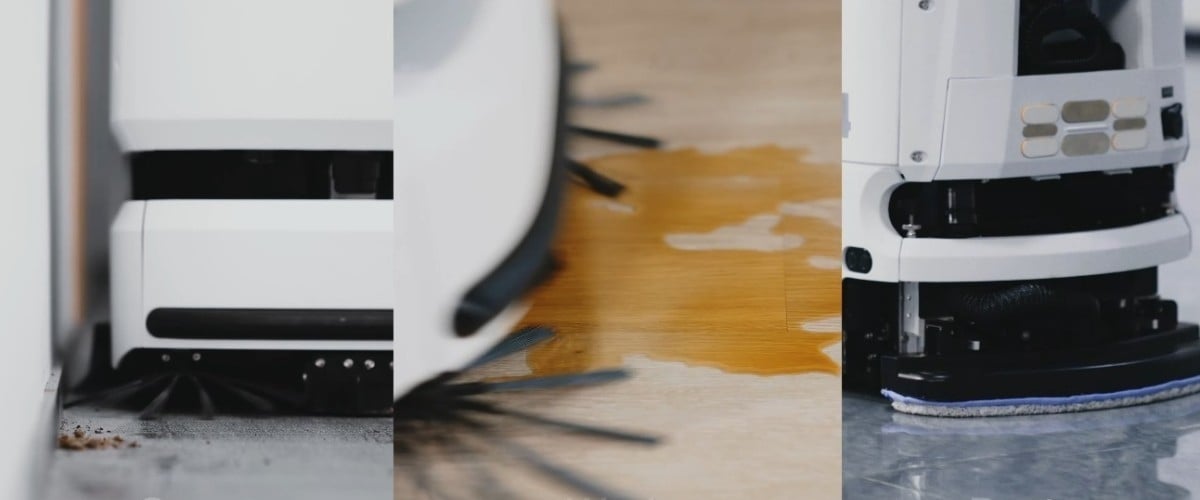

AgiBot C4 Cleaning System

The robot combines sweeping, mopping, and dry wiping of floors. The front brush collects debris before the main pass, the cleaning unit removes dirt from the surface, and the side brush extends the cleaning area along the route. The mopping width is 380 mm, the cleaning width with the side brush is 600 mm, and the squeegee width is 540 mm. The combination of these working elements allows processing of the main movement strip and capturing debris over a wider area. Separate tanks with a capacity of 25 liters each are provided for clean and dirty water. The debris collection efficiency is 95%, and the working time in mopping mode reaches 3 hours, allowing for long cleaning cycles without frequent interruptions.

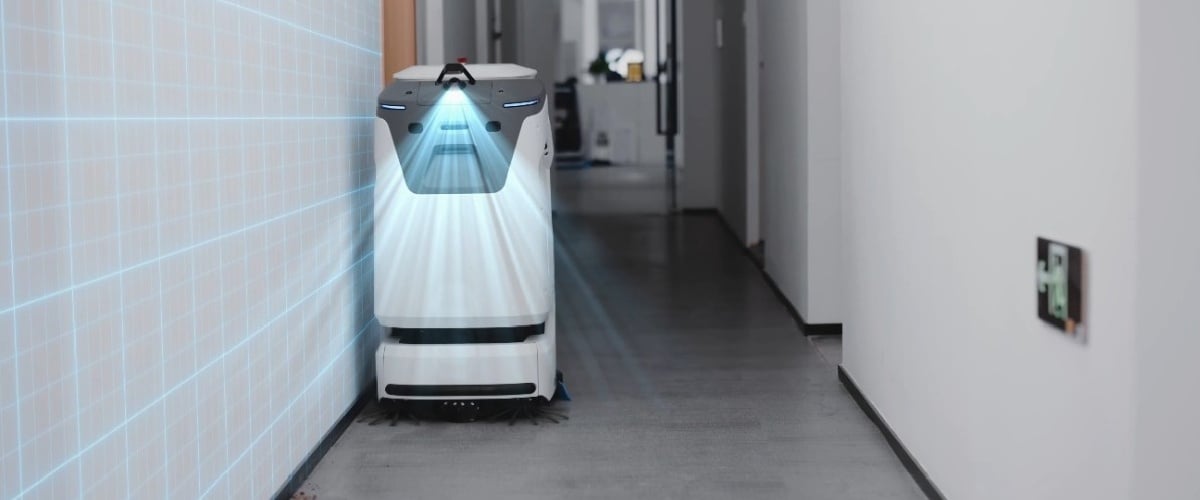

Navigation and Maneuverability

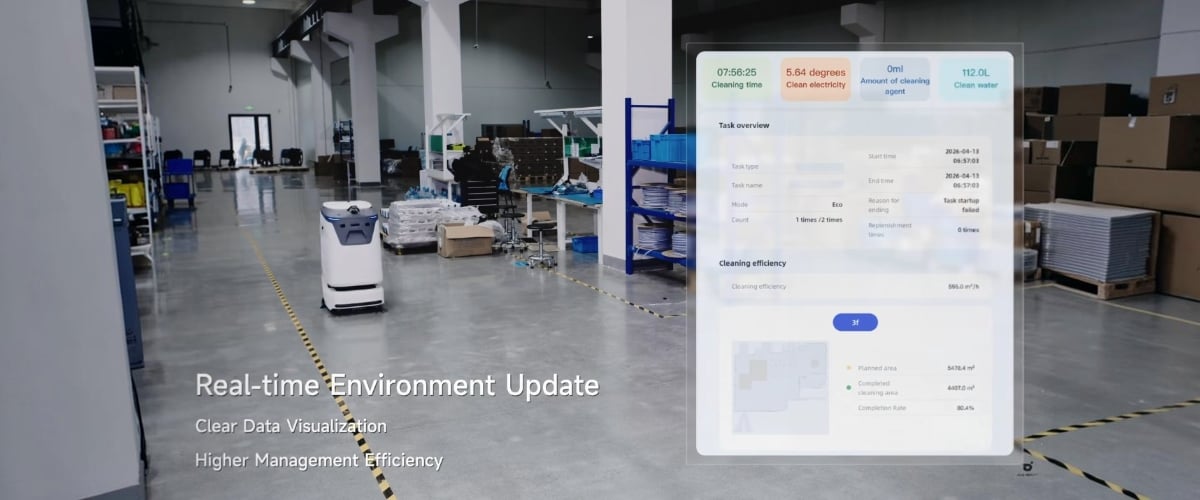

For navigation within the premises, the robot uses multi-channel LiDAR and a visual perception system. They help determine the robot's position, build a route, and detect objects in the working area. The room map automatically updates according to environmental changes. This allows the robot to adapt the route if furniture, equipment, or other objects are moved in retail, warehouse, or production spaces. The minimum passage width is 600 mm, and the turning radius is 800 mm. This enables the robot to maneuver and perform cleaning in confined spaces between shelves, equipment, and other objects.

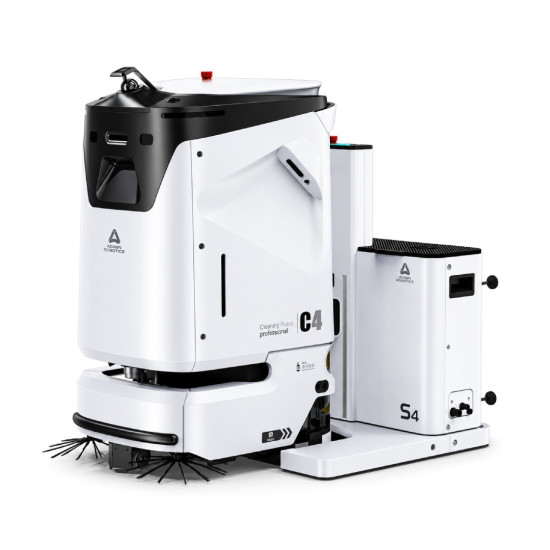

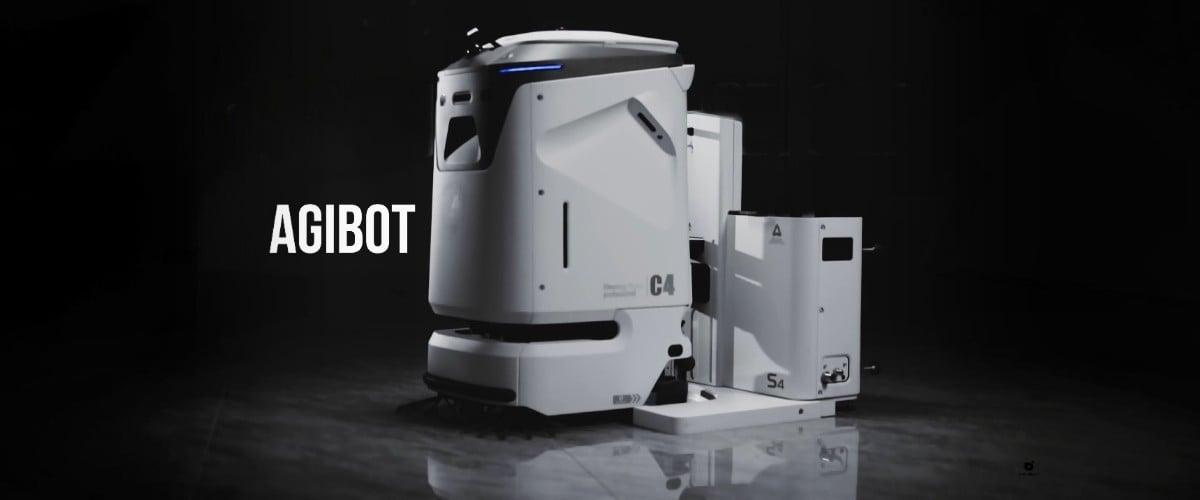

AgiBot C4 Automatic Station

The station automates main operations between cleaning cycles and reduces the need for manual maintenance. After returning, the robot can automatically charge, replenish clean water, drain dirty water, and receive cleaning solution.

The system supports self-cleaning of the roller brush, squeegee, dirty water tank, and station. Dirty water filtration retains large debris particles before they enter the pump system, helping to maintain stable equipment operation. Main station parameters:

• tank capacity: 4 liters;
• clean water supply: 5–8 liters/min;
• dirty water drainage: 4–8 liters/min;
• maximum power: 1,200 W;
• nominal input voltage: 200–240 V.

Where AgiBot C4 Can Be Used

The model is designed for regular automatic cleaning of hard floors in commercial, public, warehouse, and production premises:

• Supermarkets. Cleaning of sales areas, aisles, and other open zones with regular foot traffic.
• Subway stations. Cleaning of lobbies, passages, and waiting areas.
• Production and warehouse premises. Cleaning of aisles, work areas, and personnel and cargo movement zones.
• Hotels. Cleaning of lobbies, corridors, and other common indoor areas.
• Office buildings. Regular cleaning of lobbies, corridors, and open workspaces.
• Exhibition halls and stores. Cleaning of sales and demonstration areas, aisles, and accessible zones between equipment.

Compatible Floor Types

AgiBot C4 is designed to work with common hard surfaces:

• Marble. Suitable for regular cleaning of smooth stone floors in public and commercial premises.
• Epoxy floors. The robot can operate on polymer coatings in production and warehouse zones.
• PVC coverings. Cleaning of polymer floors in stores, offices, hotels, and other premises is supported.
• Ceramic tiles. Suitable for cleaning tiled surfaces in retail and public areas.
• Abrasive industrial coatings. The robot can work on hard, wear-resistant floors designed for intensive use.

Technical Specifications of AgiBot C4

Order AgiBot C4 Cleaning Robot

Order AgiBot C4 to automate floor cleaning in retail, office, warehouse, public, and production premises. Our specialists will help clarify the configuration, installation conditions of the station, and the possibilities of implementing the robot at your facility.
