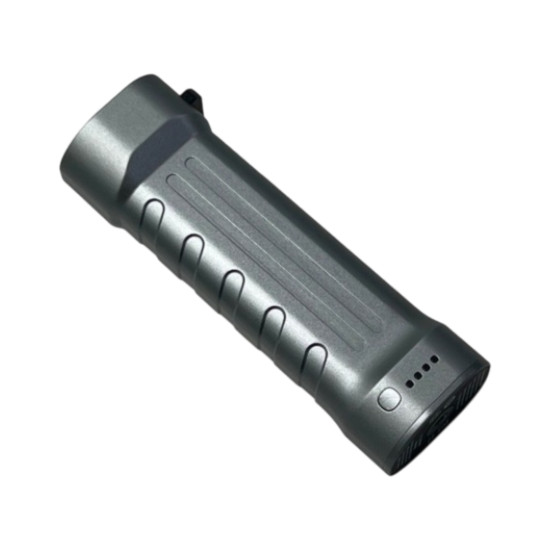

Battery for XGRIDS Lixel K2 handheld 3D scanner

Power Battery for Handheld 3D Scanner XGRIDS Lixel K2

Battery for XGRIDS Lixel K2 is a replaceable battery for the handheld 3D scanner XGRIDS Lixel K2, which provides power to the equipment during spatial data collection. The battery is installed at the bottom of the scanner, securely held by a mechanical latch, and has a light indicator to monitor the remaining charge. It takes approximately 2 hours to fully charge.

Main Features of the Battery

• Compatibility with the handheld 3D scanner XGRIDS Lixel K2.
• Removable design for quick battery replacement.
• Reliable mechanical fixation in the device body.
• Approximately 2 hours to full charge.
• Light indication of battery status.
• Estimated resource — 300–500 charge-discharge cycles, after which the capacity may be about 70–80% of the original.

How to Use the Battery

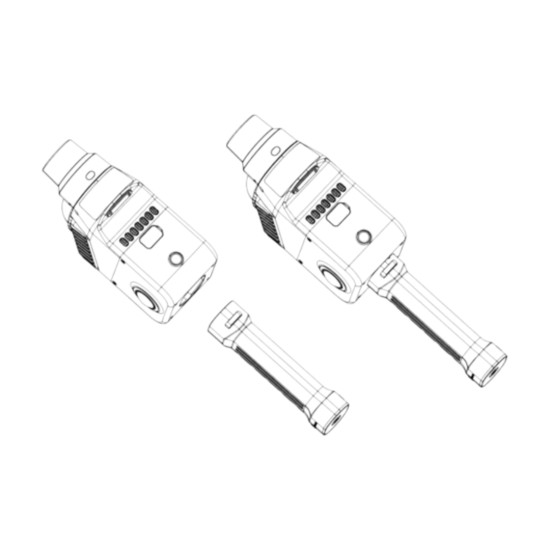

The battery is mounted in the lower part of the XGRIDS Lixel K2 scanner. During installation, press the latch, insert the battery fully, and then ensure it is securely fastened. Before starting scanning, it is advisable to additionally check its fixation.

To recharge, use the appropriate charging adapter with a cable. A full cycle takes about 2 hours. The current battery status can be monitored using the built-in light indication.

Charge Level During Scanning

Before starting work, XGRIDS recommends checking the battery's energy reserve. For starting data collection, a charge level of no less than 51% is desired.

If the indicator drops to 10%, the system notifies of low charge. In such a situation, it is recommended to save the obtained data and complete the scanning before the device automatically shuts down.

Resource and Storage Rules

After completing daily work, it is recommended to fully charge the battery. If the battery is not used for a long time, it should be charged at least once every 3 months. In case of severe or complete discharge, the battery should be charged within 3 days.

The estimated battery resource is approximately 300–500 charge-discharge cycles. After this, the capacity may decrease to 70–80% of the original value. For proper storage, the manufacturer recommends keeping the battery in a dry and cool place.

Technical Specifications of the Battery for XGRIDS Lixel K2

Order the Battery for XGRIDS Lixel K2 on Our Website

The battery can be purchased as a replacement for the main battery of the XGRIDS Lixel K2 scanner or as an additional power source for working with the equipment. Contact our managers to clarify additional details.
