- Stock: In stock
- Product code: 100HSX-SR
- Weight Brutto: 13.20kg
More from this brand

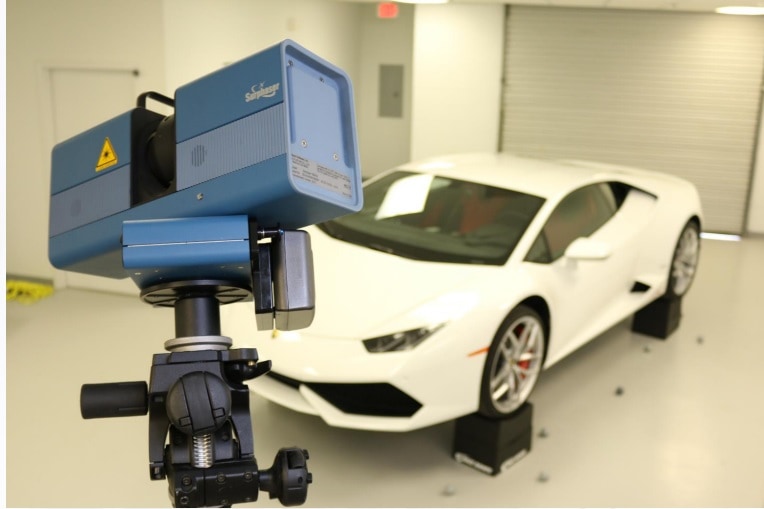

Large Object 3D Scanner Surphaser 100HSX-SR
Surphaser 100HSX Large Object 3D Scanner is a short range laser hemispherical 3D scanner from 1m to 7m. Known in the 3D measurement industry as the instrument that offers the most accurate data, resolution and data quality available in rangefinder scanners. Surphaser scanners are second to none when it comes to data quality and measurement accuracy.
Typical applications for scanners of this rank are aircraft construction, military equipment, automobiles, shipbuilding, large industrial equipment such as power generation, large impellers, large buildings, large cast parts. All applications where very high data quality and accuracy are important, in quality assurance and reverse engineering.
Surphaser manufactures ultra-short and short range scanners, as well as medium and long range scanners. Scanners Surphaser 100HSX are positioned as devices of short and medium range. Scanning range (range) model 100HSX-SR - from 1 to 7 m.
How Surphaser Scanners Work
The scanner rotates in two planes, 360º vertical and 270º horizontal, projecting a laser beam that is directed into the space around the scanner by a mirror set at an angle of 45 degrees. The beam is reflected from the surface of the scanned object and returned to the scanner sensor. It calculates the distance to the object from the phase shift. Scanner collects XYZ coordinate data point cloud of the measured object's surface. The data quality obtained is ensured by the high density of laser beams per 1° angle. Scanner reads the geometry of large objects at a high speed of more than 1 million points per second and submillimeter accuracy up to 0.025 mm.
Main advantages of 100HSX-SR
- Submillimeter precision scanners with scanning speeds up to 1.2 million points per second. This is a 3D scanner for large objects with a scanning radius from 1 m to 7 m.
- Laser Class 3R - the device can work in industrial conditions, including outdoors.
- The software allows you to export clean and accurate datasets to PolyWorks®, Geomagic®, Cyclone®, RealWorks® and other processing applications.
- Easy to set up and move, fits in a carry-on sized case approved for most domestic airlines.
- Optional built-in scan controller and spare battery adapter - can work for long periods away from the main power source and the computer.
- Controlled remotely from a smartphone, tablet or computer.
- Optional 60 megapixel equivalent color camera system with automatic color matching.
Surphaser SR and IR Configurations
| SR_100 | IR_100HQ* | IR_100HS* | |
| Recommended Work Range (m) | 1 - 7 | 1 - 35 | 1 - 50 |
| Ambiguity Range (m) | 90 | 90 | 90 |
| Angular Uncertainty (arc sec) | 15 | 15 | 15 |
| Range Noise mm; 90% reflectivity | 0,024@4 m | 0,07@10 m | 0,16@10 m |
| Range Noise mm; 10% reflectivity | 0,088@4 m | 0,41@10 m | 0,3@10 m |
| Range Uncertainty (mm) | <0,3@3 m | <0,35@5 m | <0,7@15 m |
* IR_100HQ and IR_100HS are software selectable options based on the same IR_100 hardware model.
Surphaser 100HSX-SR Specification
| Device Model | Surphaser® 100HSX-SR (Short Range) |
|---|---|
| Scanner Type | Phase-shift hemispherical scanner with 360° × 270° Field of View |
| System Performance (SR HQ Configuration) | |
| Recommended Working Distance | 1 – 7 m |
| Ambiguity Range | 90 m |
| Angular Uncertainty | 15 arc sec |
| Range Noise (at 90% reflectivity) | 0.024 mm @ 4 m |
| Range Noise (at 10% reflectivity) | 0.088 mm @ 4 m |
| Range Uncertainty | < 0.3 mm @ 3 m |
| System Specifications | |
| Distance Measurement Method | Phase-shift |
| Laser Wavelength | 685 nm |
| Laser Type | CW (Continuous Wave) |
| Laser Class (IEC EN60825-1:2007) | Class 3R |
| Scan Rate | 208,000 – 800,000 points/sec |
| Internal Coordinate Representation Unit | 0.001 mm |
| Angular Representation Unit (Vert. / Horiz.) | 1 arc sec |
| Scan Density Control (Software) | |
| Min. Vertical Point Density | 24 points/degree (ppd) |
| Min. Horizontal Point Density | 10 lines/degree (lpd) |
| Max. Vertical Point Density | 90 points/degree (ppd) |
| Max. Horizontal Point Density | 90 lines/degree (lpd) |
| Full Volume Scan Time (at 7200×7200 density) | 4.5 min |
| Field of View (FOV) | |
| Horizontal (Maximum) | 360° |
| Vertical (Maximum) | 270° |
| Dimensions and Weight | |
| Weight | 11 kg |
| Dimensions (L × H × W) | 381 × 219 × 120 mm |
| Operating Conditions and Power | |
| Calibrated Operating Temperature | 5°C to 45°C (non-condensing) |
| Power Source | 14–24 V DC, 90 W |
| Computer Requirements | |
| System Requirements (PC) |
Processor: 2.4 GHz or higher; RAM: 16 GB or more (32 GB recommended for processing); OS: Windows 11; Port: USB 2.0 or compatible USB 3.0 port |
| Package and Accessories | |
| Standard Accessories |
• Built-in scan controller (standalone operation without PC) • Wi-Fi connectivity module • Surphaser USB 2.0 cable • Power supply 110/240 V AC (output 14–24 V DC, 3.5 A) • Surphaser DC power cable • Tripod adapter • 2 Li-Ion batteries 14 V, 98 Wh (1.5–2 hours of operation each) • 2 battery chargers • Carrying case • 1-year warranty and basic support contract |
| Optional Accessories |
• Optional panoramic camera system (with software for automatic color mapping and exposure adjustment) • SMR compatible targets and target case • Dual-axis tilt sensor (inclinometer) • Scanner carrying bag • Tripod • Extended warranty contract (includes one free annual maintenance and calibration) |
Buy a hemispherical laser 3D scanner Surphaser in Poland
In the Center 3D Print store you will find a wide range of scanners of various technologies, configurations and manufacturers. Available as affordable models of 3D scanners for non-professional users and small workshops, as well as professional metrological-grade devices industrial applications. Our experts will help you to choose the best device for your needs. Delivery throughout Poland and Europe.
