- Stock: Out of stock
- Model: OptimScan-5M
- Weight Brutto: 8.20kg
More from this brand
High-precision 3D inspection scanner OptimScan-5M
Introducing the Shining 3D scanner OptimScan-5M, a high-precision 3D inspection scanner with blue LED light that features high-end appearance, structure, components, and configuration. Its 5.0-megapixel camera and blue light scanning technology provide users with amazing scanning speed and accuracy, suitable for high-end applications such as defense, aerospace, mold manufacturing, and more.
The Shining 3D OptimScan-5M 3D scanner is an ideal component for a fully automated machine shop environment. It has a flexible design that allows it to be used both on a fixed tripod and in combination with robotic systems. The innovative 3D blue light scanning technology is ideal for precise scanning of small to medium filigree and complex objects with an extraordinary accuracy of up to 0.005 mm thanks to 5.0-megapixel cameras.
The versatility and simplicity of the software makes OptimScan-5M perfectly adaptable to demanding batch inspection tasks as well as individual inspection tasks. In terms of data processing, the OptimScan-5M comes with an easy-to-use, intuitive software, and scan data can be imported into any standard inspection software on the market.
Key features
- Minimize error variance and maximize time savings. This solution avoids manual errors by checking CAD data directly, which improves the efficiency of the inspection process.
- Dramatic increase in production efficiency. Professional inspection software can record all steps and parameters. Batch inspection is as easy as single case inspection because the software can repeat the inspection procedure automatically. The user can simply press a single key to perform the inspection of a single case or multiple cases.
- Smart inspection. The user can change any steps of the inspection process and the software will update all relevant steps automatically. The user is authorized to make changes until the best inspection result is obtained.
- High accuracy. Repeatability is an important part of the quality control process. The full-dimensional SHINING 3D solution can help the user easily realize this repeatability. Its automation also minimizes error variation from user to user.
Shining 3D OptimScan-5M 3D scanner
Blue light scanning technologyThe OptimScan-5M 3D metrology scanner uses blue light technology to scan more types of objects with dark color features or metallic materials. |
| ||
| Higher productivity
| ||
High scanning speed
|
| ||
| Application of the OptimScan-5M scanner in high-tech industriesOptimScan-5M is suitable for use in the military industry, aerospace industry, mold foundry, etc. Non-contact 3D scanning can be applied to complex components such as measuring and inspecting turbine blades, which takes about 10% of the total time required for a traditional CMM system. Not only is it faster, but full dimensional inspection and measurement can be performed. | ||
Reliable and portable
|
| ||

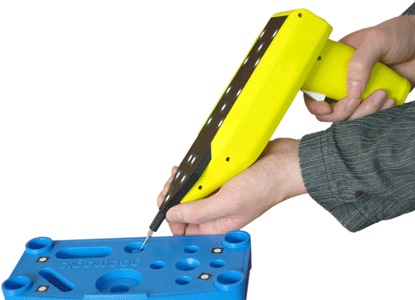

| 3D Probe
|
|
Buy 3D metrology scanner in Poland at the best price
To buy a high-tech and high-precision 3D scanner in Poland at the best price from an authorized Shining 3D representative, please contact the Center 3D Print store for help.
In the C3D store you will find/get:
- a wide range of 3D equipment and accessories,
- professional advice and assistance with the selection of scanning equipment for your requirements and tasks,
- free training on how to use the purchased equipment.
Contact us in any convenient way. We are always happy to help.
