- Stock: On request
- Model: FreeScan UE Pro
- Weight Brutto: 1.90kg
More from this brand

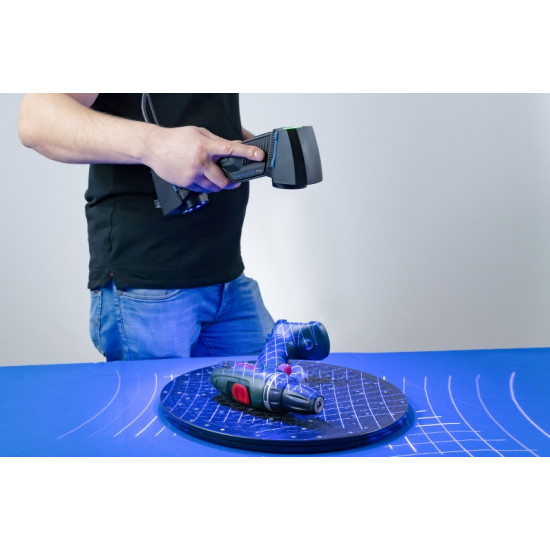

3D Scanner Shining 3D FreeScan EU Pro
High-precision professional 3D scanner FreeScan UE Pro from Shining 3D with the parameters of the received digital data that correspond to the metrological level.
FreeScan UE Pro is a complete, accurate and affordable set of hardware and software for design, management and quality control, inspection and analysis, adjustment and repair in the mechanical engineering, energy, oil and gas, automotive and aerospace industries, mold manufacturing and maintenance, production, etc.
FreeScan UE Pro scanner advantages
The excellent characteristics of the scanner allow you to work on a wide range of materials and applied tasks, as well as allow operation at low temperatures.
- High accuracy of received data.
- Ergonomic design, distance indicator and temperature sensor.
- Multifunctionality:
- the possibility of scanning dark and mirror surfaces.
- scanning complex geometry with "pockets" and deep pits.
- scanning of both large and small objects with one device.
- The ability to work at low minus temperatures up to -20 °C.
- Ability to convert data into a variety of data formats.
- Compatible with leading 3D inspection and CAD design software.
- Eye safety.
Metrological accuracy of measurements

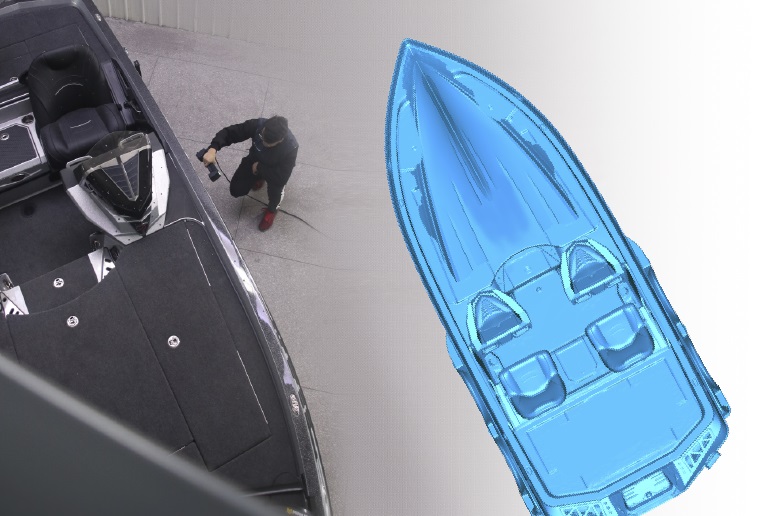

The accuracy of the received digital data up to 0.02 mm and the global control of the accuracy of measurements on large planes ensure consistent scanning results with high accuracy.

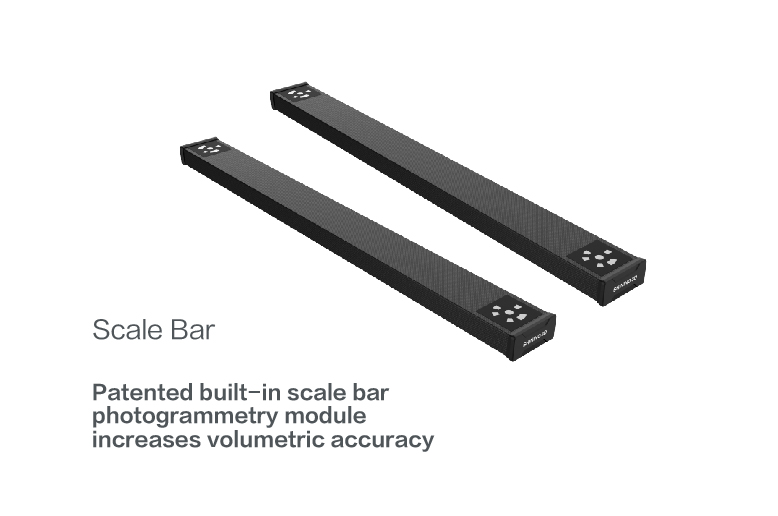

Global accuracy control
The integrated photogrammetry function does not require the use of coded targets, quickly fixes the spatial position of the target frame and increases the volumetric accuracy of measurements.

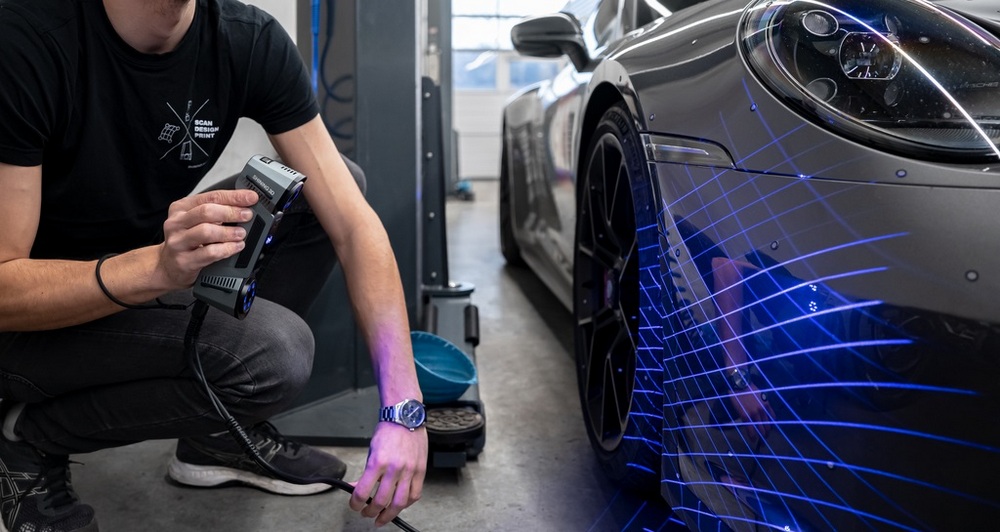

Multifunction scanner: scanning modes
FreeScan UE Pro scans in a multiple scanning modes, using a projection of 26, 5 or 1 blue laser lines and the integration of a photogrammetric module for global accuracy control in large-scale measurements.
| Scan mode | Multiple Lines Scan, Single Line Scan | Fine Scan |
| Light Source | 26 laser lines, 1 laser line | 5 parallel laser lines |
| Scanning accuracy | 0,02 mm | 0,01 mm |
| Scan distance | 300 mm | 200 mm |
| Volumetric accuracy | 0.02+0.03 mm/m (standard mode) | 0.02+0.015 mm/m (built-in photogrammetry mode) |

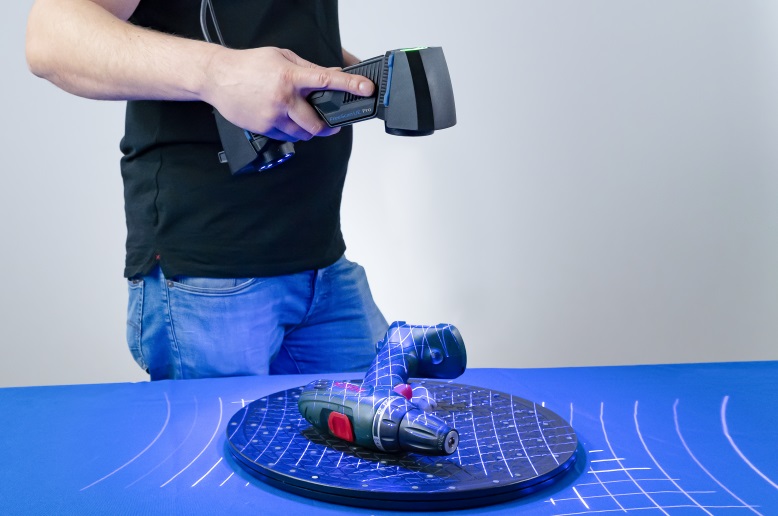

Ergonomic design and easy control
The scanner has a light and ergonomic design of the predecessor scanners of the UE series. User-friendly scanning software makes operation easy and reduces training time.

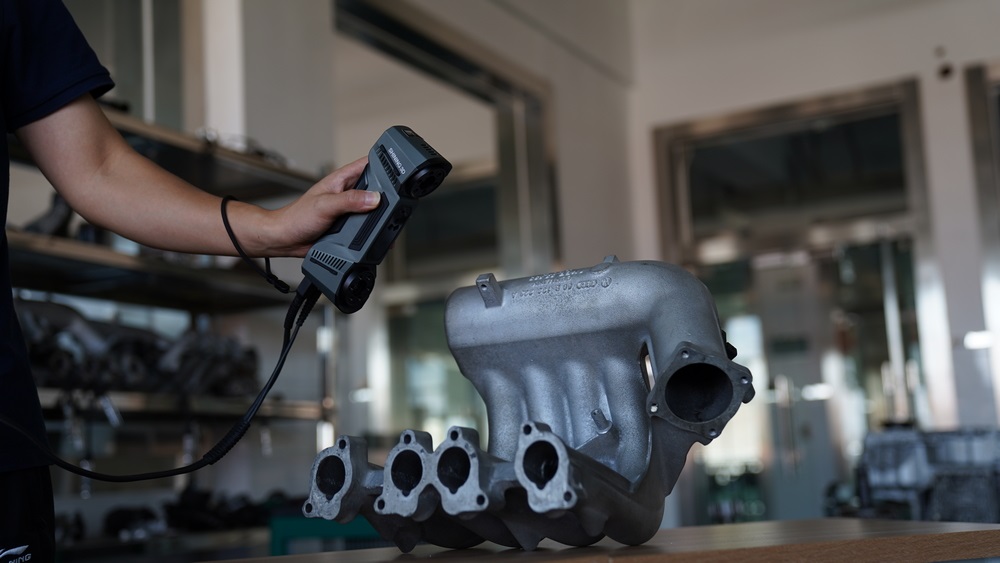

Scanning of various types of materials
The FreeScan UE Pro 3D scanner is capable of scanning black and highly reflective surfaces, as well as objects with complex geometry that have deep surface folds, holes, etc.

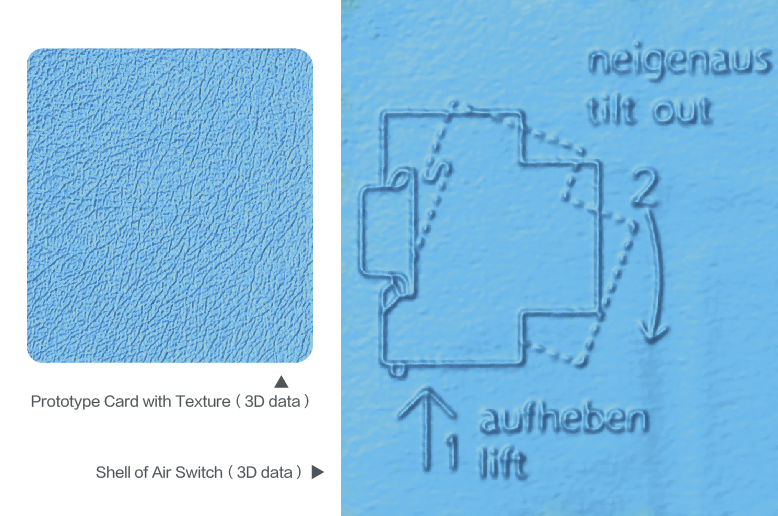

Fine and rich details
With higher resolution cameras and Fine Scan scanning mode, FreeScan UE Pro provides multi-functional scanning of objects and scans small details more precisely.
Compatibility with software for inspection and design
Scan data can be imported with one click into all standard 3D inspection and design applications such as Geomagic Control X, Geomagic Design X and Verisurf Inspect, improving workflow efficiency.
