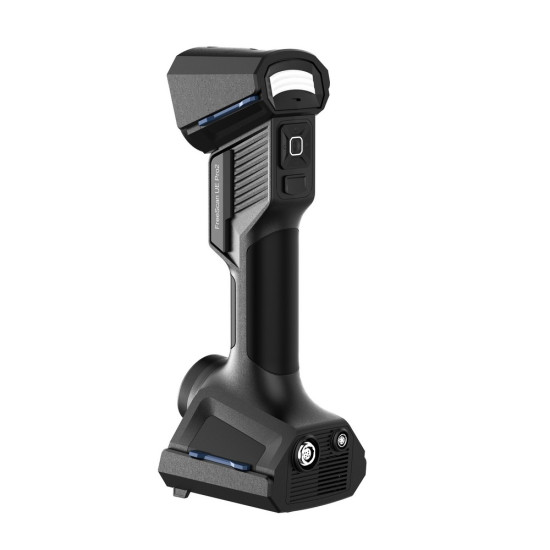

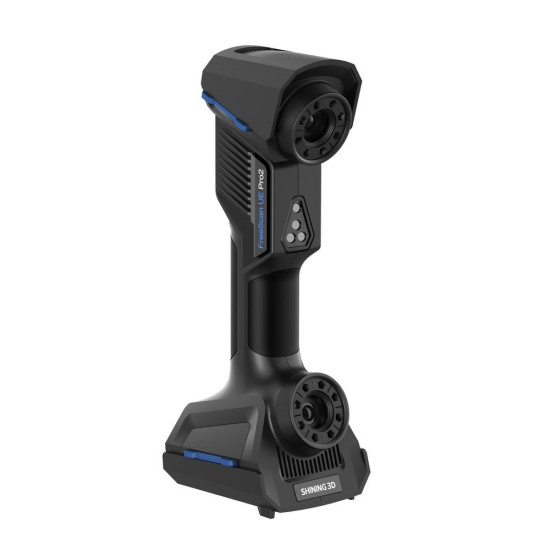

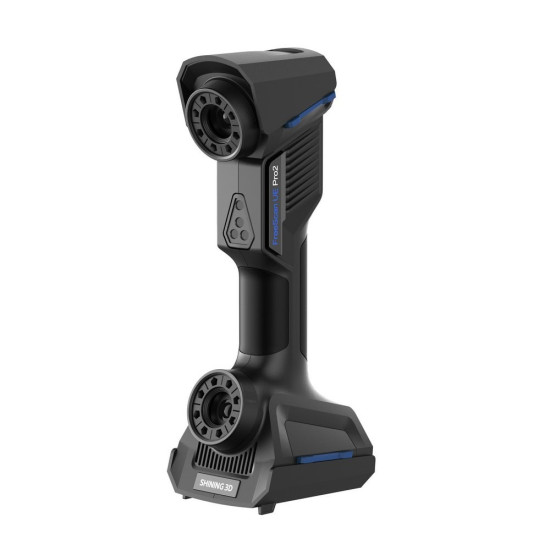

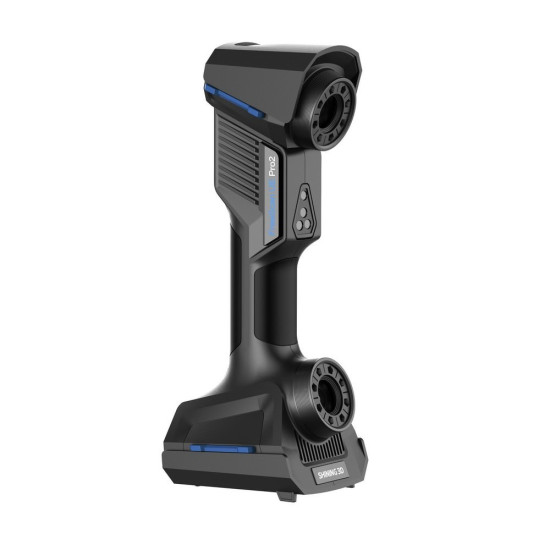

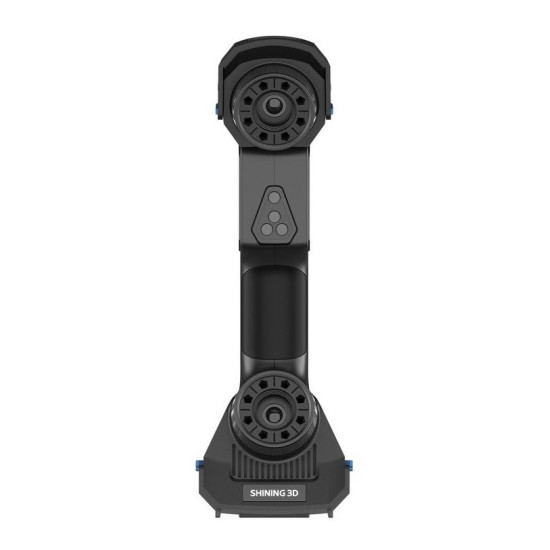

3D scanner SHINING 3D FreeScan UE Pro2

3D scanner SHINING 3D FreeScan UE Pro2

The SHINING 3D FreeScan UE Pro2 3D scanner features ultra-high speed. The maximum scanning speed is 3,460,000 points/s. The patented binocular photogrammetry technology allows maintaining high quality even at maximum scanning speed. Double speed, double performance with the same quality!

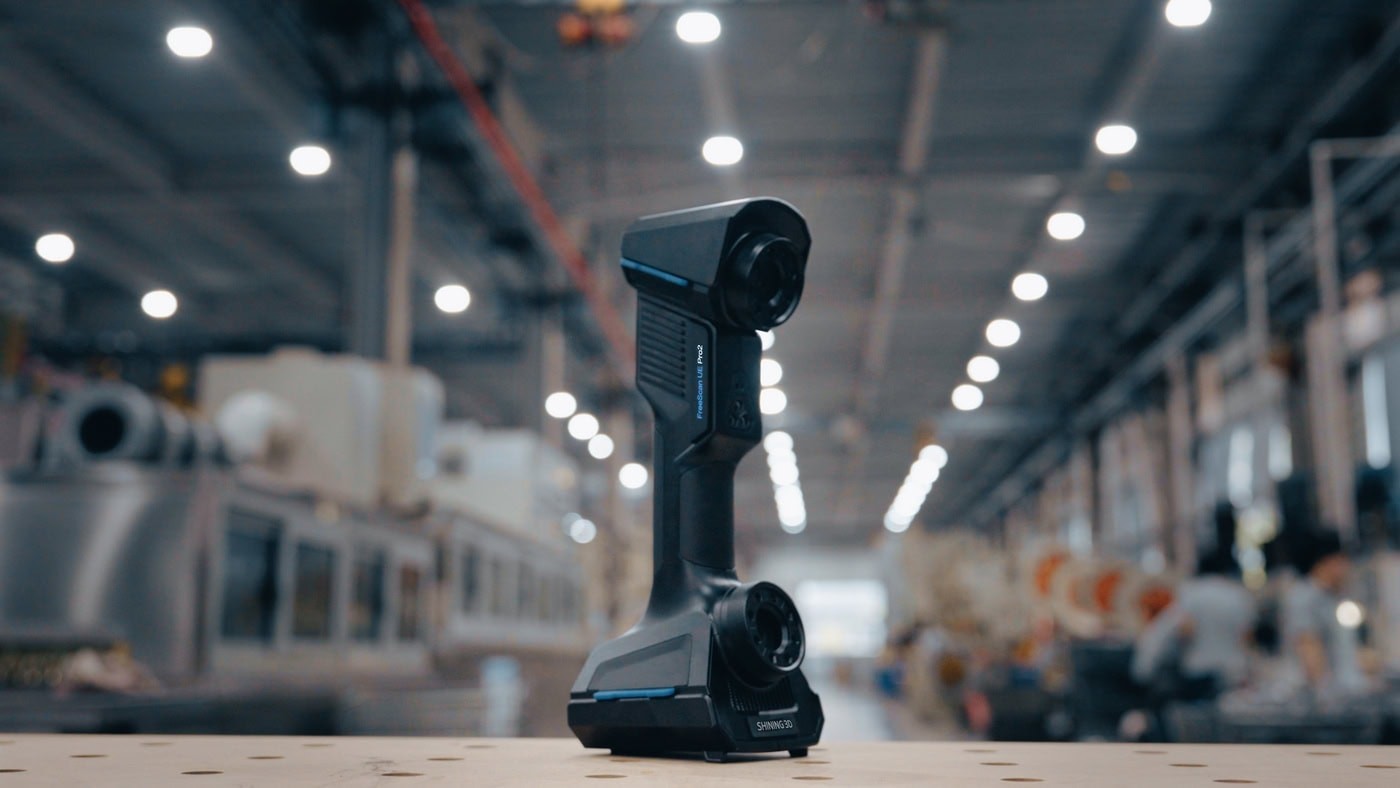

Works 2 times faster than most scanners!

Features and advantages of the FreeScan UE Pro2 model

• The SHINING 3D FreeScan UE Pro2 3D scanner – double speed and double performance.
• Ultra-fast scanning of parts of any size and complexity.
• Wireless portable power supply ensures ease and convenience of operation.
• Low weight of 950 allows comfortable scanning in any conditions.
• The 3D scanner can be used indoors and outdoors.
• Innovative binocular photogrammetry technology optimizes spatial positioning of markers.
• Thanks to the patented development in FreeScan UE Pro2, it is possible to maintain high scanning accuracy even for large-scale objects.

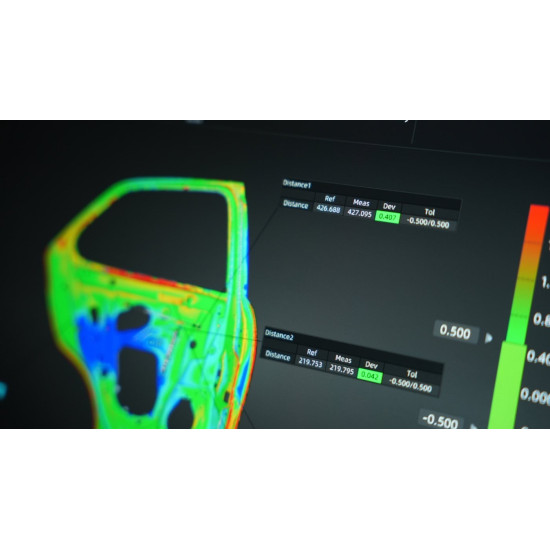

• Integrated inspection module allows you to check the accuracy of scanning on-site.
• Built-in computing module is responsible for fast data collection and processing.

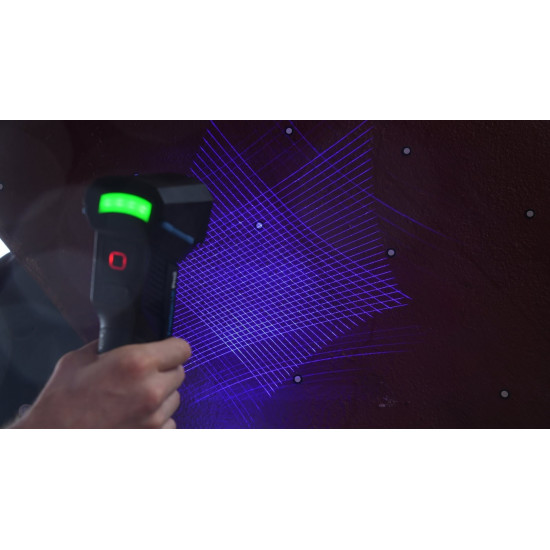

• Fast and smooth scanning is provided by 50 laser lines.
• Data collection speed is up to 180 frames per second, without loss of smoothness.
• High volumetric accuracy up to 0.02 + 0.015 mm/m using FreeScan UE Pro2 photogrammetry allows you to obtain constant global accuracy.
• The accuracy of measurement processes and calibration results is confirmed by the SHINING 3D accuracy laboratory in accordance with ISO 17025.
• FreeScan software provides full visualization of data quality, flexible resolution, individual scan template, display grid in real time.
• The PC for processing scanner data must have the following parameters: OS: Windows 11 Professional 22H2 (64-bit) Processor: 13th Gen Intel® Core™ i7-13700H or higher Graphics card: NVIDIA GeForce RTX 4060 Laptop GPU or higher Video. Memory: 8 GB or higher RAM: 64 GB or higher, dual-channel DDR5; USB 3.0 interface.

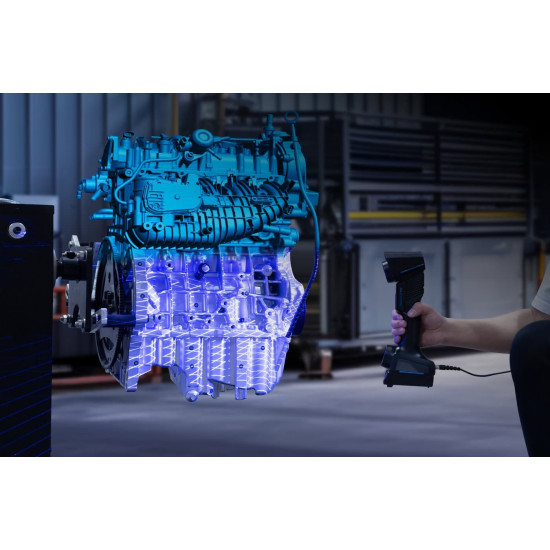

High speed even with large-scale objects

Fast scanning of an object sets the pace for the entire process, significantly increasing productivity. If you need high speed without losing accuracy, then the FreeScan UE Pro2 3D scanner is an ideal option. Thanks to the wireless design and light weight, the scanner can be used both indoors and outdoors.

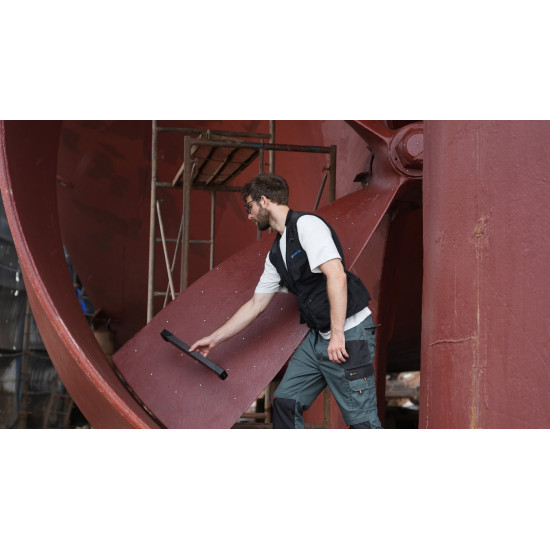

Simply scan complex parts

The developers of the device have set new standards of efficiency in the world of 3D metrology thanks to their own developments: patented binocular photogrammetry has opened up new possibilities for spatial positioning of markers. This is especially important for large objects, as well as small objects of complex shapes. The quality of the scan is checked directly on site, as the device has an integrated inspection module.

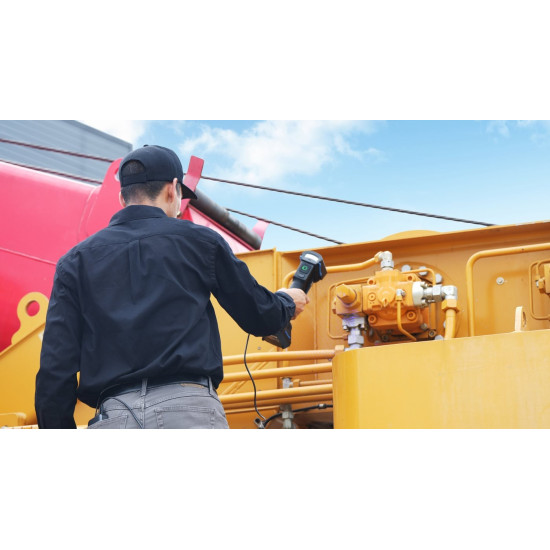

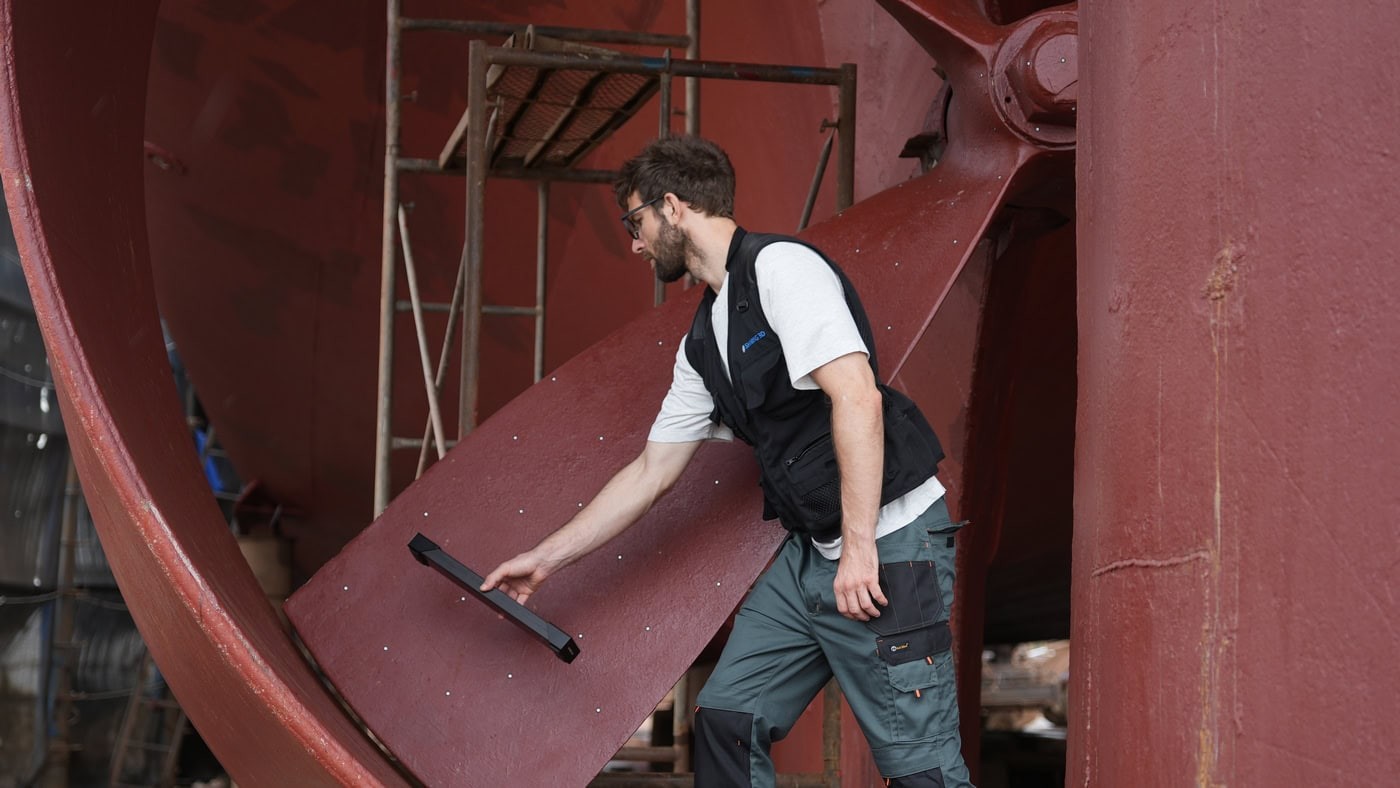

Wireless solution

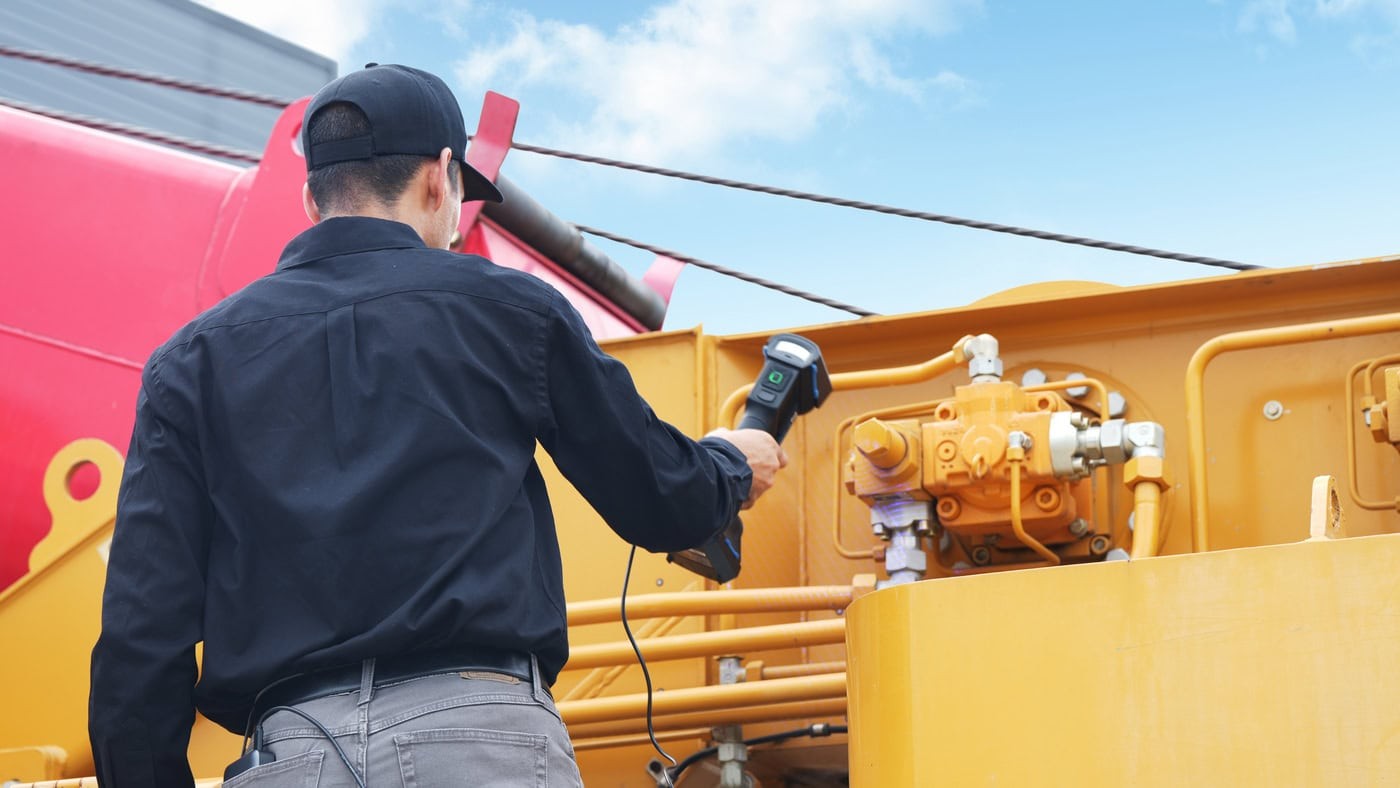

3D scanner FreeScan UE Pro2 is a modern approach to working with large industrial objects. When working with large-sized equipment, the ability to move freely is very valuable. It is very convenient when movement is not constrained by wires. Thanks to this, you can easily process an object even in the most inaccessible places.

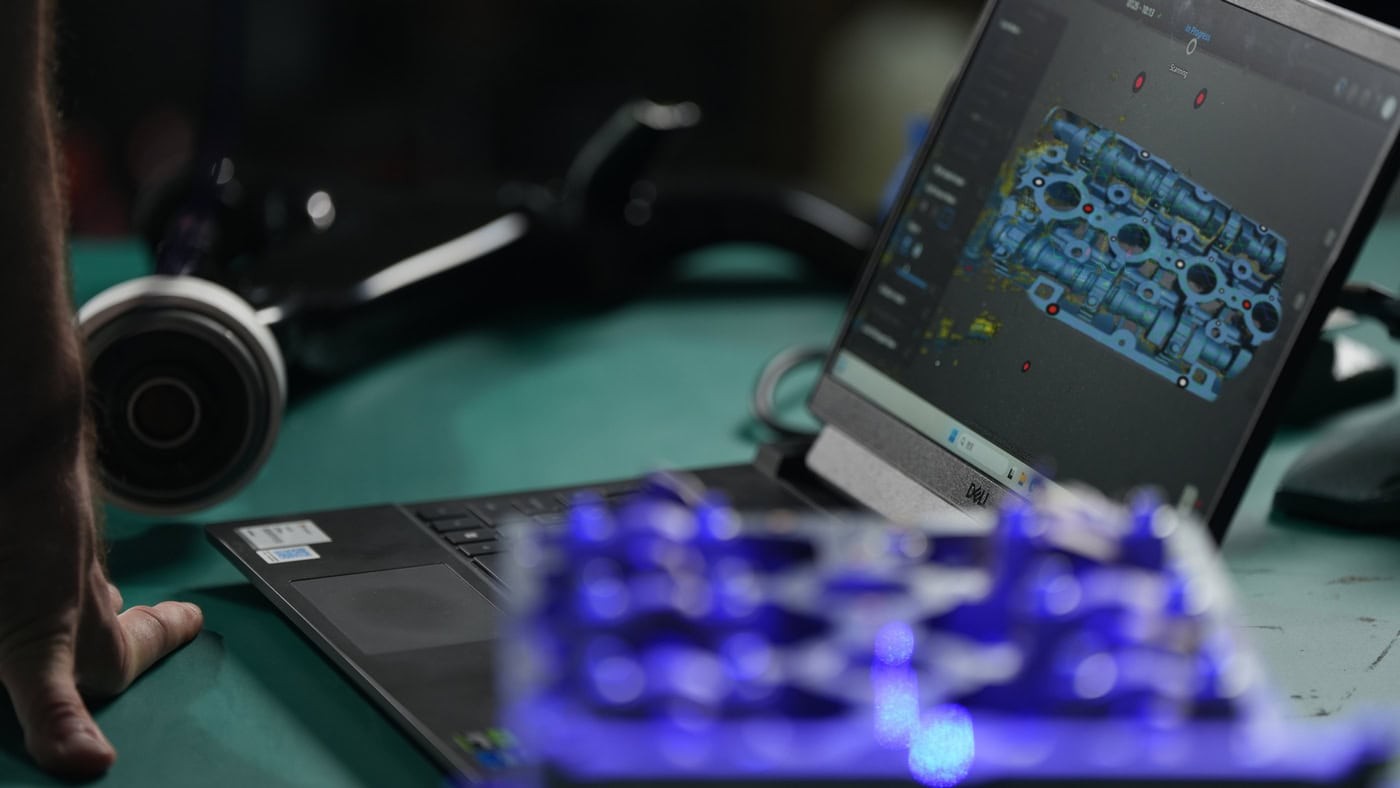

Visual visualization of data quality

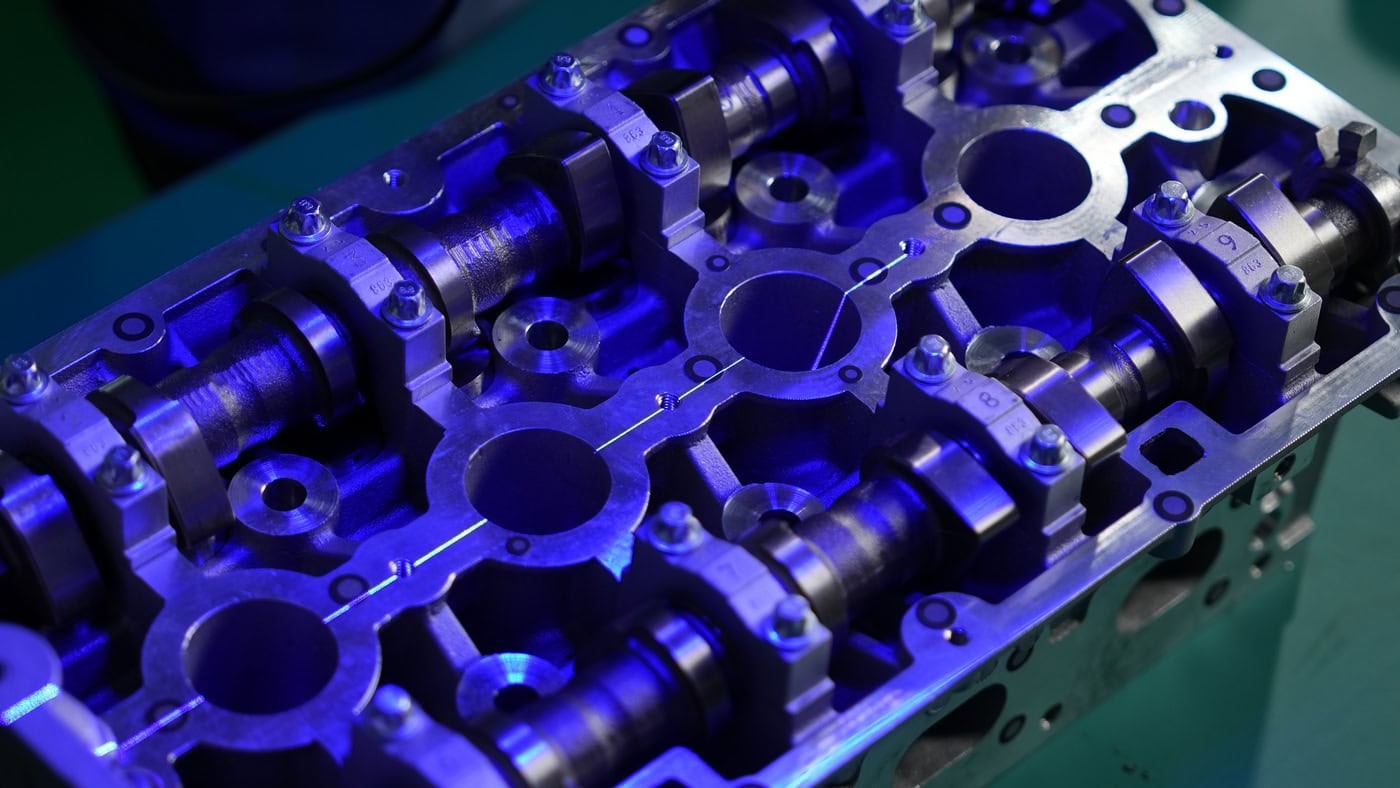

When scanning, it is important to maintain the distance, and the device implements control of this parameter by the color of the laser line or the LED indicator. The quality of the scan can be assessed using a mesh indicator in real time. Optimized software allows you to monitor the quality of the scan in real time. A high-quality scan will simplify 3D printing.

Where is the 3D scanner FreeScan UE Pro2 used?

• Power, heavy industry, utilities
• Engineering machinery, construction machinery, automobiles
