- Stock: In Stock
- Model: FreeScan Omni
- Weight Brutto: 1.30kg
More from this brand

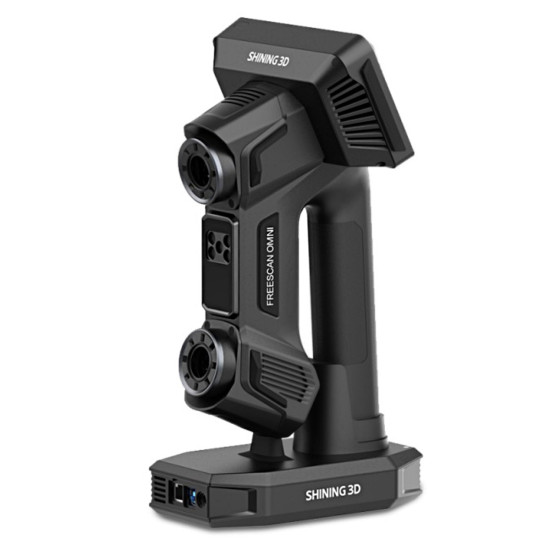

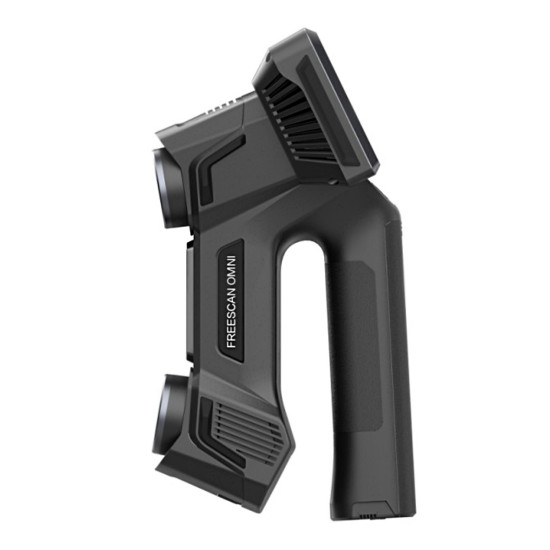

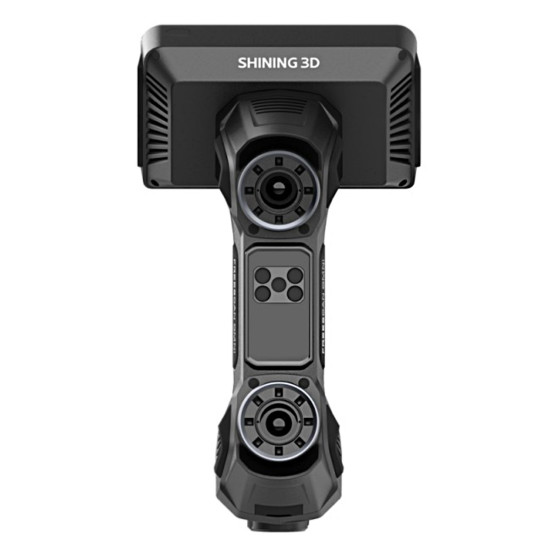

Shining 3D FreeScan Omni – Professional Metrology Control Tool
The FreeScan Omni 3D scanner from Shining 3D is an advanced professional solution for high-precision measurements that provides complete freedom of action. It is designed for engineers and metrologists who require accuracy up to 0.02 mm when working with objects of any size, including large-scale industrial products. The key feature of the FreeScan Omni model is its complete autonomy.

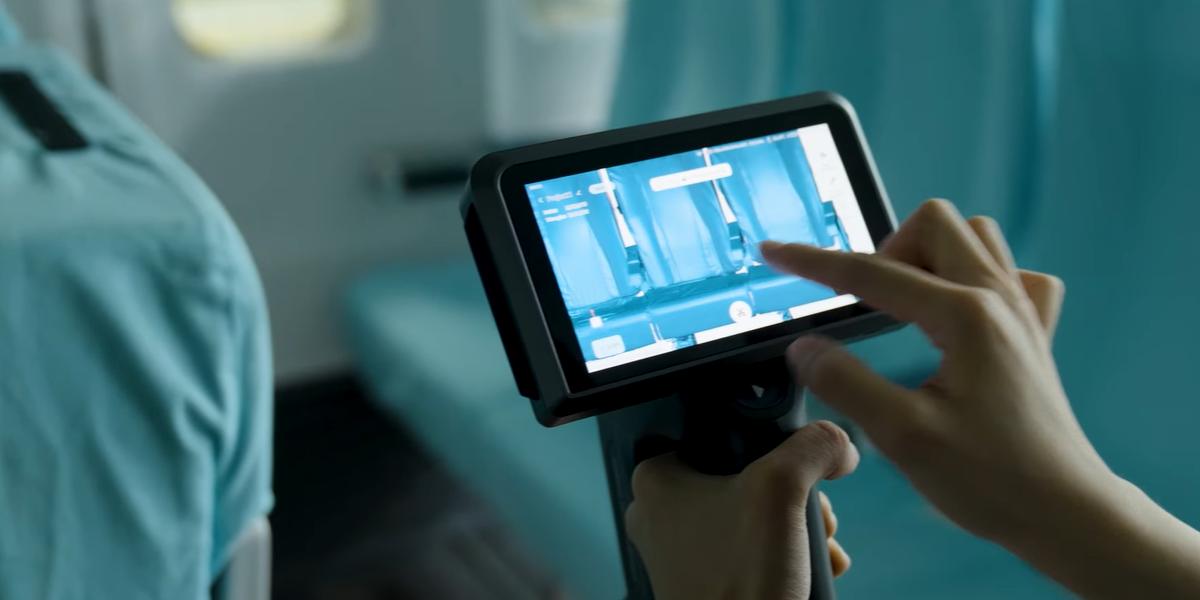

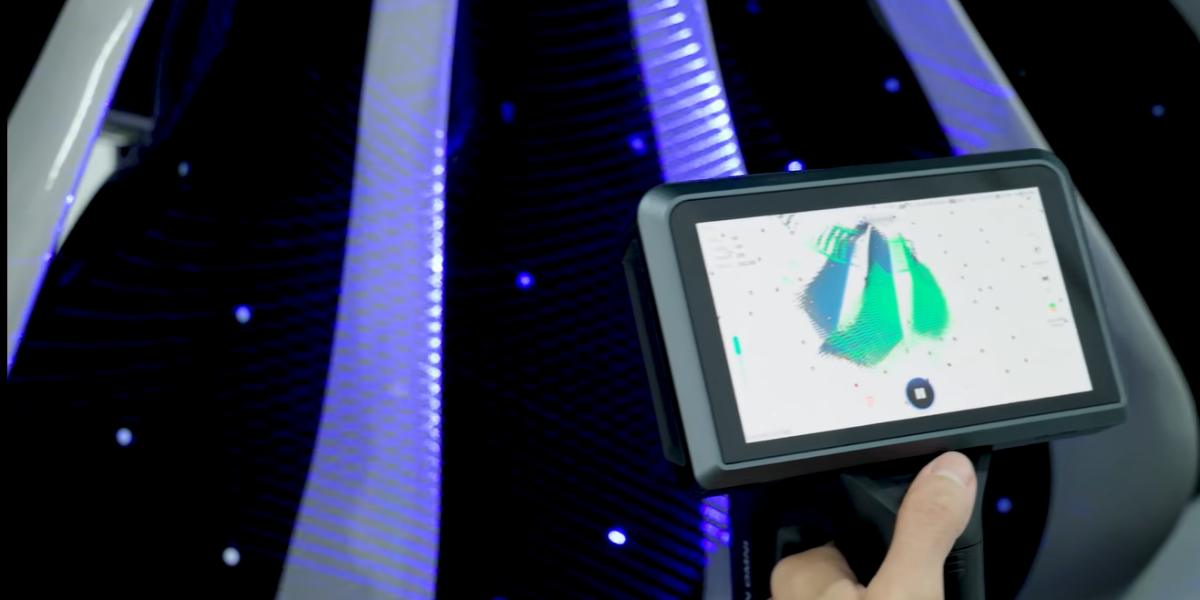

The device operates wirelessly and without direct connection to a laptop, functioning on the principle of "scanner plus computer" in one body. This integration, along with a record-breaking data collection speed (7,619,000 points per second), makes FreeScan Omni an indispensable assistant in the fields of quality control, reverse engineering, and additive manufacturing. The scanner is equipped with a built-in touchscreen, which simplifies the management of the scanning and analysis process, making it accessible to employees even without deep specialized training.
Technical Features of Freescan Omni
The Shining 3D FreeScan Omni professional 3D scanner combines the latest developments in optical measurement. It uses a hybrid technology, including a blue laser for ultra-precise detailing and infrared (IR) light for fast geometry capture. This combination allows for quick adaptation to the requirements of a specific task.
High Speed and Measurement Accuracy
The metrological class of FreeScan Omni is confirmed by compliance with the VDI/VDE 2634-3 standard, which guarantees the high reliability of the results obtained. The measurement accuracy in multi-line scanning mode reaches an impressive 0.02 mm. The maximum data collection speed of 7,619,000 points per second allows for instantaneously obtaining a complete picture of the object, which is critically important for reducing production cycle time. A large scanning area and high data mesh density ensure the capture of the smallest surface features without compromising overall performance.
Integrated 2-in-1 System and Complete Autonomy

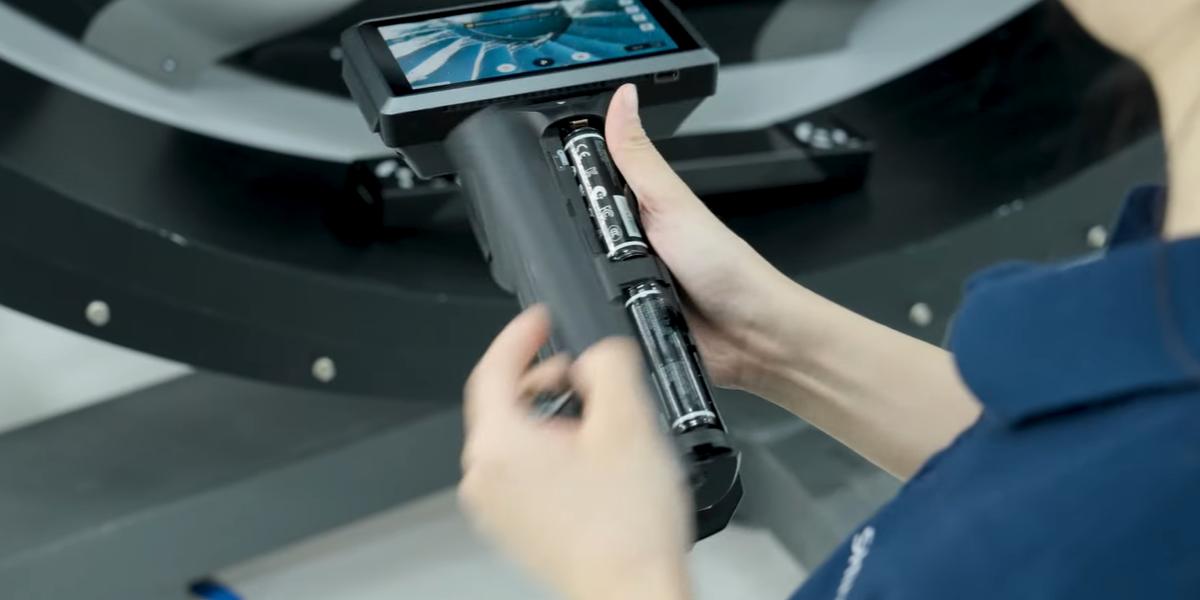

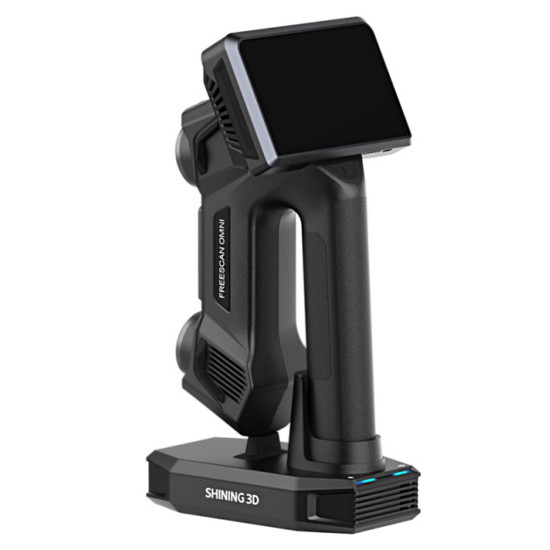

FreeScan Omni is designed for maximum mobility. Thanks to its built-in computing power, it performs all stages—from scanning and mesh generation to checking and report formation—directly on the device. The presence of easily and quickly replaceable removable battery packs eliminates downtime, ensuring the continuity of the scanning process in the field or on the production floor. The power supply kit and Wi-Fi module are integrated into a convenient docking station.
Unique Videophotogrammetry Technology (VPG)
The FreeScan Omni scanner is equipped with patented videophotogrammetry (VPG) technology from Shining 3D. This function is integrated into the device and is designed to eliminate the need for coded markers when scanning large-sized objects. VPG ensures stable volume measurement accuracy in large spaces and significantly simplifies the setup process. This substantially accelerates the workflow, eliminating the routine and lengthy procedure of gluing many markers.
Flexible Scanning Modes for Any Task

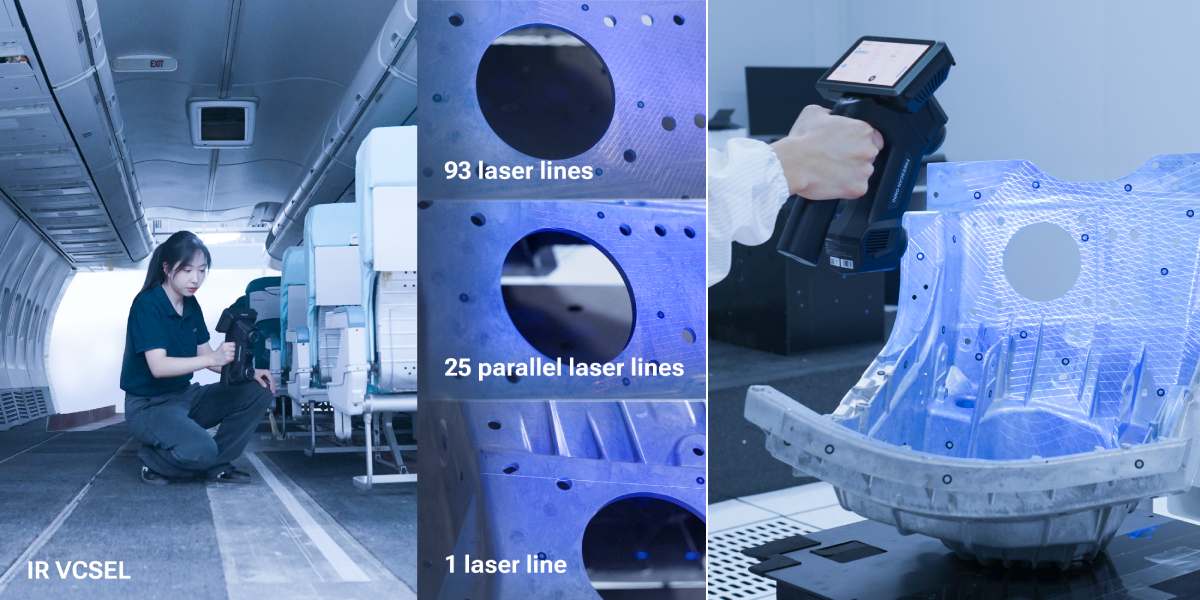

The adaptability of FreeScan Omni is provided by four different scanning modes, each optimal for its type of surface and detailing requirements.

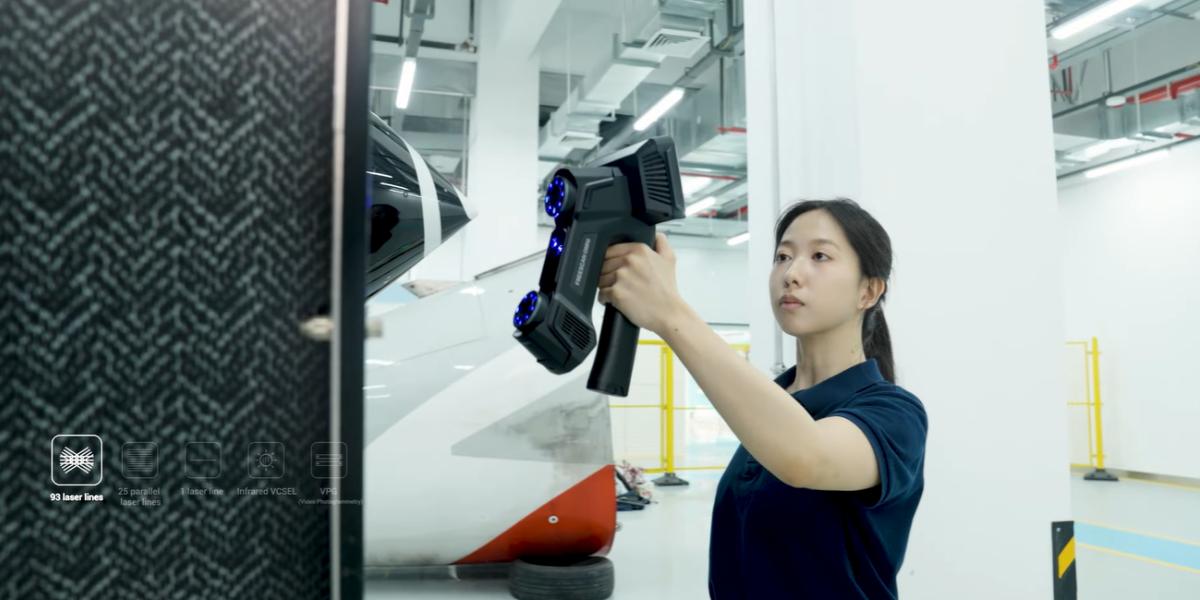

93 Blue Lines Mode: for a quick overview
This mode activates 93 parallel blue laser lines, providing the highest scanning speed. It is ideal for quickly obtaining the general geometry of an object and primary assessment, as well as for scanning large, uncomplicated surfaces.
25 Blue Lines Mode: for maximum detailing
This mode uses 25 parallel laser lines and is intended for capturing the smallest features and complex surface elements with exceptional accuracy. It is used when high data density and maximum detail are critically important, for example, in the reverse engineering of high-precision molds.
Single Line Mode: for complex geometries and deep pockets
A special mode using a single laser line guarantees impeccable measurement quality even in the most difficult-to-reach places, deep holes, pockets, and narrow grooves. It provides reliable data capture where multi-line modes may fail.
Infrared Markerless Scanning: Speeding up the Process
The IR mode allows for operational measurements without the use of laser markers. This significantly accelerates the workflow and optimizes production operations, especially when quick data collection is required from large, uniform surfaces where marker installation is impractical or impossible.
Freescan Software: Quality Control and Automation
The built-in FreeScan software, which is a key element of the ecosystem, is supplied with the scanner. It is certified by PTB (Physikalisch-Technische Bundesanstalt), which confirms its compliance with the strictest metrological standards.

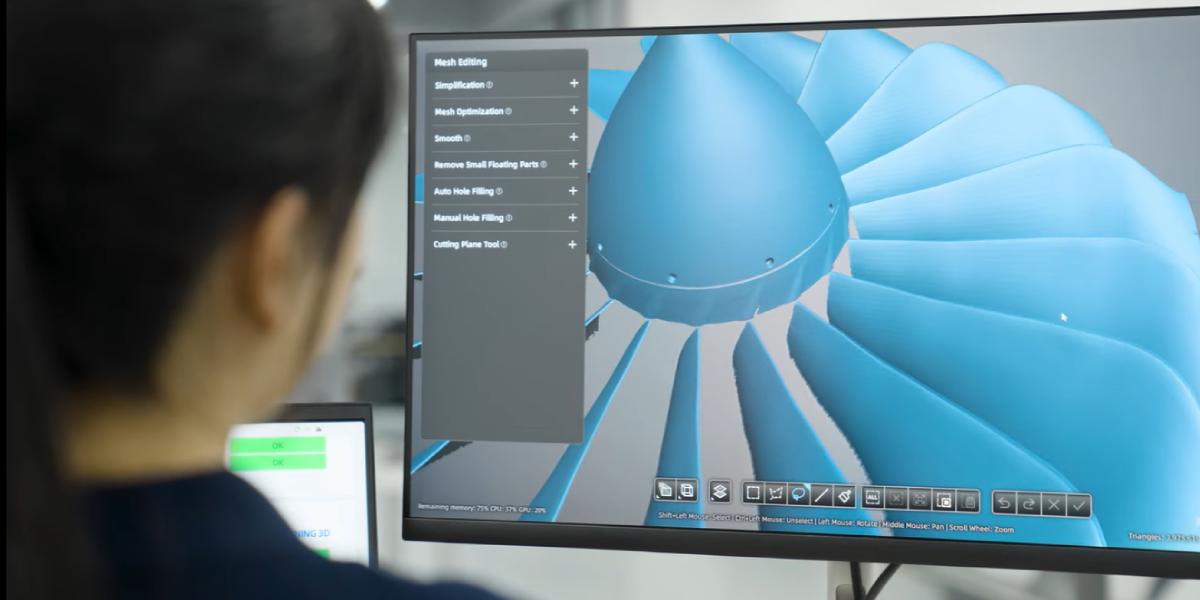

The intuitive interface and pre-installed templates allow employees working with the equipment to simply scan the part and instantly receive ready reports. The system automatically analyzes the scanned data, comparing it with the reference CAD model. This simplifies the quality control process and makes it accessible to a wide range of specialists. A function for easy creation and export of reports is provided.
In addition, through the FreeScan software, it is possible to send a request to the Shining 3D team for reverse engineering.
Benefits for Users: Why FreeScan Omni?
The use of FreeScan Omni gives engineers and manufacturing specialists a number of undeniable advantages:
- Reduced inspection time: high scanning speed and automated checking allow quality control to be performed significantly faster than traditional contact methods.
- Minimization of errors: metrological accuracy up to 0.02 mm and built-in videophotogrammetry guarantee the reliability and repeatability of results, reducing the likelihood of human error.
- Ease of use: thanks to the intuitive interface and the "scanner plus computer" principle, personnel training takes minimal time.
- Freedom of movement: wireless operation and easily replaceable batteries ensure unrestricted scanning on any production floor.
- Expert results: certified software (PTB) guarantees that the obtained data are suitable for use in the most critical metrological tasks.
Areas of Application: Where FreeScan Omni Reveals Its Potential
The high-precision and mobile FreeScan Omni is a versatile tool whose feasibility of application has been proven in a wide range of industrial and engineering sectors:
- Automotive and aerospace industries: geometry control of body parts, engine assemblies, inspection of large-sized components with high accuracy.
- Mechanical engineering and heavy industry: reverse engineering of complex mechanisms, quality control of casting, stamping, and large-sized equipment.
- Mold and foundry production: high-precision analysis of mold geometry, rapid adjustment of tooling.
- Metrology and Quality Control (QC): accurate comparison of the actual geometry of the part with the CAD model, creation of detailed compliance reports.
- Additive Manufacturing (3D Printing): Checking finished parts after printing for shrinkage and deviations from the original model.
- Cultural Heritage and Art: digitization of artifacts and large sculptures with a high level of detail.
FreeScan Omni is a comprehensive solution that ensures accurate metrological control and reverse engineering, simplifying workflows and increasing production efficiency.
You can independently choose a professional 3D scanner for specific tasks on the website, in the 3D scanners category, or by phone. Our managers will select equipment for specific tasks without overpayments – call us!
