Shining 3D FreeScan Combo+ Wireless Optical System

Precise 3D Scanning Without Constant Cable Connection

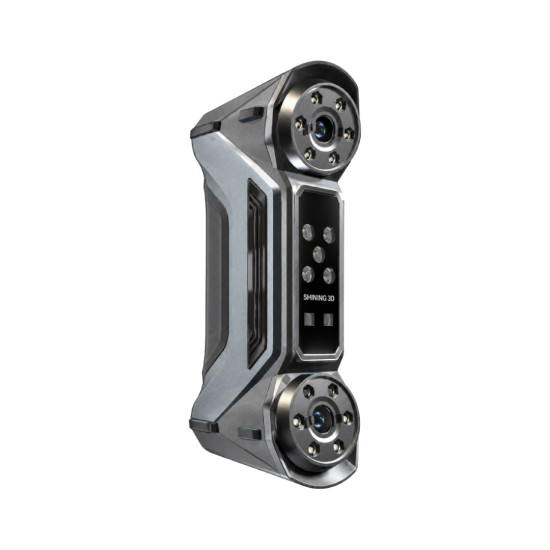

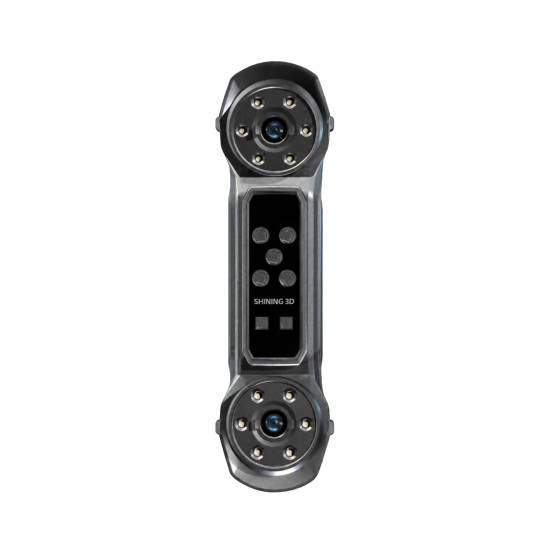

SHINING 3D FreeScan Combo+ Wireless is a wireless handheld 3D scanner for precise measurement, digitization, and geometry control of parts. The model supports Wi-Fi 7, five scanning modes, and VPG technology, which allows efficient work with large objects. The scanning speed reaches 9,106,000 points/s, enabling quick acquisition of detailed three-dimensional data. FreeScan Combo+ Wireless is suitable for dimension and shape verification, quality control, and reverse engineering, as well as scanning large objects and areas with complex geometry. The scanner is aimed at professional use in the automotive industry, heavy industry, transportation, and energy.

Main Advantages of FreeScan Combo+ Wireless

• Freedom of movement during measurement. Wireless connection allows free movement around parts and work in a production environment without a cable between the scanner and the computer. Wi-Fi 7 with interference protection technology is used for stable data transmission.
• High speed of obtaining 3D data. High-speed digitization reduces work time with large surfaces and objects with complex geometry. In this mode, the scanner uses 93 laser lines, operates at up to 180 frames/s, and captures up to 9,106,000 points/s.
• Accurate metrological measurements. The obtained 3D data can be used for inspection, dimension verification, and geometry control of parts. Scanning accuracy reaches 0.02 mm, and volumetric accuracy is 0.02 mm + 0.03 mm/m.
• Stable accuracy on large parts. VPG technology helps reduce error accumulation when scanning large objects. The system corrects the spatial position of reference markers during measurement, ensuring volumetric accuracy up to 0.02 mm + 0.015 mm/m.
• Five modes for different tasks. One scanner can be used for quick capture of large surfaces, detailed digitization, deep hole measurement, and work with large objects. Available modes include 93 laser lines, 25 parallel laser lines, 1 laser line, VPG technology, and infrared scanning.

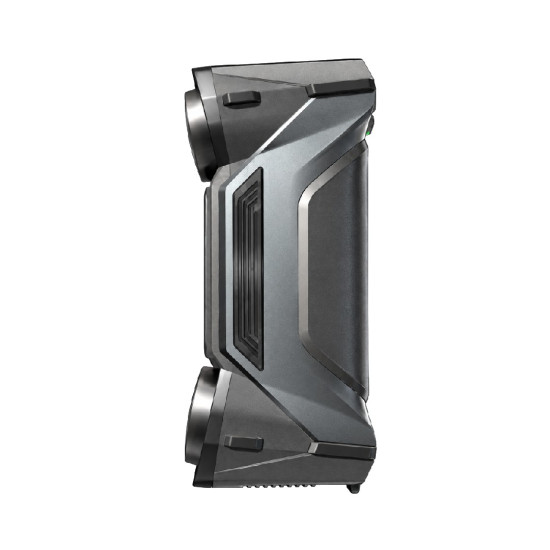

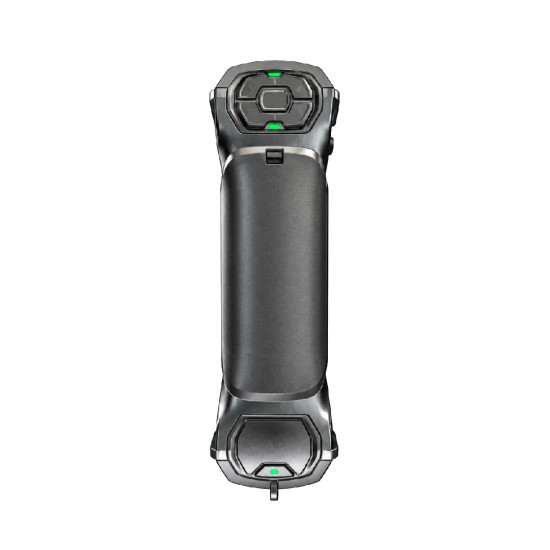

• Convenient scanning of hard-to-reach areas. The compact and lightweight body makes it easier to position the scanner near complex structures, inside recesses, and in limited workspace conditions.

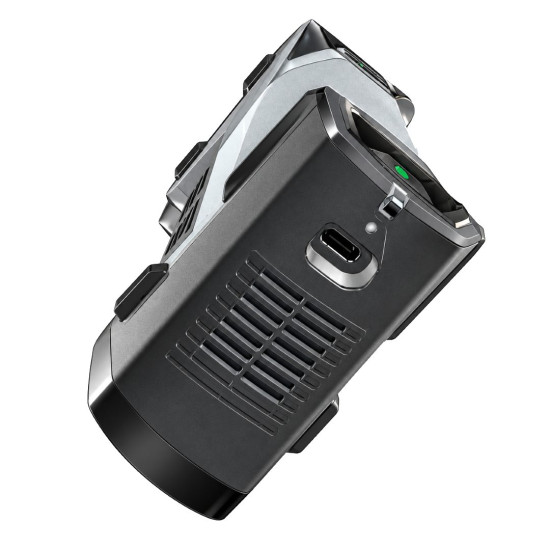

• Up to 2 hours of autonomous scanning. The battery provides up to 2 hours of continuous operation without cable power connection. The charging station simplifies charging and preparation of a spare battery for the next scanning session.

Wi-Fi 7 and Wireless Data Transmission

FreeScan Combo+ Wireless transmits data via Wi-Fi 7. Interference protection helps maintain a stable connection in production facilities and open areas. The scanner also supports USB 3.0. The absence of a constant cable makes it easier to scan large parts. The operator can change position and move around the object during operation.

Accuracy of FreeScan Combo+ Wireless

The scanner's accuracy is 0.02 mm. Volumetric accuracy is 0.02 mm + 0.03 mm/m, and when working with VPG, it is 0.02 mm + 0.015 mm/m. Systems are calibrated in the SHINING 3D laboratory accredited by CNAS in accordance with ISO 17025. Accuracy verification is conducted according to ISO 10360.

VPG for Working with Large Objects

VPG helps maintain accuracy when scanning large parts. The system refines the position of markers during operation, helping to reduce error over long distances. When using VPG, volumetric accuracy is 0.02 mm + 0.015 mm/m.

Fast Scanning of Large Surfaces

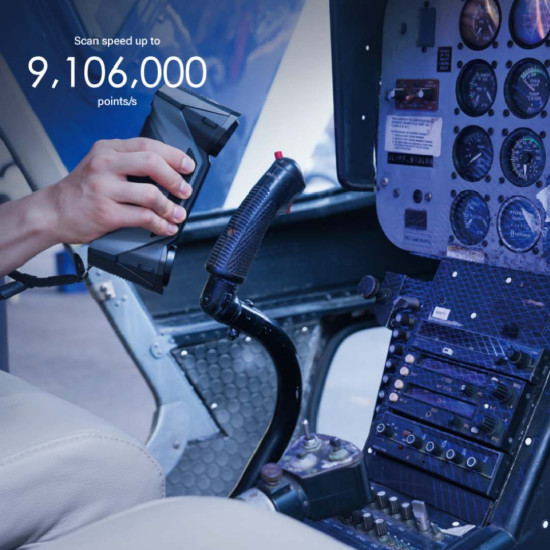

FreeScan Combo+ Wireless uses 93 laser lines in high-speed mode. The maximum speed is 9,106,000 points/s, allowing the scanner to quickly collect data from the surface of the part.

A frequency of up to 180 frames/s helps maintain stable scanning while the device is in motion. The model can be used for complex surfaces, deep holes, narrow slots, and large parts. The result is displayed on the screen in real-time.

Five Scanning Modes

• 93 laser lines for fast scanning. The mode is designed for quick data collection from the surface.
• 25 parallel laser lines for detailed scanning. Suitable for areas where the surface shape needs to be better conveyed.
• 1 laser line for deep recesses. Helps scan deep holes and narrow places.
• VPG for large parts. Helps maintain accuracy when working with large objects.
• IR Rapid Scan. Infrared mode with VCSEL designed for fast scanning.

Working with Complex Surfaces

FreeScan Combo+ Wireless allows selecting a mode depending on the shape of the part. For deep holes and narrow areas, the mode with one laser line can be used, and for areas where more surface detail is needed, the mode with 25 parallel lines. The lightweight and compact body simplifies work in places where space for moving the scanner is limited.

SHINING3D Inspect for Result Verification

SHINING3D Inspect is designed for working with obtained 3D data. The program allows verifying dimensions, finding deviations, comparing results, and creating reports. During scanning, the 3D mesh is displayed in real-time. The program also helps recognize holes and slots, adjust mesh detail depending on the surface shape, and control the quality of the obtained data.

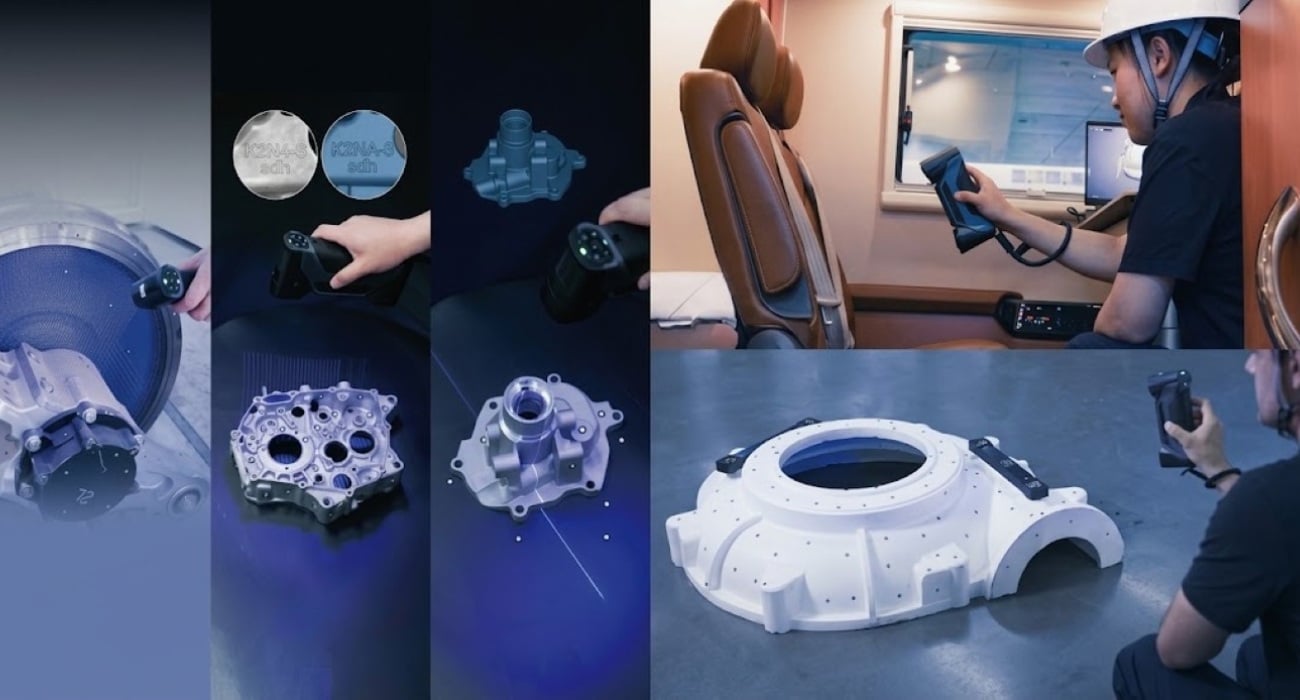

Where to Use FreeScan Combo+ Wireless

FreeScan Combo+ Wireless is suitable for:

• Metrology. Verification of geometry, dimensions, and shape of parts and their compliance with specified parameters.
• Quality control. Detection of deviations and defects during production and inspection of finished products.
• Reverse engineering. Creating accurate digital 3D models based on physical objects for further design or reproduction.

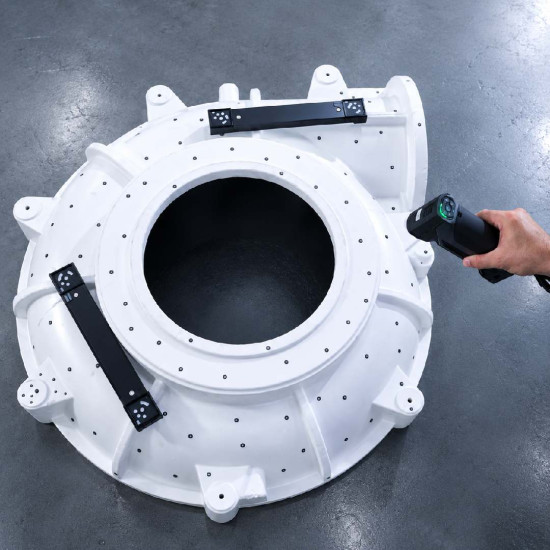

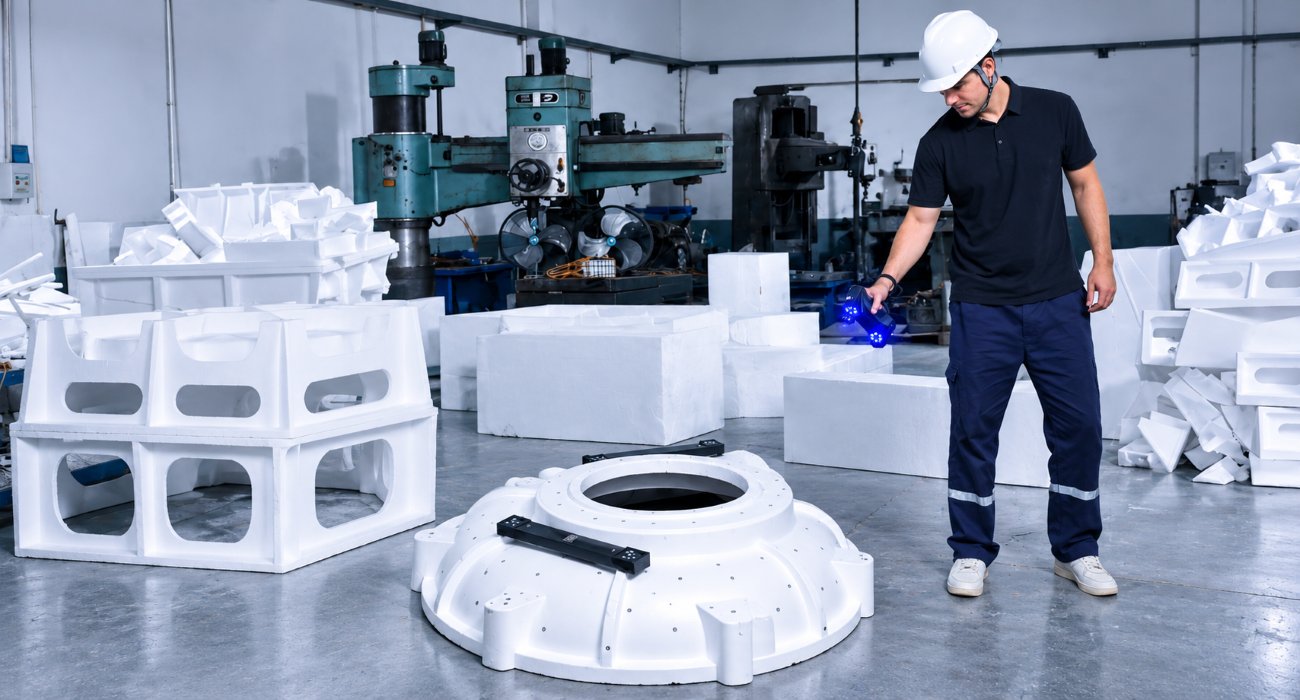

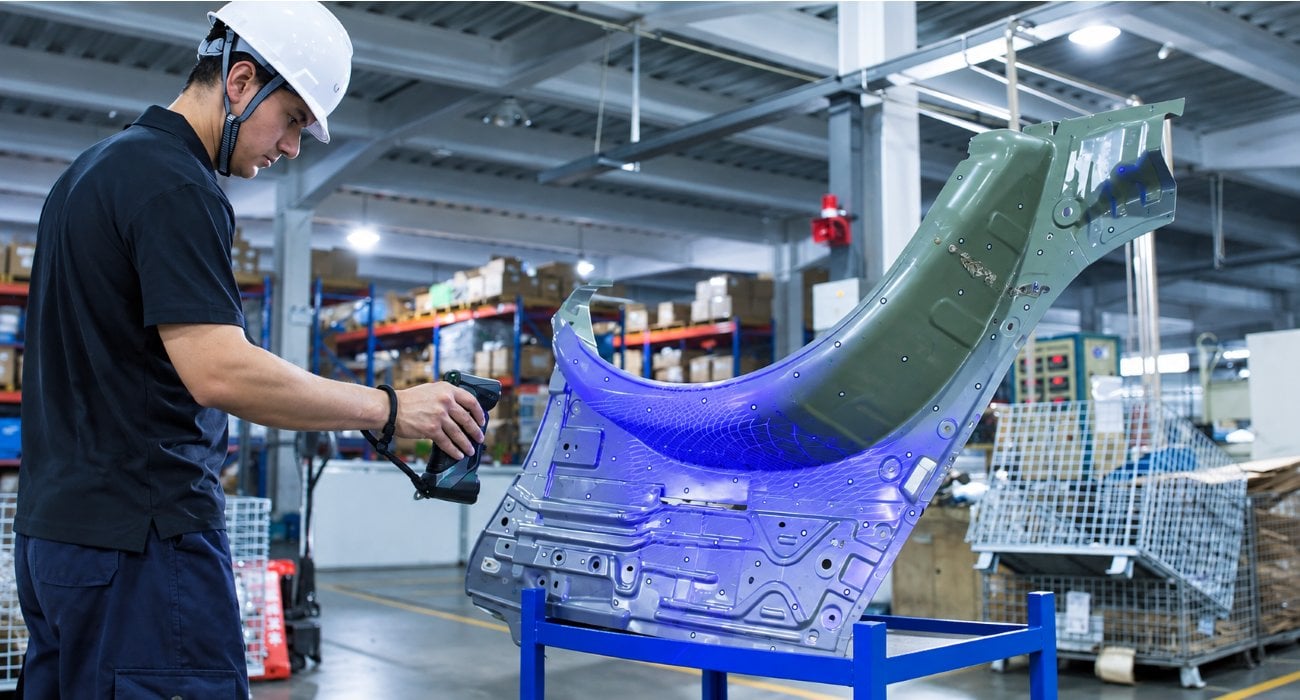

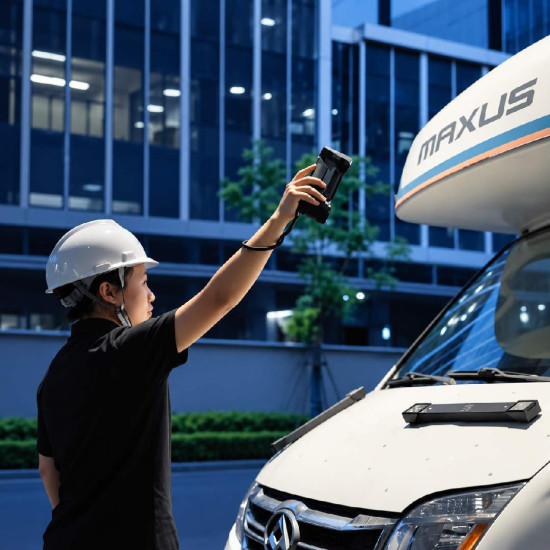

• Large objects. Digitization of large parts, structures, and assemblies without cable restriction.
• Complex geometry. Scanning deep holes, recesses, narrow areas, and other hard-to-reach elements.

The scanner can be used in the automotive industry, heavy industry, transportation, and energy.

Technical Specifications of SHINING 3D FreeScan Combo+ Wireless

Scanning Parameters

Connection and Operating Conditions

System Requirements

Order SHINING 3D FreeScan Combo+ Wireless

SHINING 3D FreeScan Combo+ Wireless can be used for precise scanning of parts, dimension and shape verification, quality control, and reverse engineering. We will help select the configuration, consult on the capabilities of SHINING 3D FreeScan Combo+ Wireless, and delivery conditions.
