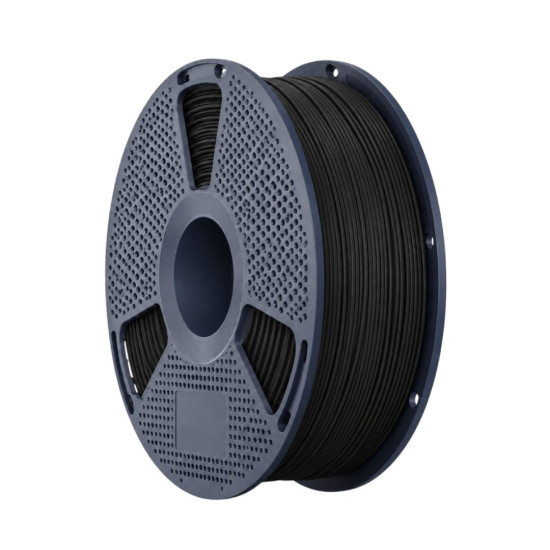

PETG Matte HS Plastic KLEMA 1.75 mm 1 kg Black for High-Speed 3D Printing with Matte Surface
PETG Matte HS Plastic KLEMA 1.75 mm 1 kg Black is a thermoplastic filament for FDM 3D printing of functional parts, prototypes, and decorative items. The material combines the ability for high-speed printing, matte texture, and mechanical strength. Thanks to improved melt flow, PETG Matte HS allows for reduced manufacturing time of parts, and reduced warping tendency helps maintain their geometry during cooling.
Material Advantages
- High-speed part manufacturing. Improved melt flow contributes to stable material feed at increased speeds, allowing for reduced prototype and batch production time.
- Uniform matte surface. Reduced gloss and less visible layer lines enhance the appearance of models, casing elements, and decorative parts.
- Mechanical strength. The material is suitable for manufacturing functional components, whose characteristics can be considered during design based on the tensile and flexural strength indicators provided in the table.
- Low deformation tendency. Reducing the risk of warping during cooling helps maintain the geometry of finished products.
Features of 3D Printing with PETG Matte HS
For high-speed operation, it is important to correctly set the nozzle temperature and ensure sufficient performance of the filament feed and melting system. If the material does not fully melt, it can worsen layer formation and the quality of the finished part. Recommended printing parameters are provided in the specification table.
For printing, a textured PEI platform can be used without additional adhesive. The need to prepare other work surfaces depends on their type and recommendations for a specific 3D printer.
When working with the material, model cooling is provided. Retraction parameters can be adjusted considering the extruder design, printing speed, and part geometry.
Recommendations for Drying and Storage
PETG Matte HS is recommended to be dried before use, as moisture absorption can negatively affect print stability and the surface quality of finished parts. The recommended drying temperature is 60–65 °C.
For long printing sessions, it is advisable to protect the material from moisture throughout the process. Between uses, the filament is recommended to be stored in airtight packaging with a desiccant.

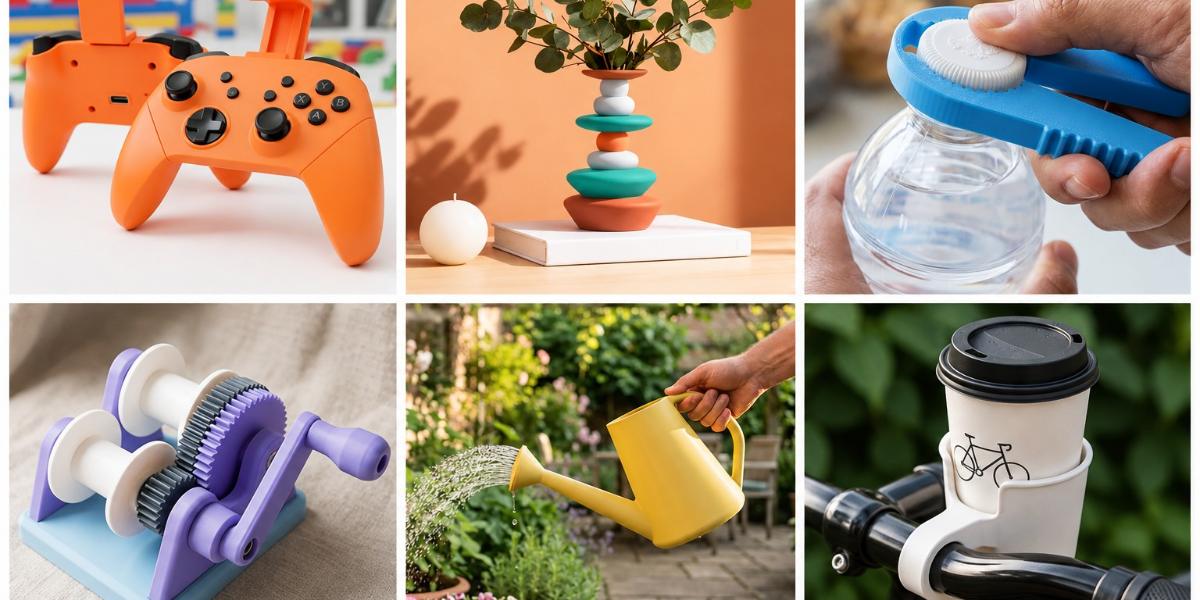

Applications
- Functional prototypes and technical parts. Manufacturing of test samples, enclosures, and structural components for checking geometry, assembly, and product functionality.

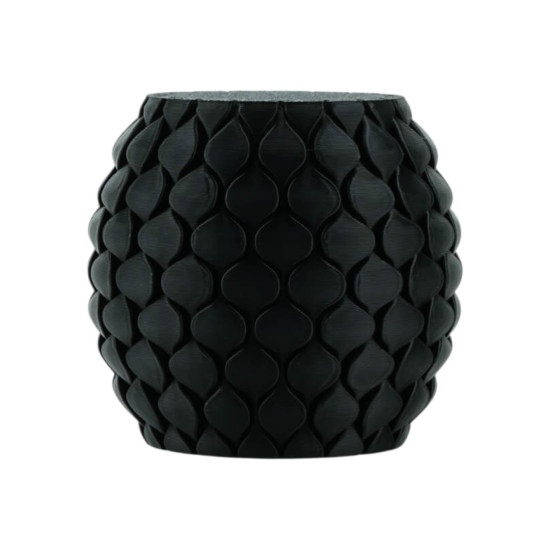

- Decorative items and models. Creating figurines, accessories, decorative items, and demonstration models with a matte surface.
- Lighting equipment elements. Manufacturing of enclosures and decorative components of lamps, where uniform texture and low surface gloss are important.
Physical and Thermal Characteristics
| Parameter | Value |
| Material Type | PETG Matte HS |
| Density | 1.28 g/cm³ |
| Heat Deflection Temperature (0.45 MPa) | 70 °C |
| Melt Flow Index (210 °C, 2.16 kg) | 4.4 g/10 min |
Mechanical Characteristics
| Parameter | Value |
| Tensile Strength | 46 MPa |
| Elongation at Break | 14 % |
| Flexural Strength | 75 MPa |
| Flexural Modulus | 2,650 MPa |
| Izod Impact Strength, Notched | 3 kJ/m² |
3D Printing Parameters
| Parameter | Value |
| Printing Technology | FDM/FFF |
| Filament Diameter | 1.75 mm |
| Diameter Tolerance | ±0.02 mm |
| Filament Weight | 1 kg |
| Nozzle Temperature | 240–260 °C |
| Recommended Printing Speed | Up to 400 mm/s |
| Platform Temperature | 70–80 °C |
| Cooling | Enabled |
| Raft Gap | 0.2–0.4 mm |
| Retraction Distance | 0.8–1.2 mm |
| Retraction Speed | 30–40 mm/s |
| Drying Temperature | 60–65 °C |
Buy PETG Matte HS Plastic KLEMA in Our Store
To clarify the compatibility of the material with your 3D printer, select high-speed printing parameters, or determine if PETG Matte HS is suitable for manufacturing a specific part, contact our managers.
