Formlabs Form Studio Wash+Cure

Device for Washing and Curing Form Studio Wash+Cure

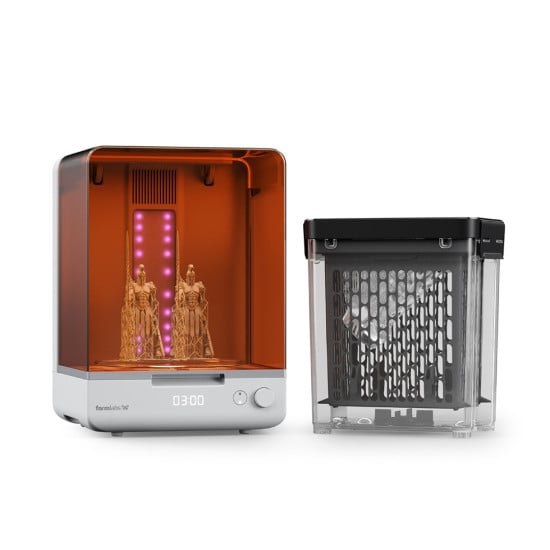

The compact universal device Form Studio Wash+Cure combines the functions of washing and UV-curing (post-polymerization) of photopolymer 3D-printed models. The equipment is aimed at private workshops, dental and jewelry laboratories, as well as small productions where efficient and affordable post-processing of resin 3D prints is required.

Main Modes and Parameters

• Washing mode: removes residues of uncured resin from the surface of products. The device provides active mixing of isopropyl alcohol (IPA) or alternative solvents around the parts for thorough and quick cleaning. After the cycle is completed, the internal basket easily lifts above the container, allowing the parts to dry and preventing over-polymerization or deformation due to excessive soaking.
• Curing mode: radiation with a wavelength of 405 nm completes the chemical polymerization reaction started during printing. Post-curing increases the strength, viscosity, heat resistance, and creep resistance of the parts, the residual stickiness of the surface disappears, making it harder.
• Solvent compatibility: the equipment is optimized to work with isopropyl alcohol (IPA), tripropylene glycol monomethyl ether (TPM), and specialized Resin Washing Solution.
• Ergonomics and format: the "all-in-one" solution significantly saves workspace on the desktop and eliminates the need to purchase separate installations for washing and UV chambers.

Capabilities and Advantages of Post-Processing

Using Form Studio Wash+Cure guarantees stable quality of the final processing of photopolymer models without the risk of damaging small details.

• Enhancement of physical properties: complete polymerization at a wavelength of 405 nm ensures maximum detail and mechanical stability of finished products.
• Preservation of geometry: the ability to dry parts directly above the container prevents swelling or warping of thin walls.
• Flexibility in chemical choice: compatibility with various types of washing liquids allows you to choose the optimal solution for the specifics of your resins and fire safety requirements of the premises.

Ordering the Form Studio Wash+Cure Device

You can find out the cost of Form Studio Wash+Cure and place an order with delivery on the 3DDevice website. Our technical specialists will help you select consumables, compatible solvents, and equipment for photopolymer 3D printing tailored to the needs of your production.
