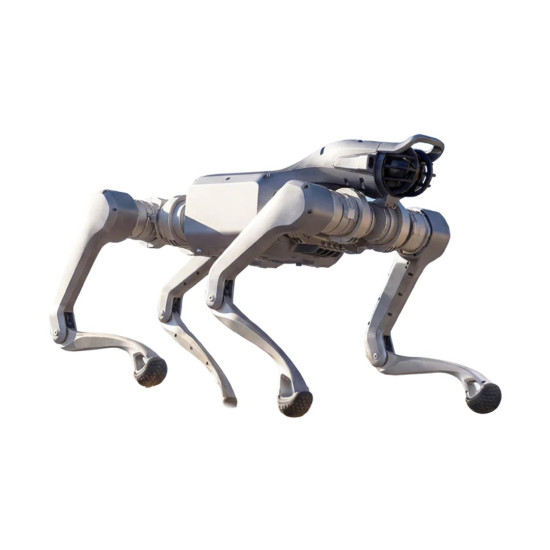

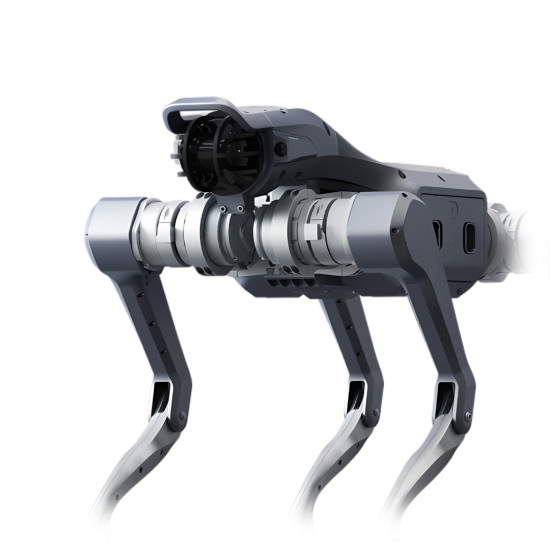

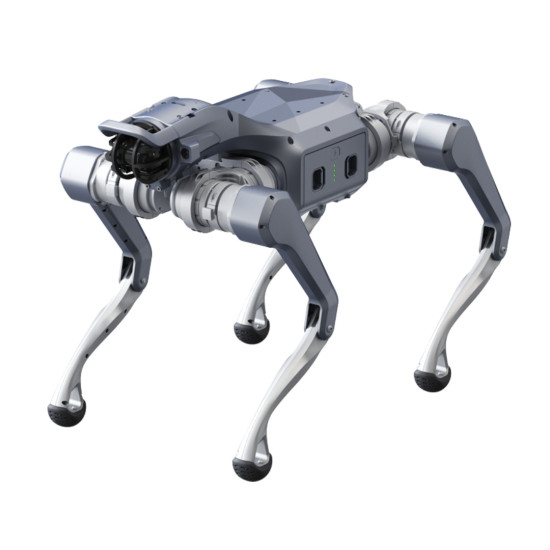

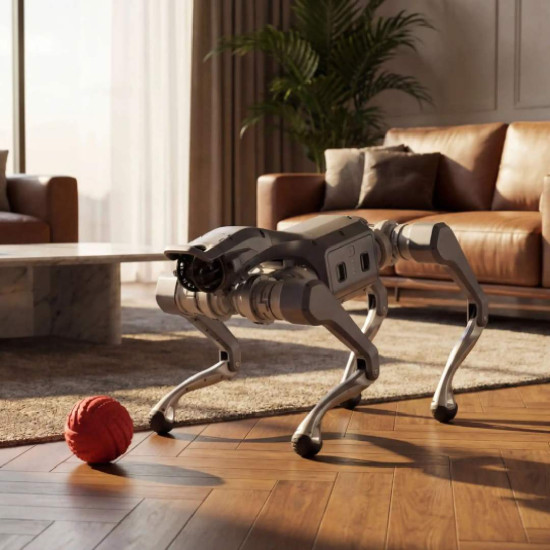

Unitree As2 Edu-U1 Robot Dog for Research and Industrial Tasks
Unitree As2 Edu-U1 is a lightweight robot dog for education, engineering research, autonomous movement algorithm testing, and applied industrial scenarios. The platform is suitable for universities, laboratories, R&D teams, integrators, and companies that need a mobile quadruped robot for experiments, patrolling, logistics, demonstration projects, and secondary development. The robot dog combines low weight, high movement dynamics, and industrial endurance. The model has 12 degrees of freedom, 12 joint motors, a maximum joint torque of about 90 Nm, and can reach speeds of up to approximately 5 m/s without load.
Main Advantages of Unitree As2 Edu-U1
- Platform for learning and development. Unitree As2 Edu-U1 is designed for engineering courses, laboratory work, autonomous movement research, and applied robotics.
- Support for secondary development. Technical materials, documentation, developer guides, robot models, and simulation interfaces are available for work.
- High autonomy. The 15000 mAh battery provides over 4 hours of continuous walking without load and a route of approximately 20 km.
- Work with payload. The robot can carry approximately 15 kg while walking, and the maximum static load in a standing position is about 65 kg.
- Stable movement on difficult terrain. Unitree As2 Edu-U1 can overcome steps up to 25 cm, move on slopes of about 40°, and is suitable for testing on uneven surfaces.
- Industrial design. The aluminum alloy and high-strength engineering plastic body provide a combination of rigidity, low weight, and practicality for field tests.
- IP54 protection. The robot is suitable for working in dusty and splash water conditions within the appropriate protection class.

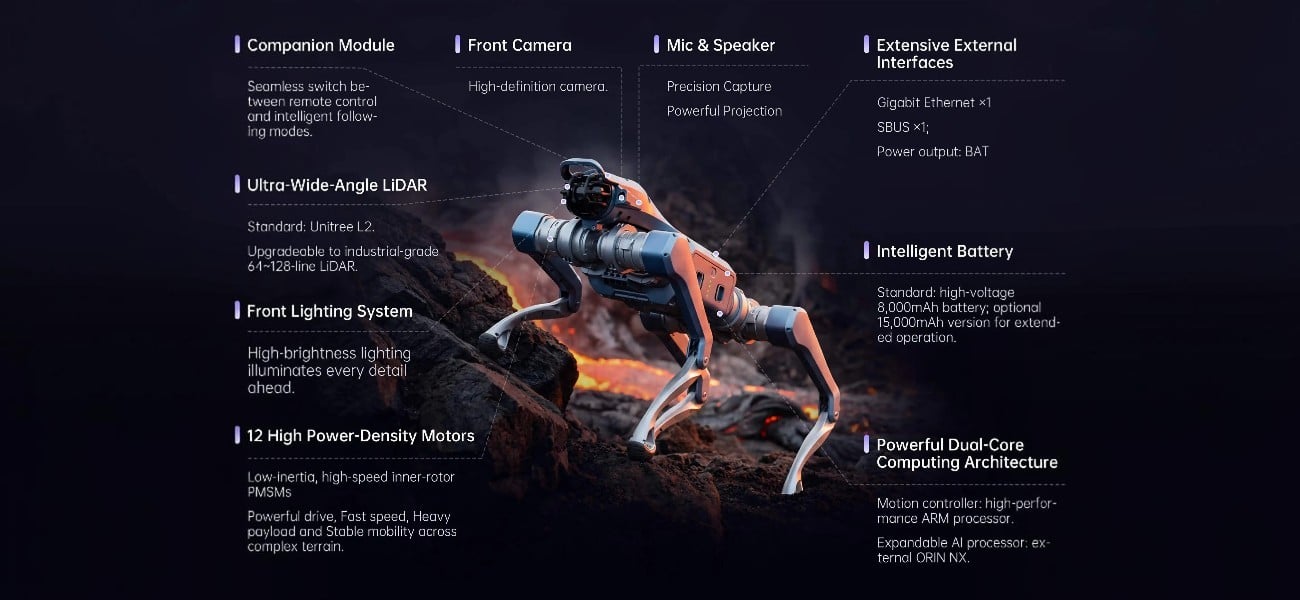

- Sensors and communications. Supports Wi-Fi 6, Bluetooth 5.2, HD camera, GPS, 4G, LiDAR, speaker, microphone, and lighting elements.
Platform for Learning and R&D
Unitree As2 Edu-U1 is suitable for university laboratories, robotics training programs, and research teams working with mobility, stabilization, navigation, sensor testing, and robot interaction with the environment. Support for secondary development allows the platform to be used as a basis for custom algorithms and scenarios, test autonomous routes, verify movement logic, work with documentation, robot models, simulation interfaces, and integrate the robot into applied projects.

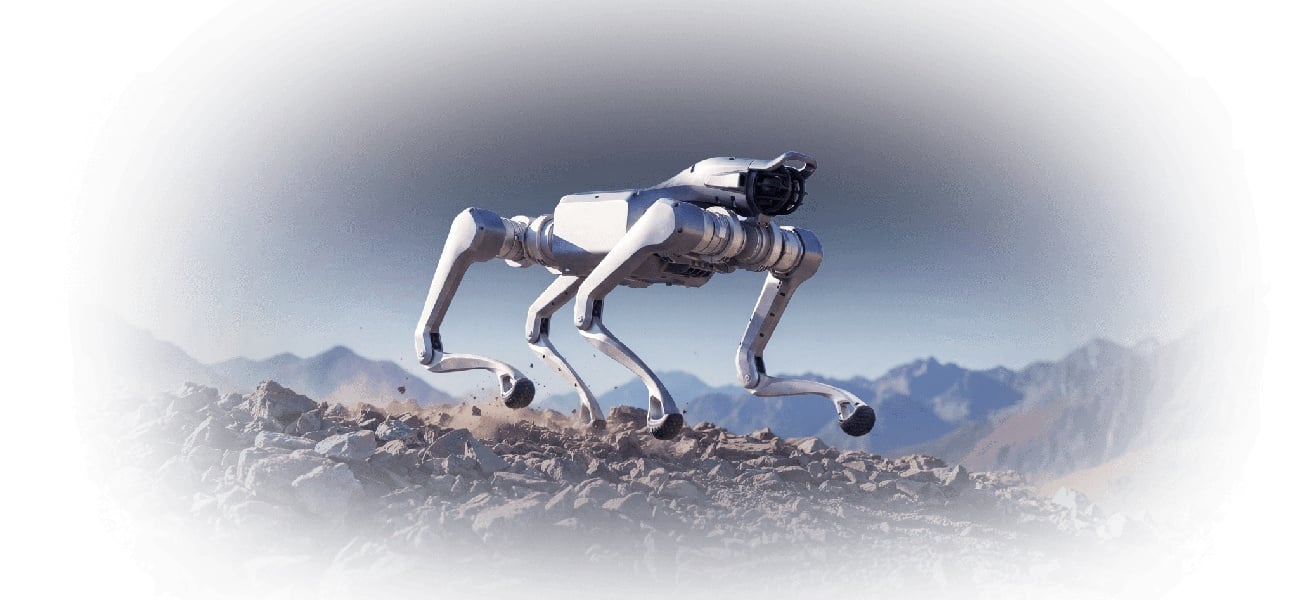

Maneuverable Movement and High Dynamics
Unitree As2 Edu-U1 has active quadruped mobility: forward movement, turns, obstacle overcoming, step climbing, and slope movement. The maximum speed without load is approximately 5 m/s, and the working speed range is 0–3.7 m/s.
Thanks to powerful joint motors, industrial bearings, and a wide range of joint movements, the robot can maintain stability during dynamic maneuvers. This is important for tasks that require real testing of autonomous behavior on complex surfaces, in corridors, on test sites, production areas, or demonstration routes.
Long Autonomy for Field Tests
Unitree As2 Edu-U1 is equipped with a long-lasting 15,000 mAh lithium battery. Without load, the robot can walk continuously for over 4 hours and cover a route of approximately 20 km. With a payload of 15 kg, the operating time is approximately 2.5 hours, and the range is about 13 km.
This autonomy reserve is useful for long-term research, route tests, patrolling, logistics scenarios, and training sessions where it is important not to interrupt experiments due to short operating times.
Powerful Joint Motors and Load Handling
The robot has 12 degrees of freedom and 12 joint motors. The maximum joint torque is approximately 90 Nm, allowing the platform to move stably, carry loads, and perform complex maneuvers.

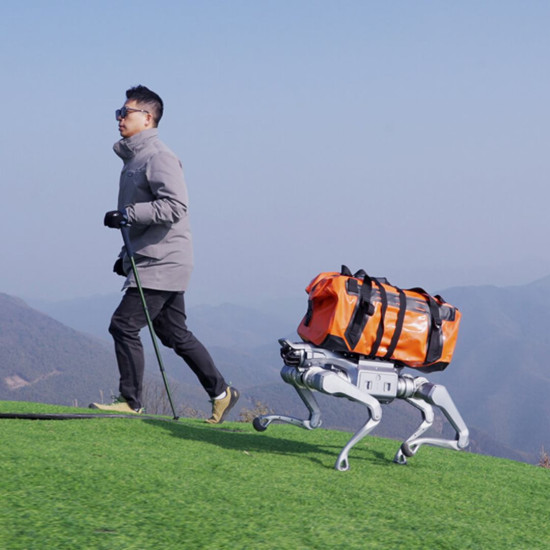

While walking, Unitree As2 Edu-U1 can work with a load of about 15 kg. In a standing position, the maximum static load reaches approximately 65 kg. This allows the robot to be used for testing portable equipment, sensors, computing modules, demonstration loads, or applied logistics scenarios.

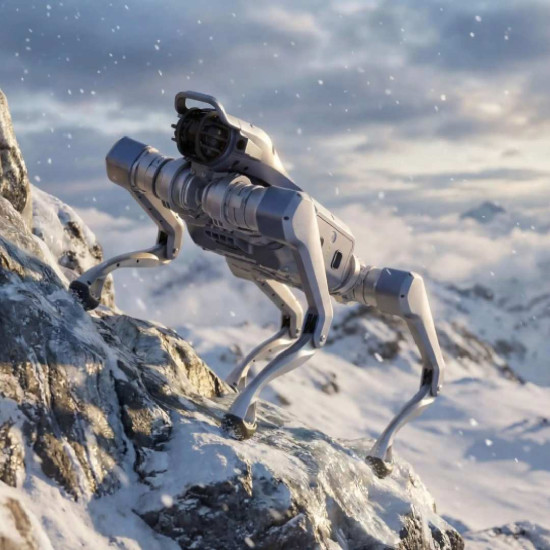

Adaptation to Weather Conditions
IP54 protection allows the robot to be used not only in the laboratory but also in more challenging conditions: on test sites, in warehouses, at industrial facilities, or during outdoor demonstrations. The operating temperature range is from −20 °C to 50 °C.
Unitree As2 Edu-U1 supports GPS and 4G, which are disabled by default and activated after user authorization. Wi-Fi 6, Bluetooth 5.2, HD camera, LiDAR, speaker, microphone, and light are also provided, expanding the robot's application possibilities in various scenarios.
Applications of Unitree As2 Edu-U1
- Educational laboratories. The robot is suitable for practical training in robotics, mechatronics, autonomous systems, and mobile robots.
- University research. Unitree As2 Edu-U1 can be used to verify movement algorithms, stabilization, navigation, and spatial perception.
- AI algorithm development. The platform is suitable for testing autonomous solutions, behavioral models, and interaction with robotic systems.
- Autonomous movement testing. The robot allows testing routes, slope movement, step overcoming, and work on uneven surfaces.
- Patrolling. Unitree As2 Edu-U1 can be used for demonstration or testing of observation routes at technical facilities.
- Logistics. The robot is suitable for experimental scenarios of moving loads up to 15 kg while walking.
- Demonstration projects. The Unitree robot dog is convenient for presentations, exhibitions, educational events, and public demonstrations of robotic solutions.
- Industrial tasks. The platform can be used for applied tests in production, technical, and service processes.
Unitree As2 Edu-U1 Package
Unitree As2 Edu-U1 is supplied as an educational and development configuration for working with robotics, simulation, and applied tasks. The package may include the Unitree As2 Edu-U1 robot, a long-lasting 15000 mAh battery, a fast charger 51 V / 9 A, a charging panel, a handheld control remote, an NVIDIA Jetson Orin Nano 40 TOPS computing dock, technical materials and development guides, support for robot models and simulation interfaces, support for Isaac Sim and other simulation environments, UniStore Application Platform, and OTA software updates. The exact configuration of Unitree As2 Edu-U1 should be clarified before ordering, as available modules and options may vary depending on supply.

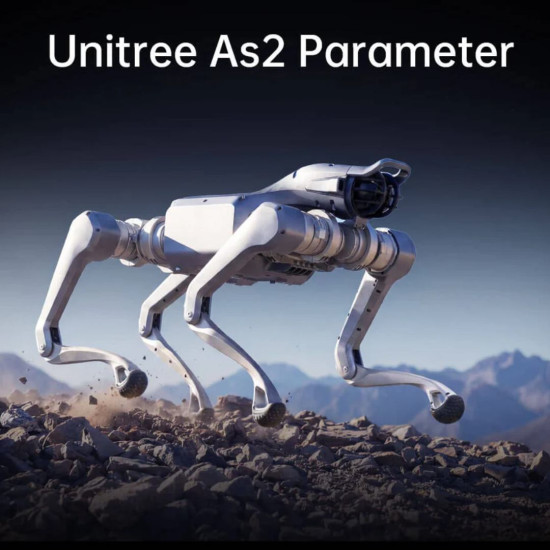

Technical Specifications of Unitree As2 Edu-U1
| Parameter | Value |
| Dimensions in standing position | 720 x 378 x 457 mm |
| Dimensions in folded position | 776 x 378 x 233 mm |
| Weight with battery | approximately 18 kg |
| Body materials | Aluminum alloy and high-strength engineering plastic |
| Number of degrees of freedom | 12 |
| Number of joint motors | 12 |
| Joint bearings | Industrial crossed roller bearings |
| Joint motors | Low-inertia high-speed PMSM with internal rotor |
| Maximum joint torque | approximately 90 Nm |
| Joint movement range | body: −45°…45°; thigh: −115°…200°; shin: −159°…−47° |
| Power supply voltage | 36–50.4 V |
| Joint encoders | Dual encoders |
| Cooling system | Local air cooling |
| Power source | Lithium battery |
| Battery capacity | 15,000 mAh |
| Wi-Fi | Wi-Fi 6 |
| Bluetooth | Bluetooth 5.2 |
| Speaker | yes |
| Microphone | yes |
| Light | yes |
| GPS | Supported, disabled by default |
| 4G | Supported, disabled by default |
| HD camera | Supported |
| LiDAR | Industrial ultra-wide-angle LiDAR 64–128 lines |
| Base processor | 8-core high-performance CPU |
| Computing dock | NVIDIA Jetson Orin Nano, 40 TOPS |
| External interfaces | Gigabit Ethernet ×1, SBUS ×1, power output BAT |
| Operating temperature | −20 °C…50 °C |
| Operating time without load | Over 4 hours of continuous walking |
| Range without load | approximately 20 km |
| Operating time with load | approximately 2.5 hours with a 15 kg load |
| Range with load | approximately 13 km |
| Maximum static load | approximately 65 kg |
| Working load while walking | approximately 15 kg |
| Slope overcoming | approximately 40° |
| Step overcoming | up to 25 cm |
| Movement speed | 0–3.7 m/s; maximum approximately 5 m/s without load |
| Protection | IP54 |
| Control remote | Included |
| Charger | Fast charging 51 V / 9 A |
| Charging panel | Included |
| Depth camera | Optional, not included in the standard package |
| Secondary development | Supported |
| UniStore Application Platform | Supported |
| OTA updates | Supported |
| Warranty | 12 months |
| Simulation | Supported robot models, simulation interfaces, Isaac Sim, and other environments |
Application Tips
- Determine the main usage scenario for Unitree As2 Edu-U1: education, research, demonstrations, patrolling, logistics, or algorithm development.
- For autonomous movement and space analysis, clarify whether a depth camera, additional sensors, or computational extensions are needed.
- If the robot is to carry equipment, assess the allowable load during walking, route, and surface type in advance.
- Check operating conditions: temperature, operating time, route complexity, and the need for IP54 protection.
- Prepare the team to work with technical documentation, simulations, and testing of autonomous scenarios.
