- Stock: In Stock
- Model: P3 80W
- Weight Brutto: 105.00kg
- SKU: P0101000119
More from this brand

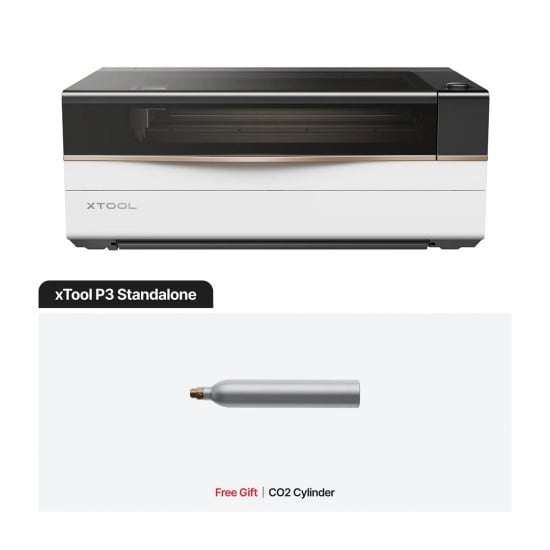

Powerful xTool P3 80W Laser Engraver-Cutter with a Large Working Area
The xTool P3 is equipped with a powerful 80W CO₂ laser, and can be further expanded with a 5W IR laser module for metal and plastic engraving, which significantly expands the range of materials that can be processed. The working area of 915 × 458 mm (36″ × 18″) is more than a square meter, making it ideal for large-format tasks or batch processing. The maximum laser head movement speed reaches 1200 mm/s (≈ 47.2 ips) with an acceleration of up to 2 g, which significantly reduces task completion time. The focusing system includes a LiDAR sensor and a motorized AutoLift base, ensuring precise and automatic height adjustment up to 220 mm (8.66″). An integrated inverter water chiller is used to stabilize power and increase reliability.
The body is fully enclosed and complies with Laser Class 1 safety, featuring a multi-level sensor system (cameras, infrared sensors, fire suppression systems) to ensure safe operation.
The package includes: xTool P3 80W laser engraver with a built-in IF2 2.0 fan. Other modules mentioned in the description are purchased separately.
Intelligent Workflow Automation
The P3 uses the Automated Creation System™ (ACS™), which includes a dual camera setup (16 MP panoramic and detailed) and LiDAR focus, allowing for automatic recognition, positioning, and focusing of the material — a "place & go" approach without manual setup.
An intelligent conveyor feeder is also available, providing seamless transfer of long workpieces, automatic clamping, and image merging — perfect for the mass production of large items.
For cylindrical objects, the RA3 Rotary is provided with 360° LiDAR scanning and 3D preview, which simplifies rotational engraving, speeds up the start of serial production, and eliminates manual measurements.
Advantages of the Powerful Laser and Large Working Area in xTool P3
- The 80W CO₂ laser power allows for cutting up to 20 mm of basswood and 25 mm of acrylic in a single pass, which significantly increases efficiency compared to previous models.
- The 915×458 mm space makes it possible to work with large parts, create panels, wall signs, furniture, and process several small items at once with a single run.
- High speed and acceleration reduce task completion time, increasing the device's productivity and throughput for mass production.
Safety: Sensor System Prevents Fire Risk
Laser Class 1 means complete safety under normal operating conditions, which eliminates the risk of accidental eye exposure.
The sensor and automatic fire suppression system provide an instant reaction to flames or overheating, which is especially important for extended use or work with flammable materials.
The built-in chiller ensures constant power during long tasks, minimizing overheating and reducing the likelihood of downtime.
Applications
- Small production and workshops: High speed and automation are ideal for small-batch printing, making gifts, souvenir products, and interior decor.
- Advertising and signage business: Large-format panels, logos, and advertising signs are processed quickly and without seams thanks to the large working area and conveyor.
- Designers and decor specialists: The wide range of materials (wood, acrylic, leather, plastic if the IR module is installed) opens up possibilities for custom decoration, accessories, gifts, and unique products.
- Production of metal souvenirs and plates (with the 5W IR module) — direct engraving on metal and plastics without applying coatings expands the product line.
- Cylindrical engraving: bottles, tubes, vases, glasses — the RA3 allows for processing 3D objects with precision and in batch mode.
xTool P3 80W: Safety, Reliability, and High Performance
- Industrial-level performance: 80W power, 1200 mm/s speed, a working area of nearly 1 m².
- Maximum automation: ACS™, AutoLift, LiDAR focus, conveyor, RA3 — everything works on "autopilot."
- Safety and reliability: Laser Class 1, water cooling, active fire suppression.
- Wide range of applications: from wood and acrylic to metal, from flags and signs to souvenirs and packaging.
- Extremely convenient to use: minimal setup, high speed, stability — optimal for small businesses and creative industries.
Specifications
| xTool P3 Laser | |
| Nominal Laser Power | 80W |
| Laser Art |
CO₂ Glass Laser Tube
Optionally Available: 5W IR Module |
| Laser Class | Class 1 (Laser Class 4 when using a conveyor device) |
Operating Characteristics
| Max. Cutting Depth |
Depends on material,
for example, 25 mm of solid wood (basswood) or 28 mm of acrylic in a single pass |
| Max. Engraving Speed | 1200 mm/s |
| Engraving Accuracy | 0.009 mm |
| Laser Spot |
Focal Length S: 0.14 mm x 0.16 mm
Focal Length M: 0.15 mm x 0.18 mm Focal Length L: 0.18 mm x 0.20 mm |
Part Size
| Laser Working Surface | 915 mm x 458 mm |
| Max. Workpiece Height | 220 mm |
| Max. Diameter for Rotary Engraving | 0 – 200 mm |
Cameras
| xTool P3 Laser | |
| Focusing Modes | Autofocus |
| Camera |
16-megapixel SkyView Panoramic Camera
+ 5-megapixel Close-up Camera + 2 Side Cameras |
Connectivity
| Interfaces | Wi-Fi, USB, Ethernet |
| Operating System | Android / iOS / iPad / Windows / macOS |
| Supported File Formats | SVG, DXF, JPG, JPEG, PNG, BMP, TIF |
Physical Dimensions
| Product Dimensions (L x W x H) | 1250 x 780 x 496 mm |
| Product Weight | 105 kg |
xTool P2S and xTool P3 comparison
| Working Space | 600 x 305 mm | 915 mm x 458 mm |
| Working Speed |
600 mm/s
(X-axis acceleration 6400 m/s²) |
1200 mm/s
(X-axis acceleration 19,600 m/s²) |
| Max. Object Height |
215 mm (with riser)
71 mm (without riser) |
220 mm |
| Max. Material Thickness in a Single Pass |
18 mm basswood*
20 mm acrylic* |
25 mm basswood*
28 mm acrylic* |
| Max. Diameter for Rotary Module |
0 – 180 mm (with riser)
3–50 mm (without riser) |
0 – 200 mm |
| Motion Accuracy | 0.015 mm | 0.009 mm |
The full set of the xTool P3 80W
- xTool P3 80 W CO₂ Laser Engraver
- IF2 2.0 Inline Fan
Video Review of xTool P3 80W
The xTool P3 80W is an expert tool for those who value high performance, a large format, automation, and safety, all while maintaining ease of use. It opens up new horizons for production and creativity. The high-performance laser engraver-cutter is especially interesting for small businesses that want to scale without significant investment in large industrial equipment. Call or write — we will help you choose the equipment and accessories to make your business even more successful and provide a stable income.
