xTool MetalFab Laser Welder and CNC Cutter 800W Safety Pro Bundle

Laser Complex xTool MetalFab 800W Safety Pro Bundle — Next Generation Metalworking

xTool MetalFab 800W Safety Pro Bundle is a versatile standalone station that replaces an entire fleet of industrial equipment. The model combines four key technological processes: automatic CNC cutting, manual cutting, laser welding, and deep surface cleaning. It is the ideal choice for R&D departments, workshops, service centers, and small-scale productions that require exceptional precision in a compact format. At the heart of the system is a powerful fiber source with 800 W and a wavelength of 1080 ± 10 nm.

Multifunctionality and Key Advantages

The ecosystem is designed for the full cycle of manufacturing parts from sheet metal and profiles of any complexity:

• 4-in-1 Functionality:
  • high-precision automated CNC cutting of sheet metals;
  • manual cutting of complex spatial blanks;
  • laser welding (both in manual mode and along an automatic trajectory);
  • non-contact cleaning of metal from rust, paint, oxide films, grease, and scale.
• Through CNC Portal: the working area of 600 × 400 mm has an open design along the Y-axis. This allows processing sheets up to 600 mm wide without length restrictions. The system provides positioning accuracy of ± 0.05 mm at a movement speed of up to 500 mm/s.
• Perfect Weld Seam: rigid fixation of the laser head on the CNC portal ensures stable speed and impeccable quality of part connections without human factor.
• Automatic Wire Feeding: the complete feeder works with wire diameters of 0.8–1.2 mm, allowing for quality filling of technological gaps.
• Reliable Optics Protection: the active blowing system and well-thought-out lens design protect the optical unit from splashes of molten metal.

Material Processing Capabilities

The complex effectively works with carbon and stainless steel, galvanized steel, aluminum, brass, as well as titanium, magnesium, and nickel alloys.

Maximum Material Thicknesses for Welding:

• Stainless steel — up to 4.0 mm;
• Carbon steel — up to 3.0 mm;
• Aluminum alloys — up to 1.5 mm;
• Brass — up to 1.0 mm.

For quick slag removal during cutting, auxiliary gas blowing at a pressure of 0.8–1.2 MPa is used.

Maximum Material Thicknesses for Cutting:

In cleaning mode, the width of the laser spot is adjustable in the range from 10 mm to 80 mm, allowing for quick preparation of the part for further processing or welding.

Class 4 Safety

Process management is carried out through the convenient xTool Creative Space software. It supports the import of vector files, automatic layout algorithms, and flexible laser mode settings. The machine's touch display allows for instant selection of ready-made presets for different materials, thicknesses, and wire diameters.

Since the equipment belongs to Class 4, comprehensive protection is implemented:

• Protective Contact: laser radiation is activated only when the electrical circuit with the workpiece is closed.
• E-Stop Button: instant power-off of the system in case of an emergency situation.
• Safety Requirements: work is allowed only in protective glasses/mask with protection level OD 6+ for the wave 1064–1080 nm and with the exhaust system operating.

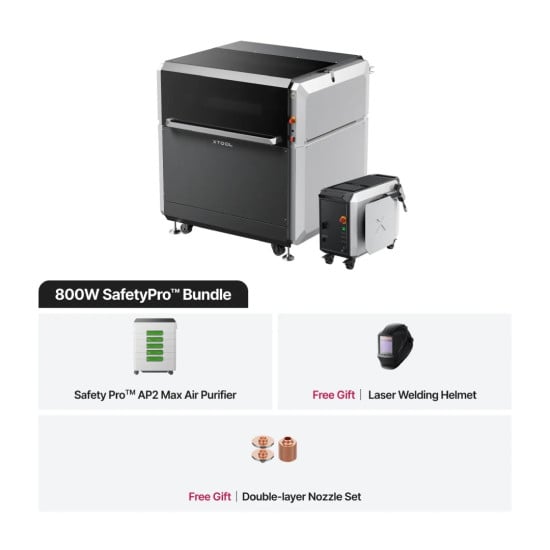

Safety Pro Bundle Contents

1. Fiber laser installation xTool MetalFab 800W — 1 pc.
2. Stainless steel wire spool 1 mm (built-in) — 1 pc.
3. Manual cutting nozzle — 1 pc.
4. Autogenous welding nozzle — 1 pc.
5. Laser cleaning nozzle — 1 pc.
6. Set of protective glasses and gloves — 1 pc.
7. CNC cleaning nozzle — 1 pc.
8. Telescopic cutting nozzle — 1 pc.
9. CNC cutting nozzle — 1 pc.
10. Industrial exhaust/air cleaner xTool SafetyPro AP2 Max — 1 pc.
11. Free Gift: xTool MaxClean™ cleaning module — 1 pc.
12. Free Gift: welding mask with "chameleon" screen (auto-darkening) — 1 pc.
13. Free Gift: set of double-layer nozzles and extension tubes — 1 pc.

Technical Specifications
