Infrared Laser and Structured Light for 3D Scanning

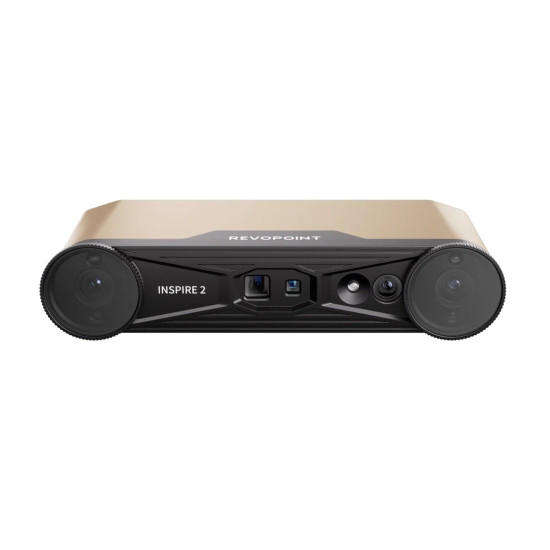

Revopoint INSPIRE 2 Premium Edition is a portable 3D scanner for small and medium-sized objects with a dual-camera infrared structured light system and a multi-line infrared laser. The Premium Edition is designed for handheld and desktop 3D scanning, digitizing parts, creating 3D models, reverse engineering, and preparing data for 3D printing. The infrared laser mode allows scanning of dark and shiny surfaces without scanning spray.
Technical Advantages of Revopoint INSPIRE 2 Premium Edition
- Accurate reproduction of part geometry. Single measurement accuracy is up to 0.05 mm, repeatability is up to 0.03 mm. This means that the obtained dimensions are close to actual, and the results of multiple measurements remain stable.
- Scanning dark and shiny surfaces. Eleven parallel infrared laser lines allow scanning such parts without scanning spray. The speed reaches 90 frames/s with a graphics processor.
- Markerless scanning. Infrared structured light allows working without markers on parts with clear geometric features. Markers are needed for flat, monochrome surfaces or repetitive patterns.
- Accuracy when scanning large parts. Volumetric accuracy is 0.05 mm + 0.1 mm. The value is specified for marker tracking mode.
- Magnification for small details. Optical magnification of 1.5x and 2x helps to obtain more data from areas with complex shapes and small elements.
- Outdoor scanning. INSPIRE 2 can operate in lighting up to 20,000 lux. Special filters are included for outdoor scanning, but direct sunlight should be avoided.
- Phone connectivity. Wi-Fi 6 allows connecting the scanner to compatible devices. The Premium Edition includes a battery, phone holder, quick-release plate, and cable for mobile connection.
3D Scanning Modes
- Infrared structured light. Suitable for small and medium objects with pronounced geometric features. The mode supports markerless scanning and operates at speeds up to 18 frames/s.
- Multi-line infrared laser. The system forms 11 parallel laser lines. The mode is designed for detailed geometry capture, including dark and shiny surfaces, without scanning spray.
Positioning During Scanning
INSPIRE 2 supports three ways to determine the scanner's position: by the object's geometric features, by markers, and by global markers. This allows choosing the tracking method according to the part's shape and working conditions. For transparent and mirror surfaces, Revopoint recommends using scanning spray. The Standard Edition also includes 200 reflective markers and external filters.
Revo Scan 6 and 3D Data Processing
Revo Scan 6 software is available for INSPIRE 2 on Windows, macOS, Android, and iOS. It allows scanning, processing obtained data, editing results, and forming a ready 3D model. The program supports formats PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, and Splat. The manufacturer separately indicates support for 3DGS models and intelligent object selection in Revo Scan 6. Revo Metro is also available for PC work. According to Revopoint, both programs have basic scanning functions, but Revo Scan 6 additionally supports 3DGS, intelligent object selection, and mobile devices.
How to Start Working with Revopoint INSPIRE 2
The workflow sequence depends on the object and the chosen scanning mode.
- Prepare the part. Clean the surface and assess whether markers or scanning spray are needed.
- Set up the scanner. For handheld work, hold it at the appropriate distance from the object or mount it on a tripod.
- Connect the scanner. Connection is possible via USB Type-C or Wi-Fi 6.
- Launch Revo Scan 6. Open the program on a compatible computer or mobile device.
- Select the mode. For parts with complex geometry, structured light can be used, and for dark or shiny surfaces, a multi-line laser.
- Choose the positioning method. Depending on the object's shape, geometric features, markers, or global markers are available.
- Perform the scan. Move the scanner relative to the part, maintaining the recommended working distance.
- Process and export the data. After scanning, edit the obtained model and save it in the desired format.

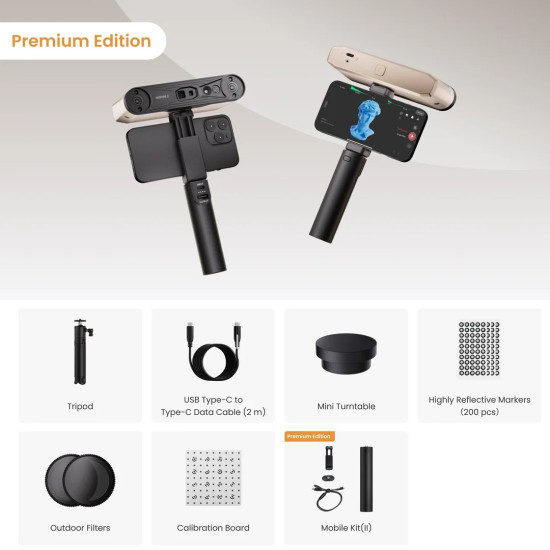

What is Included in the Revopoint INSPIRE 2 Premium Edition
The Premium Edition includes the full composition of the Standard Edition and an additional Mobile Kit (II).
- Revopoint INSPIRE 2 3D scanner. The main module for obtaining spatial data.

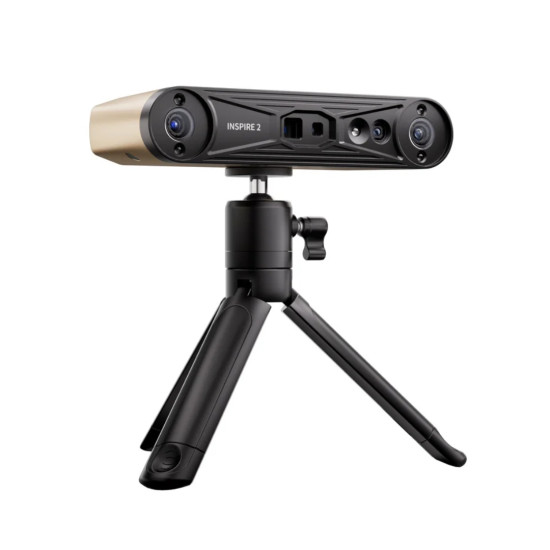

- Tripod. For stationary installation of the scanner.
- USB Type-C to USB Type-C cable, 2 m. For data transfer and power.
- Mini turntable. For desktop scanning of small objects.
- High-reflective markers, 200 pcs. For positioning during scanning.
- External filters. For outdoor scanning work.
- Calibration board. For calibrating the scanner.
- Phone holder. Secures the smartphone for mobile work format.
- 4000 mAh battery. Provides power to the scanner during mobile scanning.
- Quick-release plate. Allows quick installation and removal of the kit from a tripod or other mount.
- 2-in-1 cable for mobile connection. Designed for connecting the scanner to a mobile device.
Technical Specifications of Revopoint INSPIRE 2
Scanning Features and Parameters
| Feature | Value |
| Scanning type | Handheld and desktop |
| Technology | Dual-camera infrared structured light and multi-line infrared laser |
| Single frame accuracy | Up to 0.05 mm |
| Volumetric accuracy | 0.05 mm + 0.1 mm |
| Distance between merged points | Up to 0.1 mm |
| Indoor working distance | 200–400 mm |
| Outdoor working distance | 150–250 mm |
| Field of view | 43 × 35° |
| Minimum scanning volume | 20 × 20 × 20 mm |
| Maximum scanning volume | 2 × 2 × 2 m |
| Structured light speed | Up to 18 frames/s |
| RGB camera | 1280 × 800 |
| Color scanning | Yes |
Connectivity and Software
| Feature | Value |
| Light source | Infrared light, class 1 |
| Infrared LEDs | 4 |
| White flash | 1 LED |
| Built-in computation | Depth map processing |
| Wi-Fi | Wi-Fi 6 |
| Bluetooth | 4.1 |
| Connector | USB Type-C |
| Power supply | DC 5V, 1A |
| Compatible OS | Windows 10/11, Android, iOS, macOS 11.0 or later |
| Software | Revo Scan 6 |
| Export formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat |
| Net weight | 0.190 kg |
| Net size | 53 × 27 × 132 mm |
Practical Recommendations for Revopoint INSPIRE 2
- Scan dark and shiny parts in laser mode. 11 parallel infrared lines allow obtaining data from such surfaces without scanning spray.
- Scan parts with pronounced geometry using structured light. This mode supports markerless work and is suitable for small and medium objects.
- Use markers on complex objects. They provide additional reference points for determining the scanner's position while moving around the part.
- Prepare transparent and mirror surfaces before scanning. Revopoint recommends applying scanning spray to them.
Order the Revopoint INSPIRE 2 Premium Edition 3D Scanner
The Revopoint INSPIRE 2 Premium Edition is suitable for 3D digitization of small and medium parts, reverse engineering, 3D printing, and on-site scanning with a smartphone. Order the Revopoint INSPIRE 2 Premium Edition 3D scanner and get consultation on specifications, configuration, compatibility, and delivery.
