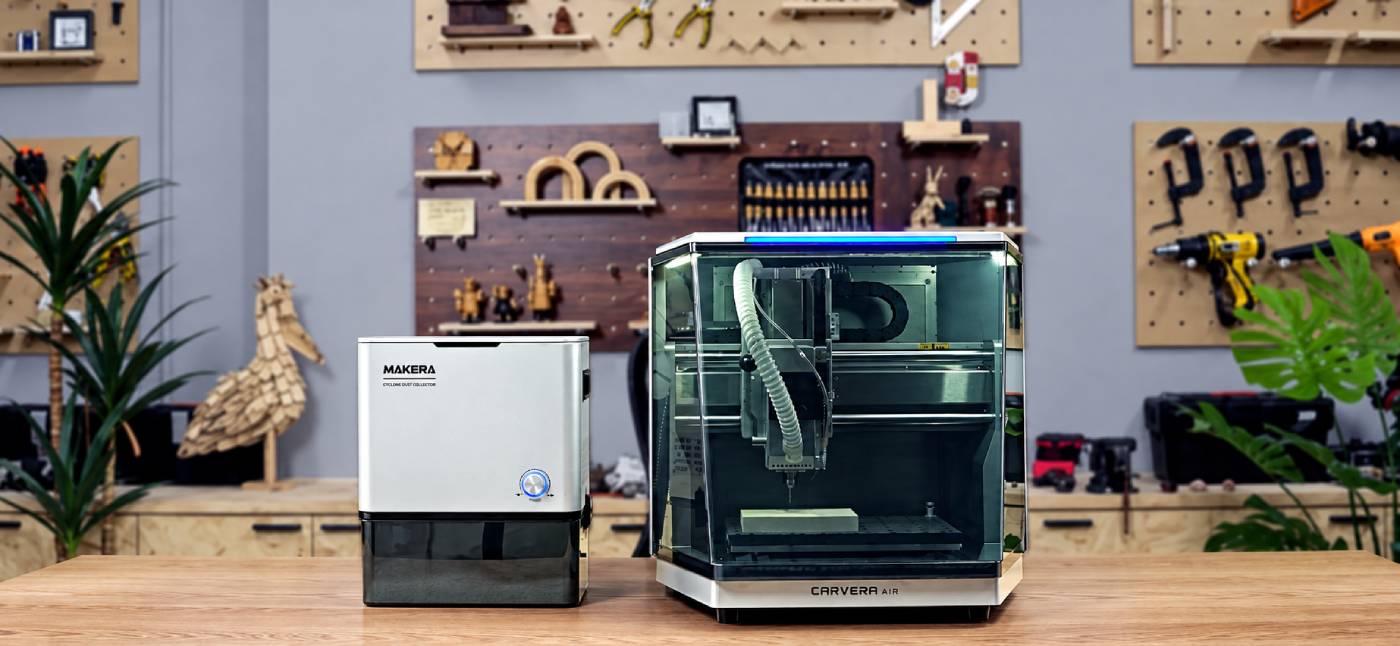

Makera Cyclone Dust Collector System for CNC Equipment
Makera Cyclone Dust Collector is a specialized solution for local removal of chips, milling waste, and fine dust, designed for use with desktop CNC machines and laser engraving systems. The device effectively captures particles of wood, metal, acrylic, plastic, and composites directly in the processing area. Thanks to the combination of cyclone separation and multi-level filtration, the system provides stable suction power with an air flow rate of up to 900 l/min. The device is characterized by a low noise level of up to 70 dB, support for G-code control, and compact dimensions, making it an optimal choice for workshops, laboratories, and small production sites.
Key Advantages and Two-Stage Separation
The dust collector operates on a two-stage air cleaning technology. In the first stage, due to the centrifugal force of the cycle, large chips and heavy particles are sifted and settle in the tank before entering the main filter block. In the second stage, fine dust passes through deep filtration. This design scheme prevents rapid clogging of the filters, ensures stable traction over a long period, and reduces the load on the power unit.
| Parameter | Makera Cyclone Dust Collector | Standard Household Vacuum Cleaner |
| Purpose | Long-term continuous operation in parallel with CNC machines | Short-term household cleaning |
| Suction Principle | Cyclone separation of particles from the main flow | Direct flow without separation (risk of motor overheating) |
| Pre-Screening | Up to 97% of large debris settles in the container before the filter | All debris immediately hits the filtering element |
| Air Filtration | 3 stages: pre-filter, HEPA, and carbon block | Basic filtration without micro-dust retention |
| Noise Level | Low, up to 70 dB, comfortable for enclosed spaces | High, over 85 dB during prolonged operation |
| Dust Collector Volume | 6 liters | 2–20 liters (depending on the model) |
| Control and Automation | Physical button, App Control, G-code start | Exclusively manual on/off |
| Drive and Cooling | 200 W motor with forced cooling for long cycles | Household motor prone to overheating under load |
| Body Dimensions | Compact (300 x 218 x 354 mm), adapted for the desktop | Bulky designs that take up a lot of space |
Smart Integration and Control Modes
Makera Cyclone Dust Collector is designed with automation of work processes in mind. The device provides three interaction options:
- manual start with a button on the body;
- remote setup and control via the Makera Controller app (Wi-Fi connection);
- automatic control using G-code commands.
In the app-controlled mode, the user can precisely adjust the air flow speed and regulate the power depending on the type of material being processed. Automatic start and stop by program (G-code) allow synchronizing the start of the dust collector with the beginning of milling, completely freeing from the need to manually control the system.
Compatibility and Step-by-Step Operation Algorithm
The capabilities of automated start via G-code are fully revealed when using the Carvera Air machine. For the basic model Makera Carvera, manual or software mode via the app is used.
Typical system operation order:
- Connect the flexible hose of the dust collector to the appropriate CNC machine port.
- Connect the data communication cable and power cable.
- Activate the device power (via button or Makera Controller).
- Adjust the optimal suction performance for the specific material.
- Start the milling or laser engraving control program.
- After the cycle is complete, empty the 6-liter container and check the filter condition.
Technical Maintenance of the Filter Block
To maintain high performance, it is recommended to regularly inspect and clean the filter elements. When constantly processing materials with high fine dust formation (wood, MDF, composites), filter revision should be performed more frequently. Thanks to cyclone separation, most of the debris is separated in advance, significantly extending the life of the HEPA cartridge compared to traditional exhaust systems.
Package Contents
When ordering the device, you receive a ready-to-use kit:
- Makera Cyclone Dust Collector system;
- flexible hose for connecting to the machine's work area;
- preliminary sponge filter;
- interface data transmission cable;
- power cable from the network;
- technical documentation and user manual.
Technical Specifications
| Specification | Value |
| Power Consumption | 200 W |
| Maximum Air Flow | 900 l/min |
| Maximum Vacuum | 12 kPa |
| Noise Level | up to 70 dB |
| Collector Tank Volume | 6 l |
| Cleaning Principle | Cyclone separator + 3-stage filtration |
| Filter Composition | Sponge pre-filter, HEPA filter, carbon cartridge |
| HEPA Filtration Efficiency | 99.99% |
| Control Methods | Manual / Makera Controller (Wi-Fi) / G-code |
| Body Materials | Aluminum alloy, structural plastic |
| Dimensions | 300 x 218 x 354 mm |
| Device Weight | 8 kg |
| Compatible Machines | Makera Carvera (manual) / Carvera Air (automatic) |
Recommendations from Technical Specialists
To achieve a balance between noise and extraction efficiency, adjust the system speed according to the type of work: for processing wood, plastic, and acrylic, 60–70% airflow power is sufficient. When milling metals or massive composites, set 80–100%. Do not allow the 6-liter container to overflow beyond the norm — this maintains a high level of traction and extends the resource of the HEPA element. If your equipment operates daily, keep a spare set of filters in the workshop for quick replacement without stopping production.
