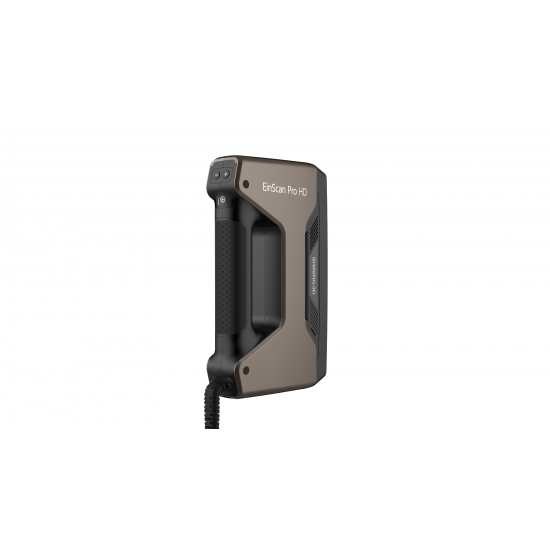

3D scanner SHINING 3D EinScan Pro HD

3D EinScan Pro HD scanner buy in Poland


SHINING 3D EinScan Pro HD is a new multifunctional portable 3D scanner of the EinScan Pro series of modular design.

    Provides unsurpassed performance of manual 3D scanning, while maintaining high resolution and accuracy. Versatility and powerful optimization ensure maximum efficiency and quality of 3D scanning at a professional level. It is a reliable assistant for designers and engineers who need high quality 3D modeling.

    • High accuracy, speed and resolution are capable when scanning objects of different sizes;
    • Scanning dark and black colors;
    • Use outdoors (it is necessary to use a cover or a canopy to avoid direct sunlight);
    • USB 3.0 interface;
    • ExScan Pro and Solid Edge SHINING 3D Edition software.


    Impressively high resolution for small details

    Thanks to the use of a new light design structure, line scanning, which was traditionally used in the fixed scan mode, is now used in the HD scan mode from the hands. The minimum distance to a point of 0.2 mm with the optimized algorithm provides high resolution and accuracy both at manual scanning, and at fixed scanning.

    3D EinScan Pro HD scanner buy in Poland

    3D EinScan Pro-HD scanner for fast pricise 3D scanning

    3D EinScan Pro-HD scanner for human 3D scanning

    Fewer restrictions on 3D scanning of different materials

    Thanks to a new hardware and software algorithm for lighting design, EinScan Pro HD is able to scan a wider range of dark or black objects and cast metal surfaces.



    High speed scanning and data transfer

    EinScan Pro HD has amazing scanning capabilities, and the USB 3.0 interface provides high data transfer speeds even when scanning objects with complex details.


    Multifunction scanning SHINING 3D EinScan Pro HD

    Several scan and alignment modes expand the scanning capabilities. Choose different modules for your needs.

    Use the Color Pack module for full-color texture scanning and the Industrial Pack module for stationary scanning.



    High accuracy for high quality 3D modeling

    Depending on the positioning method, the scanner or objects may move during scanning. This scanner provides an accuracy of up to 0.04 mm in fixed scan mode. In the mode of manual scanning by means of marker alignment, volumetric accuracy reaches 0,045 mm + 0,3 mm/m.

    3D scanning of EinScan Pro HD parts

    Full color texture SHINING 3D EinScan Pro HD

    With EinScan Pro HD you can quickly get full color texture and geometry using the Color Pack moduleIn addition, rich color can help align data.

    EinScan Pro HD scanner is full color

    Professional ExScan Pro software

    ExScan Pro is a professional SHINING 3D professional software for 3D scanning and data processing, with a set of tools for scanning and editing the grid to create high-quality 3D models. Beginners and advanced users can easily get high-quality 3D data. Software ExScan Pro and its free upgrade for all users.


    Solid Edge SHINING 3D Edition

    EinScan Pro HD, includes Solid Edge SHINING 3D Edition with basic 3D CAD design features. It provides a convenient and powerful 3D design tool to help you realize your creative ideas.

    Solid Edge SHINING 3D Edition

    Specifications

    Scan modeHandheld HD ScanHandheld Rapid ScanFixed scanning with the rotating Industrial Pack platformFixed scanning without turntable Industrial Pack
    Volumetric accuracyUp to 0.045 mmUp to 0.1 mm0.04 mm (accuracy of one pulse)0.04 mm (accuracy of one pulse)
    Scan speed10 fps
    3,000,000 dots / sec
    30 fps
    1,500,000 dots / sec
    Single scan < 0.5 secSingle scan < 0.5 sec
    The distance between the points0.2 mm - 3 mm0.25 mm - 3 mm0.24 mm0.24 mm
    The volume of one scan frame209 * 160 mm - 310 * 240 mm
    Depth of field± 100 mm
    Working distance510 mm
    LightLED
    Scan alignment mode. Leveling:by markers and by features of geometry
    mixed modemixed modemanuallymanually
    by texture featuresby labels on the turntable
    Texture scanYes (with Color Pack)
    Use outdoorsDirect sunlight should be avoided. Use a cover or shelter
    Special scanning conditionsFor transparent, very bright objects or too dark, use a powder or spray to scan
    SoftwareExScan Pro, Solid Edge SHINING 3D Edition
    FormatsOBJ, STL, ASC, PLY, P3, 3MF
    Scanner weight
    (including USB cable)
    1.13 кг
    Compatible OSWin10, 64bit
    Recommended configurationGraphics card: NVIDIA GTX1080 and higher; video memory:> 4G, processor: I7-8700, memory: 64G, interface: high-speed USB 3.0
    Configuration requirementsGraphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230,
    Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G




    Main page

    The main
    Scan Accuracy 0,04 mm
    Scan area 30 mm - 8000 mm
    Features Portable, multifunctional, dark object scanning

    Write a review

    Please login or register to review

    The Standard kit includes:

    • 3D scanner
    • SolidEdge 2021 SE Software

    The Extended kit includes:

    • 3D scanner
    • SolidEdge 2021 SE Software
    • Geomagic Essentials
    • Industrial Pack
