- Stock: Out of stock
- Model: EinScan Pro 2X V2 Industrial Pack + EXModel Pro
- Weight Brutto: 2.90kg
More from this brand
Introducing the SHINING 3D EinScan Pro 2X V2 Industrial Reverse Engineering Bundle, the definitive all-in-one package for professionals seeking a complete scan-to-design workflow. This comprehensive system is engineered to produce high-quality, high-accuracy 3D models with unmatched efficiency. By masterfully combining the agility of a handheld scanner with the precision of a stationary system and a powerful, full-featured scan-to-CAD software, this bundle stands as the perfect all-in-one solution for the most demanding applications in reverse engineering, industrial design, and digital manufacturing.
Highly Flexible Scanning for Any Professional Project
The Ideal Mode for Every Task at Hand
At the heart of this powerful bundle lies the versatile EinScan Pro 2X V2, a scanner that offers a range of operational modes designed to tackle any project with optimal results. Your workflow is never compromised, as the scanner adapts to your specific needs, whether you require the speed of handheld scanning for large objects or the precision of a fixed setup for detailed components.
- Handheld Rapid Scan: This mode is perfect for quickly capturing the geometry of large objects with impressive speed.
- Handheld HD Scan: For projects that demand fine details on-site, this mode delivers high-resolution data in a portable format.
With a variety of alignment methods at your disposal, including feature, marker, and texture, you have the complete flexibility to capture virtually any object, no matter its geometric complexity.
Achieve Metrology-Grade Precision with the Industrial Pack
Stationary Scanning for Superior Accuracy

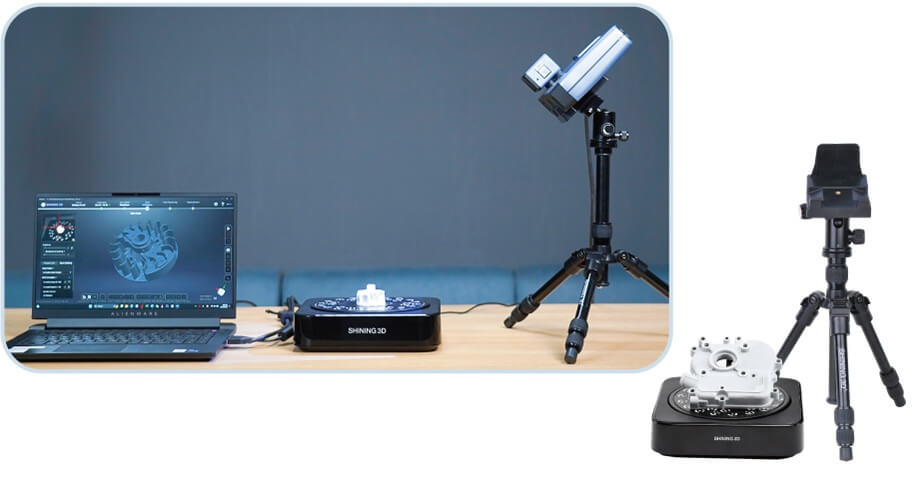

Included in this bundle is the essential Industrial Pack, which seamlessly converts your handheld Pro 2X V2 into a powerful stationary 3D scanning system. This pack comes complete with a professional tripod and a fully automatic turntable, enabling Fixed Scan modes for the highest possible level of accuracy and detail.
- Fixed Scan with Turntable: In this mode, you can achieve a remarkable single-shot accuracy of up to 0.04 mm. The automated 360-degree rotation greatly simplifies the process of scanning small to medium-sized objects, making it the ideal choice for quality control and the reverse engineering of intricate parts.
- Turntable Coded Targets Alignment: This advanced feature leverages coded targets on the turntable for rapid, high-precision automatic alignment, further boosting your workflow's efficiency and the accuracy of your data.
EXModel Pro: The Ultimate Scan-to-CAD Powerhouse
From Complex 3D Scans to Editable CAD Models
Dramatically streamline your entire reverse engineering process with EXModel Pro, the powerful software that creates a seamless bridge between your raw 3D scan data and your native CAD environment. This exclusive bundle includes the full EXModel Pro software license, granting you complete access to its professional toolset without any recurring subscription fees. EXModel Pro is specifically designed to work flawlessly with EinScan data, enabling you to convert complex 3D meshes into solid, editable CAD models with incredible speed and ease.
- Auto Surfacing: Automatically generate clean NURBS surfaces from your scanned mesh with just a single click, preparing your data for a smooth transition to CAD.
- Feature Creation & Extraction: Accurately reconstruct and model geometric features such as planes, cylinders, cones, and spheres directly from your scan data.
- Comprehensive Mesh Editing Tools: Utilize a full suite of powerful tools for cleaning, editing, and optimizing your mesh before converting it into a CAD-ready format.
- Seamless CAD Integration: Directly export your finished solid model into your existing CAD software, including SOLIDWORKS, Inventor, Rhino, and many more, for a truly fluid and integrated design workflow.
A Versatile Solution for a Multitude of Industries
This complete, all-in-one bundle is an indispensable asset for a wide range of professional sectors:
- Reverse Engineering: Combine the 0.04mm accuracy of the Industrial Pack with the powerful conversion tools of EXModel Pro to make your reverse engineering projects faster and more accurate than ever before.
- Industrial Design & Manufacturing: Create high-precision digital twins for comprehensive quality control, rapid design iteration, and the on-demand production of custom parts.
- Education & Research: This all-in-one solution is perfect for teaching and executing advanced design and manufacturing workflows in any classroom or research laboratory.
- Art & Heritage: Easily digitize priceless artifacts and sculptures with the highest level of detail for preservation, academic study, and faithful replication.
EinScan Pro 2X V2 TECHNICAL SPECIFICATIONS
| Scan mode | Handheld HD Scan | Handheld Rapid Scan |
Fixed Scan with Turntable (with Industrial Pack add-on) |
Fixed Scan without Turntable (with Color Pack add-on) |
|---|---|---|---|---|
| Scan accuracy | up to 0.045 mm | up to 0.1 mm | 0.04mm (single-shot accuracy) | |
| Volumetric accuracy* | 0.3 mm/m (with markers) | / | ||
| Depth camera resolution | 1.3 MP | |||
| Point distance | 0.2 ~ 2 mm | 0.16 mm | ||
| Scan speed |
10 fps 3,000,000 points/s |
30 fps 1,500,000 points/s |
Single Scan < 1s | |
| Scan range | 150 x 120 mm ~ 250 x 200 mm | |||
| Depth of field | 300 ~ 500 mm | |||
| Working distance | 400 mm | |||
| Light source | LED | |||
| Alignment modes | Marker Alignment, Texture Alignment, Feature Alignment, Hybrid Alignment | Marker Alignment, Texture Alignment, Feature Alignment, Hybrid Alignment | Turntable Coded Targets Alignment, Feature Alignment, Markers Alignment, Manual Alignment, Global Markers Alignment | Markers Alignment, Feature Alignment, Manual Alignment, Global Markers Alignment |
| Texture acquisition | Yes (with Color Pack add-on) | |||
| Outdoor operation | Yes (avoid direct sunlight) | |||
| Special scan object | For the transparent, highly reflective or some dark objects, please spray powder before scanning | |||
| Included software | EXScan Pro | |||
| Printable data output | Able to export watertight 3D model directly to 3D printing | |||
| Output formats | OBJ; STL; ASC; PLY; P3; 3MF | |||
| Weight | 1.13 KG (include the USB3.0 cable) | |||
| Operating temperature range | 0 ~ 40°C | |||
| Operating humidity range | 10 ~ 90% | |||
| Connection | USB 3.0 | |||
| Supported OS | Win7; Win8; Win10; (64bit) | |||
| Recommended PC configuration | Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GTX 1080; Video memory: ≥4G; Processor: i7-8700 or higher; Memory: ≥64G | |||
| Required PC configuration | Graphics card: Equal or higher than NVIDIA Quadro card P1000 or NVIDIA GTX660; Processor: intel (R) Xeon E31230, intel (R) i5-3470, intel (R) i7-3770; Memory: ≥16G | |||
Function Features Comparison
| Feature | EXModel Pro | EXModel |
|---|---|---|
| Mesh Editing (Fill Holes, Smoothing, Editing Boundaries) | ✓ | ✓ |
| Mesh Alignment (Coordinates/ N-points/ Fine Align) | ✓ | ✓ |
| Primitives Extraction/ Construct References | ✓ | ✓ |
| Cross Sections/ 2D Sketching/ 3D Sketching | ✓ | ✓ |
| Fit/ Manual Free Form Modelling/ Auto Surfacing | ✓ | ✓ |
| Export Features/ Profile as IGES/ STEP/ DXF | ✓ | ✓ |
| Extrude/ Revolved Surfaces | ✓ | X |
| Helix/ Loft/ Sweep/ Fill Surface (Class A surfaces)/ Blend surface/ Flatten | ✓ | X |
| Constraints/ Offset/ Patterns/Sketch Assist in 2D Sketch | ✓ | X |
| Unroll Mesh & Roll 2D Sketch | ✓ | X |
| Trim to Solid/ Cut/ Combine/ Intersect/ Fillet/ Chamfer/ Patterns | ✓ | X |
| Hybrid Modelling (Free-Form & Parametric) | ✓ | X |
| Transfer Design and Feature Tree to other Packages | ✓ | X |
| Compare | Mesh vs Mesh | X |
