3D scanner SHINING 3D EinScan H
3D scanner SHINING 3D EinScan H is a handheld color 3D scanner with hybrid LED and infrared light source.
Areas of use:
- Arts and cultural heritage
- Forensics: analysis and archiving of evidence
- Healthcare: orthopedics and prosthetics, plastic surgery, digital diagnostics and treatment
- Digital entertainment: animation and games

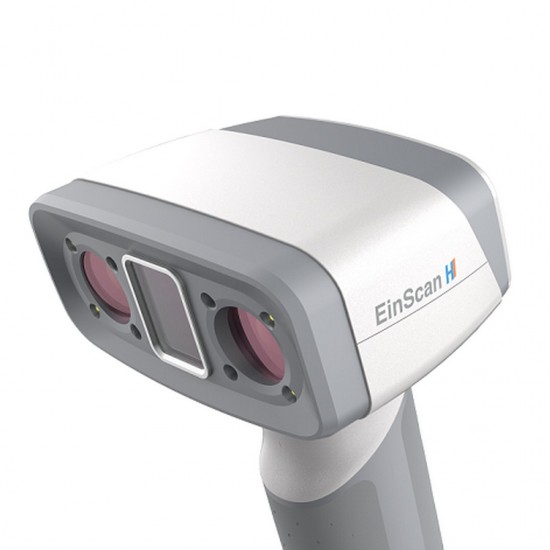

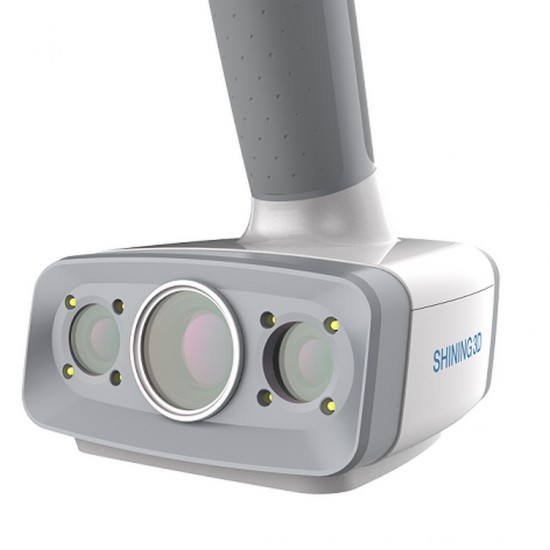

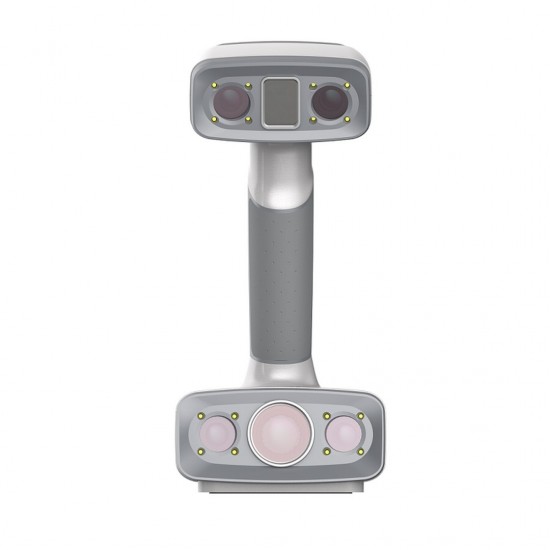

Portable color 3D scanner EinScan H
It is a handheld scanner based on a hybrid of structured illumination and infrared light technologies. EinScan H allows you to scan a person's face more comfortably because it does not use bright light. With a built-in color camera and large capture field, the EinScan H delivers high quality 3D data with full color images, ready to use in minutes.
Versatility and user friendliness with the EinScan H 3D scanner
Hybrid light source. By combining light sources such as LED structured light and invisible infrared light in a single device, this 3D scanner has a truly wide range of applications.
Fast scanning. Together with a scanning speed of up to 1200000 dots/s and a large viewing angle of 420*440 mm, the scanner provides fast digitization of large objects. And thanks to the frame alignment algorithm, the received data is effectively aligned. Thus, small movements of the scanned object or person do not affect the quality of the result.
Portable and easy control. Having a simple and intuitive software, both a professional and a beginner in 3D scanning will quickly master the operation of the scanner.
Great solution for human scanning
It is truly a revolutionary device for scanning the entire human body: an invisible infrared light source reliably reads and captures data from dark objects, even from human hair. In addition, the use of infrared illumination helps when scanning a person's face, as it makes this process safe and convenient.
Authentic capture of color and texture
The built-in color camera supports full color texture capture and texture tracking.
And an impressively high resolution of up to 0.25mm helps you capture even the smallest details of the scanned object. High accuracy of scanned data up to 0.05 mm and volumetric accuracy of 0.1 mm/m increase the accuracy of 3D modeling in dense point clouds or polygonal meshes.
|Standard Scan||Body Scan||Face Scan|
|Light Source||White Light, visible||White Light, visible||Infrared light, invisible|
|Safety||LED light (eye-safe)||LED light (eye-safe)||CLASS І (eye-safe)|
|Scan Accuracy||Up to 0,05 mm||Up to 0,05 mm||Up to 0,6 mm|
|Volumetric Accuracy*||0,05 + 0,1 mm/m||0,05 + 0,1 mm/m||/|
|Scan & Align Speed||1,200,000 points/s, 20FPS||1,200,000 points/s, 20FPS||720,000 points/s, 20FPS|
|Camera Frame Rate||55FPS|
|Align Modes||Markers Alignment, Feature Alignment, Hybrid Alignment, Texture Alignment||Feature Alignment||Feature Alignment|
|Working Distance||470 mm|
|Depth of Field||200 - 700 mm||200 - 700 mm||200 - 1500 mm|
|Maximum FOV||420 mm * 440 mm||420 mm * 440 mm||780 mm * 900 mm|
|Point distance||0.25 mm - 3 mm||0.5 mm - 3 mm||0.5 mm - 3 mm|
|Built-in Color Camera||Yes|
|Connection Standard||USB 3.0|
|Output Formats||OBJ, STL, ASC, PLY, P3, 3MF|
|Dimensions||108 * 110 * 237 mm|
|Operating Temperature Range||0 - 40 °C|
|Operating Humidity Range||10 - 90 %|
|Certifications||CE, FCC, ROHS, WEEE, KC|
|Recommended Configuration||OS: Win10, 64 bit; Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GTX 1080; Video memory: ≥ 4G; Processor: I7-8700; Memory: ≥ 32 Gb|
*Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1mm per 100cm(standard scan & body scan). The conclusion is obtained by measuring the center of sphere under marker alignment.
3D scanner SHINING 3D EinScan H buy in Krakow, Warsaw
|Scanner 3D options|
|Light Source||Hybrid LED and infrared light source|
|Volumetric Accuracy (mm/m)||0,05 + 0,1|
|Scan Range (mm)||420 × 440, Face Scan - 780 × 900|
|Stand-Off Distance (mm)||470|
|Scan With Marks||No|
|Scan Mode||Standard Scan, Body Scan, Face Scan|
|Part Size Range (m)||0,3 - 4|
|Scanning Speed (points/s)||1 200 000, Face Scan - 720 000|
|Scan Accuracy (mm)||Up to 0,05, Face Scan - up to 0,6|
|Scan Depth (mm)||200-700, Face Scan - 200-1500|
|Point Distance (mm)||0,25 - 3,0|
|Positioning Methods||Markers Alignment, Feature Alignment, Hybrid Alignment, Texture Alignment|
|Laser Class||Class І, eye-safe|
|Supported File Types||OBJ, STL, ASC, PLY, P3, 3MF|
|System Requirements||OS: Win10, 64 bit; Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GTX 1080; Video memory: ≥ 4G; Processor: I7-8700; Memory: ≥ 32 Gb|
|Warranty Period (months)||12|
|Certifications||CE, FCC, ROHS, WEEE, KC|
|Weight & Dimensions|
|Dimensions Netto (mm)||108*110*237|
|Weight Brutto (kg)||0,703|
|Operating Temperature Range (°C)||0 - 40|
|Operating Humidity Range (%)||10 - 90|
