Laser Engraving & Cutting Machine xTool D1 10W - Higher Accuracy Diode DIY

Best Laser Engraver and Cutter xTool D1 10W

Laser Engraver and Cutter Tool D1 10W is a modern laser cutter designed for high-quality and fast processing of parts from various materials. Twice as powerful as its brother, the xTool D1 5W engraver, xTool D1 10W has a built-in automatic calibration system, intelligent overheating protection and is designed for professionals looking for high quality and affordable parts processing tools. It is suitable for most tasks for businesses, hobbyists, designers, artists, beginners and professionals.

xTool D1 10W combines the best technologies (industrial steel wheel and shaft / tension wheel / synchronous belt / focused laser spot, etc.) that make the carving more precise and the carved work perfect.

Laser engraving and cutting machine 10 W:

• The output laser power is 10 W.
• Combination of 2 lasers and laser spot compression to 0.08×0.08 mm - greater power.
• Additional risers that can be purchased to increase the height and engrave higher objects.
• Rotary engraving on cylindrical surfaces.
• Easy focus adjustment.
• Large engraving area 432×406 mm.
• Several methods of data transfer.

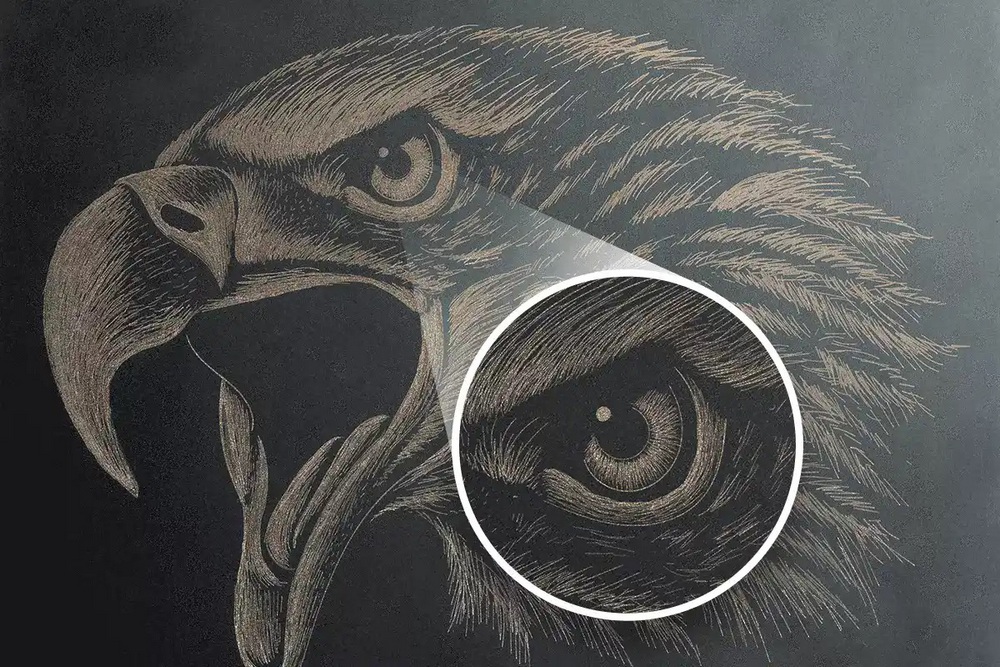

High precision cutting and engraving with xTool D1 10W

The industrial-grade construction design of xTool D1 10W Laser Engraving and Cutting Machine allows it to achieve incredible movement accuracy of 0.01 mm. And the ultra-fine compressed laser spot size of only 0.08×0.08 mm always shows the best details when engraving or cutting.

Innovative combination of 2 laser beams

Laser Engraver and Cutter Tool D1 10W uses the innovative technology of combining and compressing 2 laser beams at one point to make the laser spot smaller and more powerful, from 0.15×0.15mm to 0.08×0.08mm.

In this way, higher power and speed, cutting ability and better effect are achieved for the same power supply indicators. The power of the dual laser in the xTool D1 engraver with a power of 10W is equivalent to a single laser cutting machine with a power of 15W.

✔ Precise cutting of lines and fewer burn marks

✔ Engraving of thin and clear lines up to 0.06 mm

Additional risers

To expand the capabilities of xTool D1 10W, you can purchase a set of additional risers (legs) to increase the height of the engraver. This makes it easier to engrave taller objects (use 2 sets to increase the height to 140 mm).

Easy focus adjustment

The engraver has a convenient tool for 3-step focal length adjustment, it only takes 5 seconds. Pull the initial focus lever down, move the laser slider to bring the focus lever closer to the surface of the material, restore the focus lever.

Large engraving work surface

Large working area of 432×406 mm, larger than A3 paper size, allows you to engrave more patterns at the same time and makes your engraver more efficient.

Several data transfer methods

The engraver can receive data via Wi-Fi, USB cable, large capacity TF card (offline use). So D1 can work anytime, anywhere.

Rotary engraving

Thanks to a special rotary tool, xTool D1 10W is capable of engraving on a wide range of cylindrical objects. This swivel attachment, which can be purchased separately, helps you create patterns on mugs, baseball bats, bottles, glasses, and more. With 2 sets of risers for engraving on cylindrical materials with a diameter of 105 mm.

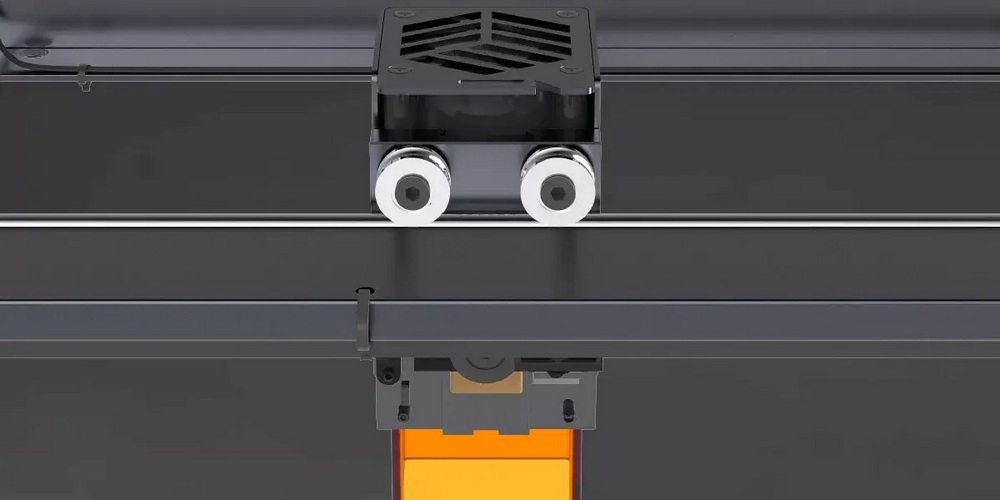

All-steel industrial-grade wheels and shaft

Unlike plastic and steel in the construction of other laser machines, the all-steel wheels and shaft of the xTool D1 10W allow you to work with a higher accuracy of 0.01 mm. In addition, it supports more than 100,000 slides and has a service life 3 times longer than plastic parts.

Tension wheel and synchronous belt

By tensioning the synchronous belt with the tension wheel adjuster, the movement clearance is well eliminated, the machine vibration is reduced and the movement stability is improved, so that the engraving remains accurate even at high process speeds.

* xTool is the first brand in its class to use closed belts, eliminating the need to loosen and reinstall them.

Engraving thin vector graphics

Moderate timing belt tension is important for movement accuracy. The tension wheel and synchronous belt enable the D1 to engrave excellent vector graphics at high speed.

The accuracy of repeated positioning is 0.02 mm

The solid structure design makes the D1 more stable, and the re-positioning accuracy is less than 0.02 mm. Keeps the perfect engraving effect even after long-term use.

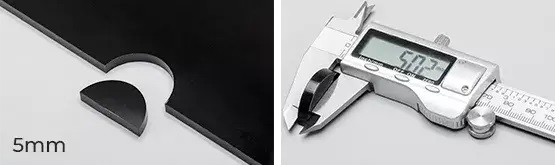

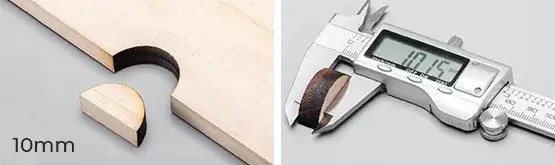

Cutting wood and acrylic in one pass

Examples of cutting a 10 mm wooden plywood board and a 5 mm acrylic plate in one pass with a 10 W xTool D1 cutter:

Explore creativity with acrylics

*Limited by the characteristics of the material itself, the semiconductor laser (blue laser) can only cut dark acrylic materials.

Direct engraving of stainless steel metal

No plating required - Faster speed - Darker engraved pattern

The best software is xTool D1

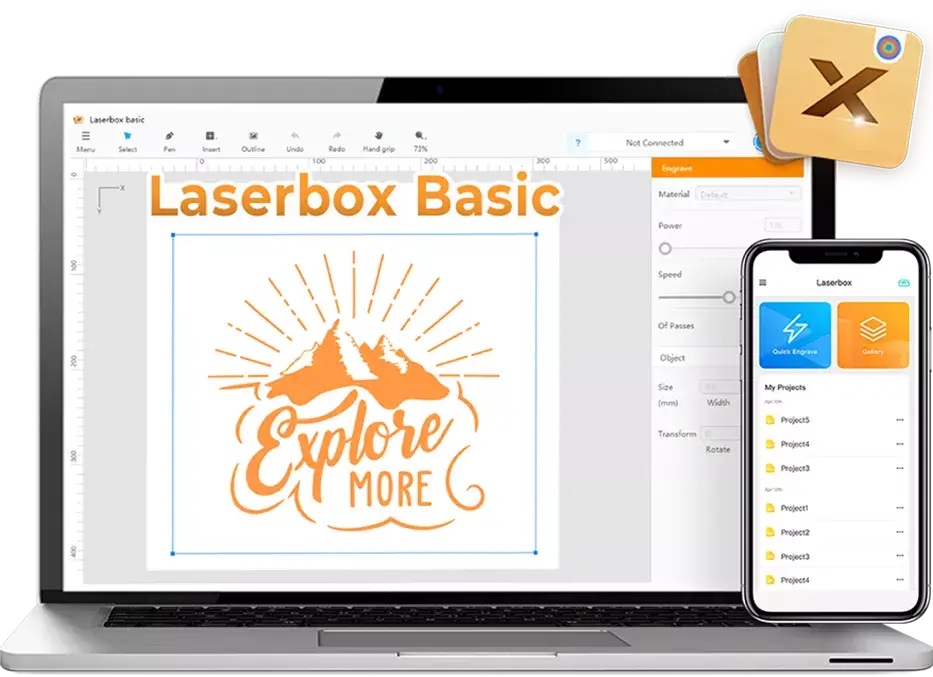

Get started quickly with the friendly Laserbox Basic software

The xTool D1 10W engraver and cutter has the convenient Laserbox Basic software, with which you will quickly start working on devices with Windows / macOS / Android / iOS systems.

Compatible with modern LightBurn engraving software

The xTool D1 10W is compatible with LightBurn layout, editing and control software for conventional laser cutters. Supported file formats for engraving: NC, BMP, JPG, PNG, DXF, etc.

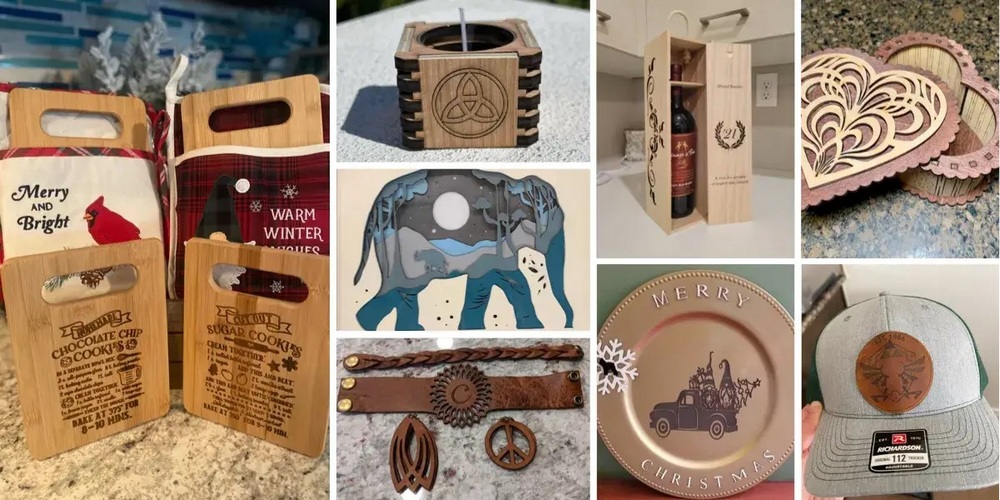

Laser engraver and plotter - the embodiment of many ideas

xTool D1 10W Scope of delivery
