Ortur LM2 S2 10W Laser Engraver and Cutter

Ortur Laser Master 2 for Laser Engraving

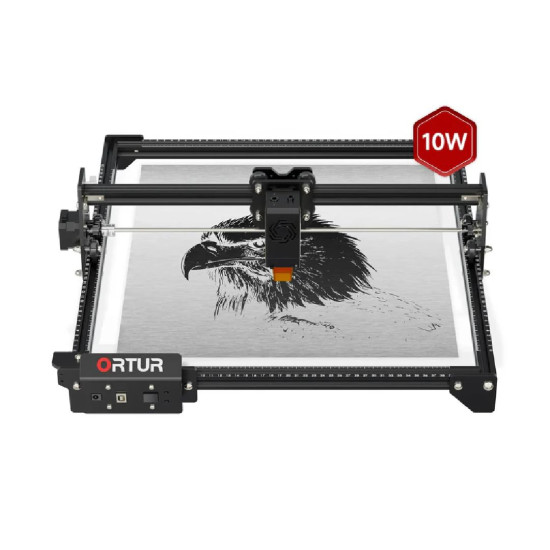

Ortur LM2 S2 10W is a desktop diode laser machine for applying graphics and cutting sheet materials. The model is equipped with an LU2-10A module with an optical power of 10W and a laser spot of 0.05 × 0.1 mm for working with small inscriptions, contours, and complex graphics. The working area of 390 × 410 mm is suitable for most workshop tasks, and a separate kit allows it to be increased to 390 × 800 mm. The movement speed of up to 5000 mm/min reduces processing time. The control system stops the laser operation in case of tilt, loss of USB connection, or going out of the working position.

Advantages of the Ortur LM2 S2 Laser Machine

• 10W Laser Module. LU2-10A is designed for engraving and regular cutting of sheet materials.

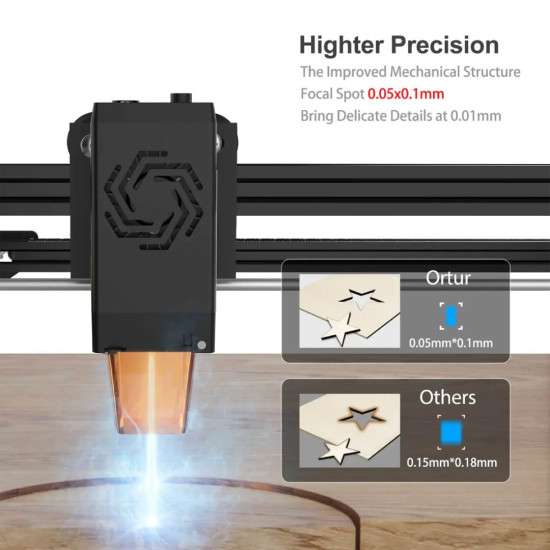

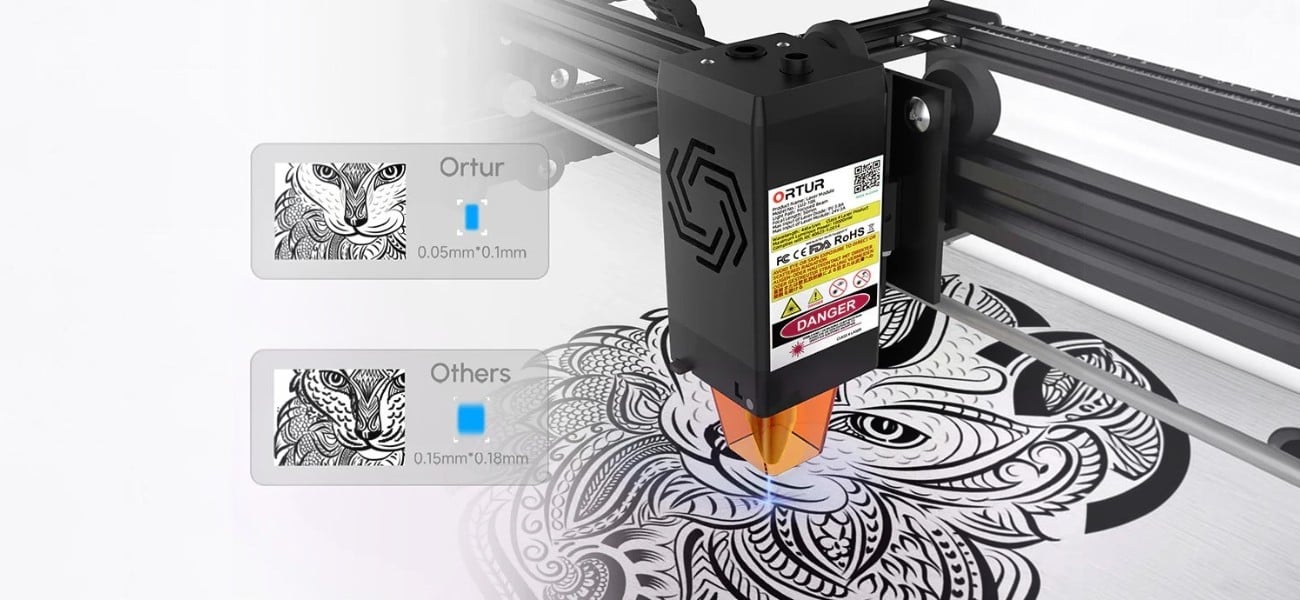

• Compact Laser Spot. The spot size of 0.05 × 0.1 mm allows for applying small inscriptions, contours, and graphics.
• Working with Long Blanks. The standard working area of 390 × 410 mm can be expanded to 390 × 800 mm with a separate kit.
• Fast Task Execution. The laser module moves at a speed of up to 5000 mm/min, and the ESP32 controller controls two NEMA 17 motors.
• Precise Beam Positioning. The mechanical movement accuracy along the X and Y axes is 12.5 microns.

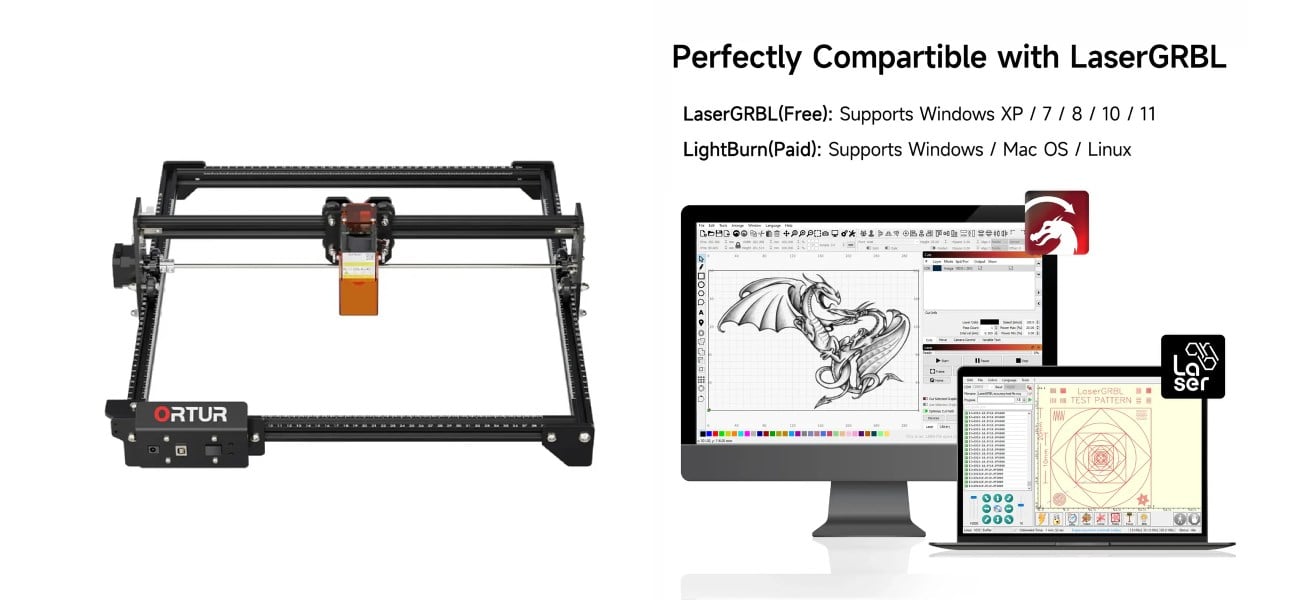

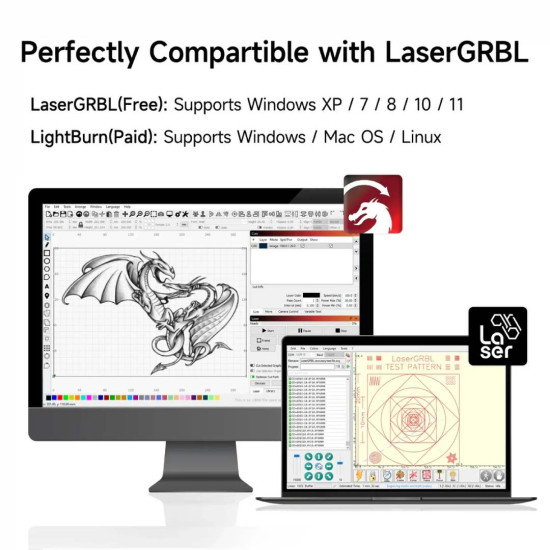

• Convenient File Preparation. Ortur LM2 S2 is compatible with LightBurn and LaserGRBL, and USB connectivity allows for project transfer from a computer.
• Multi-level Safety Control. The system stops the laser in case of tilt, loss of USB connection, prolonged radiation, going out of the working position, or electrical deviations.

Capabilities of the LU2-10A Laser Module

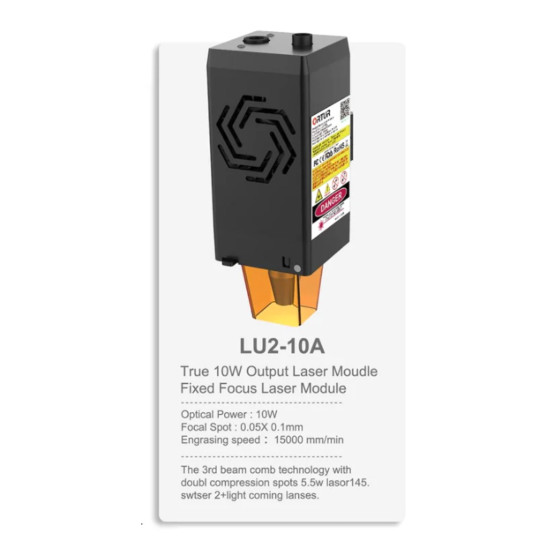

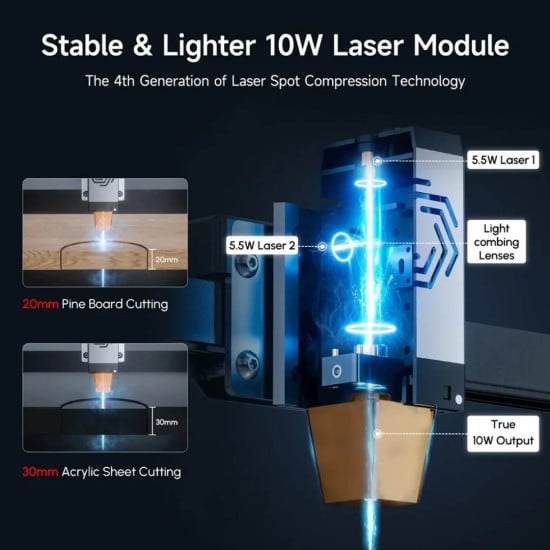

The Ortur Laser Master 2 is equipped with a diode module LU2-10A with an optical power of 10W. The beam is formed into a spot size of 0.05 × 0.1 mm. These parameters are suitable for applying fine graphics and cutting corresponding sheet materials.

The fixed focus requires manual adjustment of the laser head height before starting. Speed and power are adjusted considering the type, thickness, density, and surface condition of the material.

The 10W value indicates the optical power of the laser beam, not the power consumption of the entire machine.

Design and Working Area Parameters

The frame of the Ortur LM2 S2 consists of aluminum profiles and acrylic parts. Stepper motors NEMA 17 are responsible for movement along the X and Y axes. The OLM-PRO-V1.2 board with a 32-bit ESP32 MCU microcontroller processes control commands.

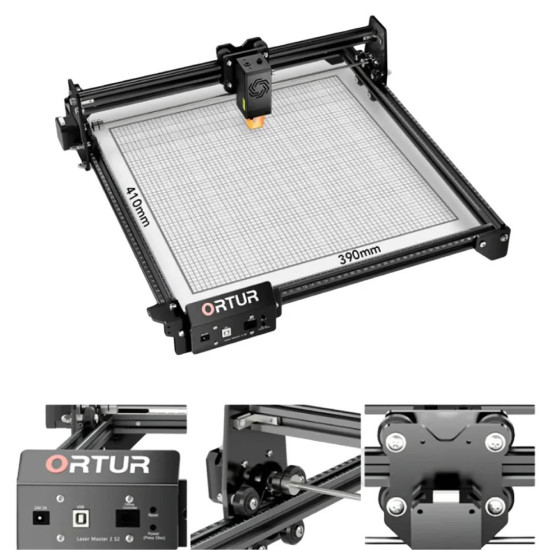

The working area of the machine is 390 × 410 mm. A separate extension kit increases it to 390 × 800 mm for working with long parts. The maximum movement speed of the laser module is 5000 mm/min.

The mechanical movement accuracy along the X and Y axes is stated to be 12.5 microns. Before starting, the distance between the laser module and the workpiece surface must be adjusted.

Control and Protection System During Operation

The Ortur Laser Master 2 controls the frame position, radiation duration, and electrical parameters. In case of tilt, loss of USB connection, or going out of the working position, the system stops the laser operation.

A separate physical emergency stop button for the LM2 S2 is not declared by the manufacturer. The open design requires protective goggles, smoke extraction, and a non-flammable base. The operator must stay near the machine throughout the entire working cycle.

Tasks Suitable for Ortur LM2 S2

The Ortur 10W laser engraver is suitable for creative, educational, and workshop tasks related to applying images and cutting sheet materials. Main application areas:

• applying inscriptions, logos, and graphics on wood and MDF;
• personalizing leather tags, covers, and accessories;
• making signs from plywood or black acrylic;
• cutting cardboard for models, packaging, and templates;
• engraving stone, coated glass, and coated metal;
• making souvenirs and small batches of identical products;
• educational, home, and workshop projects.

Materials for Engraving and Cutting

• Wood, MDF, and Plywood: engraving and cutting depending on thickness, density, and settings.
• Cardboard and Paper: engraving and cutting after preliminary testing.
• Leather and Felt: engraving and cutting with smoke extraction.
• Black Acrylic: engraving and cutting considering material thickness.
• Coated Glass and Stone: applying images to the surface.
• Stainless Steel and Coated Metal: surface marking or engraving. Metal cutting is not declared by the manufacturer.

PVC, vinyl, and other materials that emit toxic or corrosive substances when heated cannot be processed with a laser.

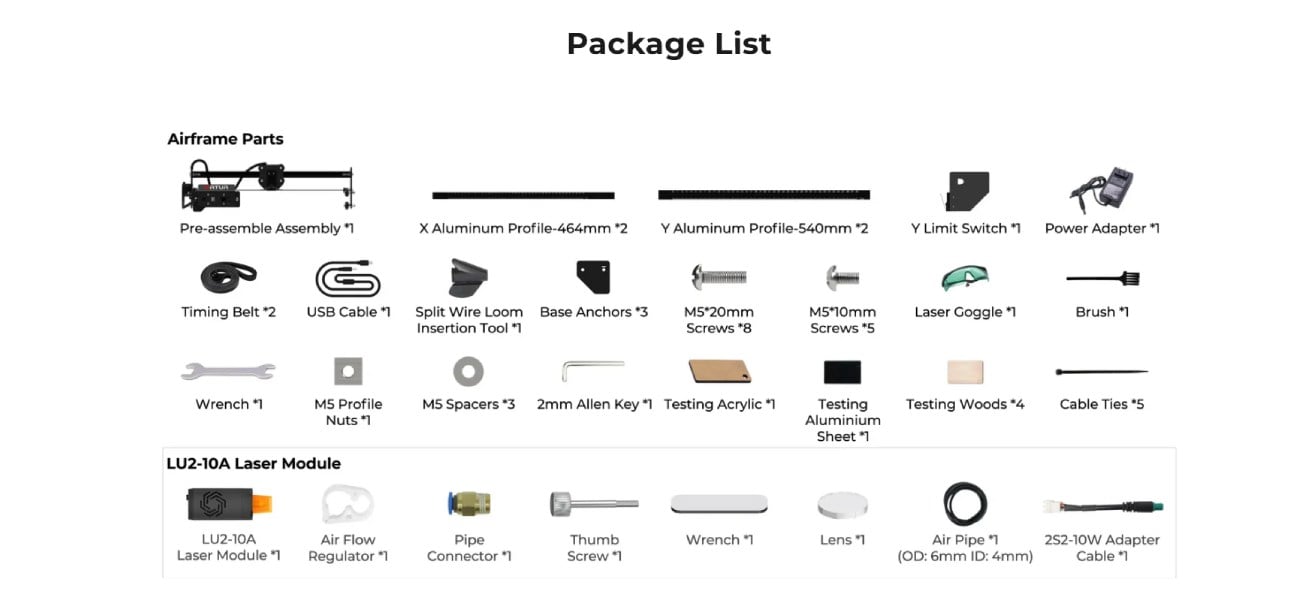

Ortur LM2 S2 10W Package Contents

The package is listed for the Ortur LM2 S2 with the LU2-10A laser module with a power of 10W. Protective housing, honeycomb table, compressor, and other additional equipment are purchased separately.

• Pre-assembled X-axis unit — 1 pc.
• Aluminum profile X length 464 mm — 2 pcs.
• Aluminum profile Y length 540 mm — 2 pcs.
• Y-axis limit switch — 1 pc.
• Power supply unit — 1 pc.
• Timing belt — 2 pcs.
• USB cable — 1 pc.
• Tool for threading cable into split sheath — 1 pc.
• Frame support brackets — 3 pcs.
• Screws M5 × 20 mm — 8 pcs.
• Screws M5 × 10 mm — 5 pcs.
• Protective goggles — 1 pc.
• Brush — 1 pc.
• Wrench — 1 pc.
• Profile nut M5 — 1 pc.
• Spacers M5 — 3 pcs.
• Hex key 2 mm — 1 pc.
• Test acrylic plate — 1 pc.
• Test aluminum plate — 1 pc.
• Test wooden plates — 4 pcs.
• Cable ties — 5 pcs.
• LU2-10A 10W laser module — 1 pc.
• Air supply regulator — 1 pc.
• Air supply fitting — 1 pc.
• Laser module clamping screw — 1 pc.
• Module key — 1 pc.
• Spare lens — 1 pc.
• Air tube 6/4 mm — 1 pc.
• 2S2-10W cable adapter — 1 pc.

Specifications of the Ortur LM2 S2 Laser Machine

Recommendations for Precise and Safe Engraving

• Secure the workpiece firmly and check the focus accuracy.
• Perform a speed and power test on a sample fragment of the material before the main work.
• Adjust parameters according to the type, thickness, density, and coating of the workpiece.
• Organize smoke extraction from the working area.
• Place a non-flammable metal base under the workpiece.
• Wear protective goggles and do not leave the machine unattended during operation.

Order Ortur LM2 S2 10W

Ortur Laser Master 2 LM2 S2 10W can be ordered for engraving and cutting materials in a workshop, educational laboratory, or at home. Specialists will provide consultation, help select equipment, and compatible accessories.
