Industrial Transport Robot up to 600 kg

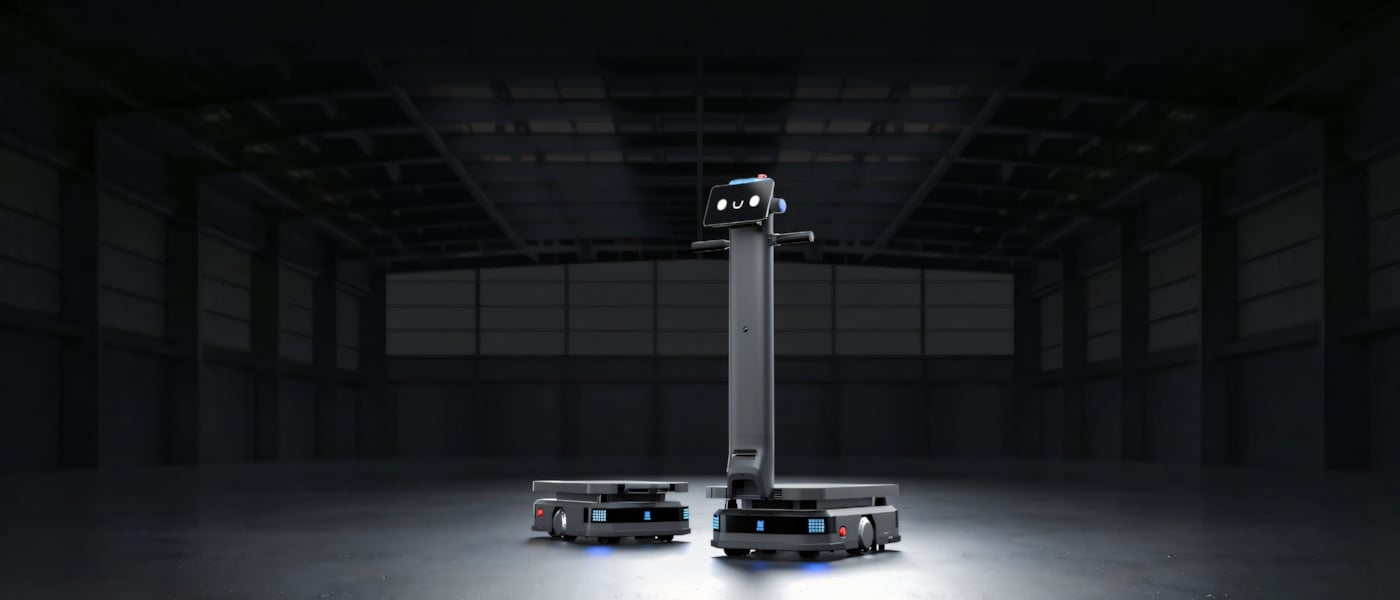

PUDU T600 Upright is an industrial autonomous transport robot designed for moving heavy loads in production and warehouse areas, with a load capacity of 600 kg, a lift of up to 60 mm, and a speed of up to 1.2 m/s. The series is available in Upright versions, supports autonomous navigation, rack operation, multiple robot coordination, and interaction with enterprise infrastructure.
Advantages of PUDU T600
- Transporting heavy loads with fewer trips. High load capacity allows for moving large batches of materials, parts, or production containers in one route.
- Autonomous operation with storage areas. Navigation tools and sensors help the transport robot recognize target positions and perform pickup and placement operations.
- Organizing movement in narrow aisles. The algorithm considers the route width and load weight, then chooses a one-way or two-way movement scheme.
- Movement between floors. The system tracks the status of all elevators and automatically directs to call a free cabin.
- Coordination of a group of robots. Support for the VDA5050 protocol allows for integrating equipment into a common dispatch environment with compatible robots and control systems.
- Adaptation to route changes. The series is designed to operate in premises where production or warehouse planning may change.
- Support for long work cycles. Automatic charging and battery replacement options depending on the project configuration.
Features of the PUDU T600 Upright Version

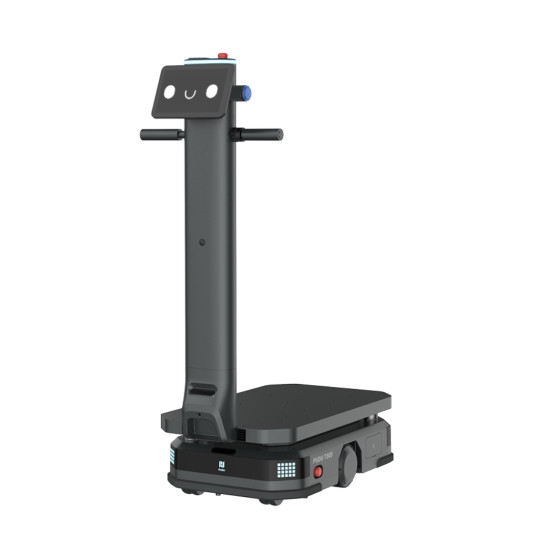

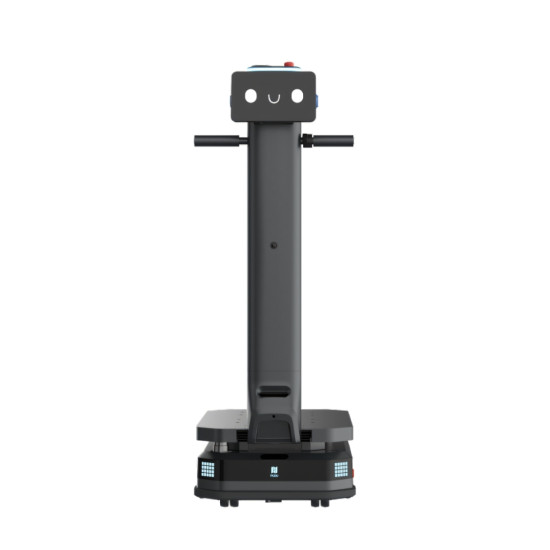

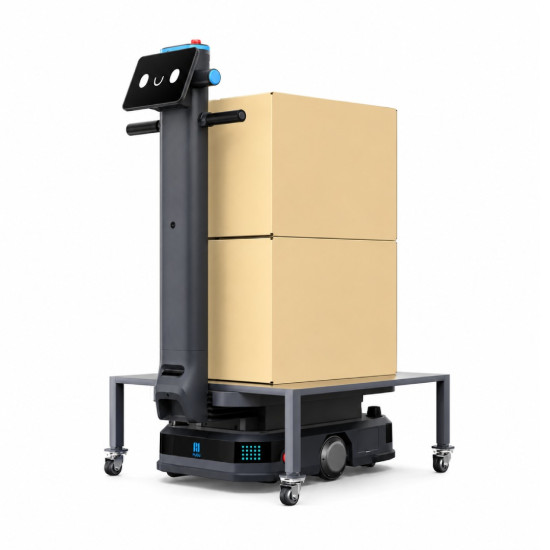

The PUDU T600 Upright has a vertical design measuring 960 × 500 × 1350 mm. The body is equipped with a touchscreen, handle, quick access buttons, and front light indicators. The robot can be controlled directly through the built-in screen, including without constant use of the central control system.
The Upright version uses combined navigation VSLAM and LiDAR SLAM. During manual movement, the operator can use the power assist switch on the handle. A linear projection on the floor marks the movement zone in front of the robot.
Navigation and Cargo Handling
The PUDU T600 Upright combines VSLAM and LiDAR SLAM to determine the robot's position and build a map using visual data, while LiDAR SLAM performs these tasks using laser measurements.

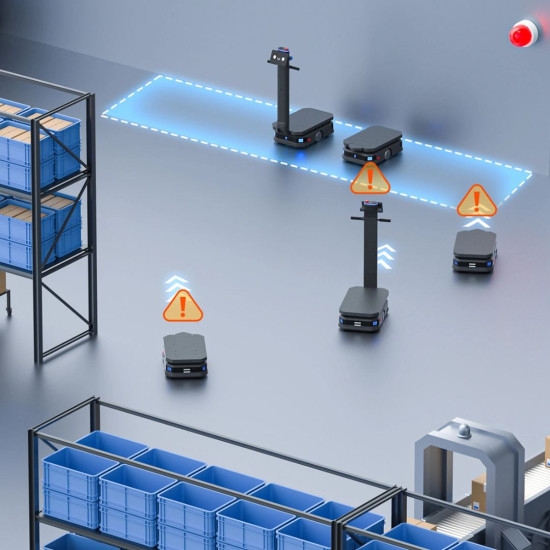

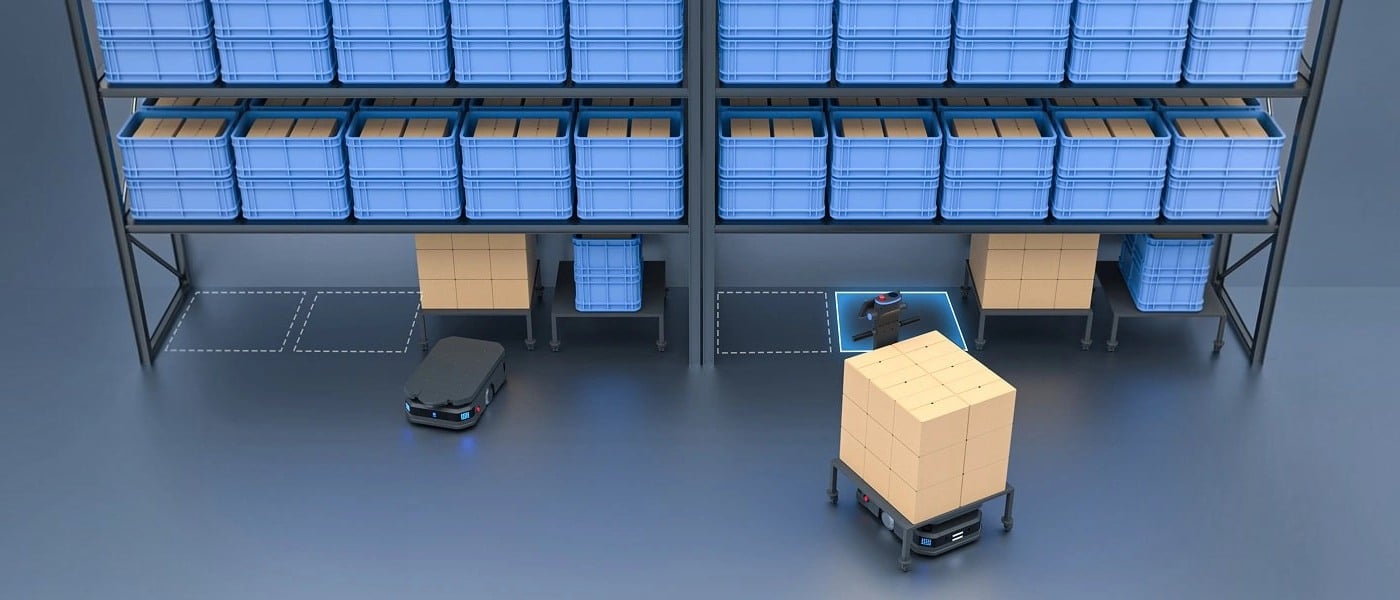

The series supports recognition of rack groups and target storage locations. The robot can autonomously approach the desired position and perform pickup and placement operations. When moving in narrow aisles, the algorithm analyzes the available width and actual load weight. Based on this data, the system determines whether robots can move in both directions simultaneously or if alternating passage is needed.
For a group of robots, route coordination in a shared work area is provided. During inter-floor transportation, the system can check the status of several elevators and give priority to the free one. Actual interaction with elevator equipment depends on its interfaces and project configuration.
Safety and Control

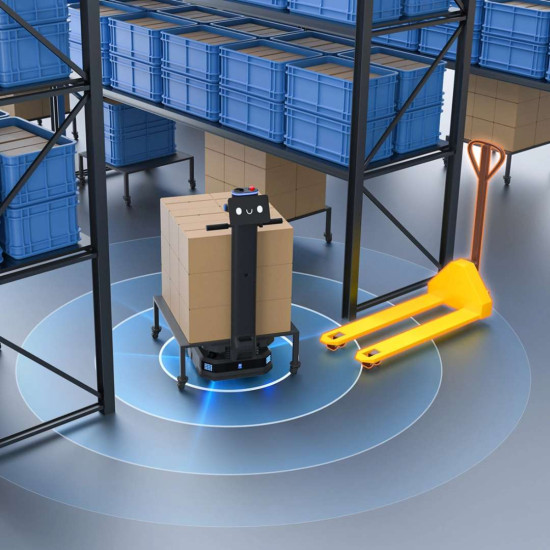

PUDU T600 recognizes low obstacles and can reroute to bypass them. A separate emergency response module can receive fire alarm or earthquake signals. After receiving a signal, the robot moves to a safe zone or stops at a designated location according to the configured scenario.

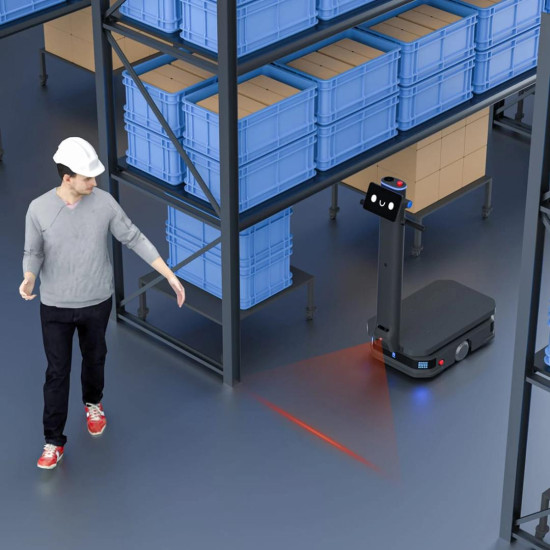

The PUDU T600 Upright is equipped with a touchscreen, handle, quick access buttons, and front light indicators. The power assist switch facilitates manual movement of the robot with a load, and the line projection on the floor warns people about the direction of movement.
Integration with Enterprise Systems
The PUDU T600 transport robot supports the standard VDA5050 communication protocol. It is designed for exchanging commands and data between autonomous mobile robots and compatible fleet management systems. The specific composition of commands, interfaces, and settings needs to be verified during the design phase.
IoT interaction includes managing electronic gates, calling and using elevators, task assignment via pager, and control through the Pudu Link app. Support for specific equipment depends on available interfaces, controllers, and the technical project.
Where PUDU T600 is Used
- Manufacturing enterprises. The robot delivers kits, materials, and production containers from the warehouse to work areas.
- Warehouses. The robot picks up compatible racks, and both versions can transport loads between storage and picking areas.
- Distribution centers. The industrial transport robot moves batches of goods between receiving, storage, and shipping areas.
- Automotive production. The robot with a load capacity of 600 kg can deliver parts, assemblies, and technological containers to assembly lines.
- Metalworking. The industrial transport robot transports blanks, parts, and containers between production areas.
- Internal logistics of large facilities. The robot serves long or inter-floor routes with passage through compatible gates and elevators.
Compatibility
The PUDU T600 configuration is selected considering routes, load type, and existing infrastructure. Connecting external equipment requires prior technical verification.
- Robot fleet management systems. Interaction with compatible solutions is possible via the VDA5050 protocol.
- Elevator management systems. Connections are used for automatic inter-floor transportation.
- Electronic gates and access control. IoT interaction can ensure the opening of passages along the route.

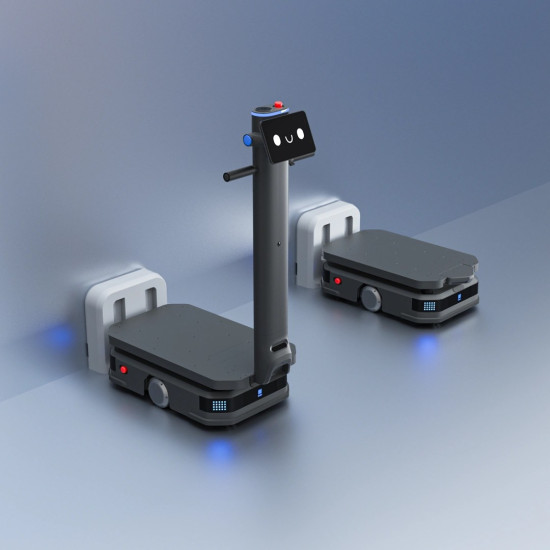

- Charging station or replaceable battery. The manufacturer claims support for automatic charging and battery replacement.
- Racks or platforms of the appropriate type. Their dimensions, pickup points, and permissible load must match the selected robot version.
Actual compatibility and the composition of additional equipment depend on the project, available interfaces, and operating conditions. The configuration depends on the selected version and delivery conditions. The exact list needs to be clarified before ordering.
Technical Specifications of PUDU T600 Upright
| Parameter | Value |
| Model Number | WTIDL2 |

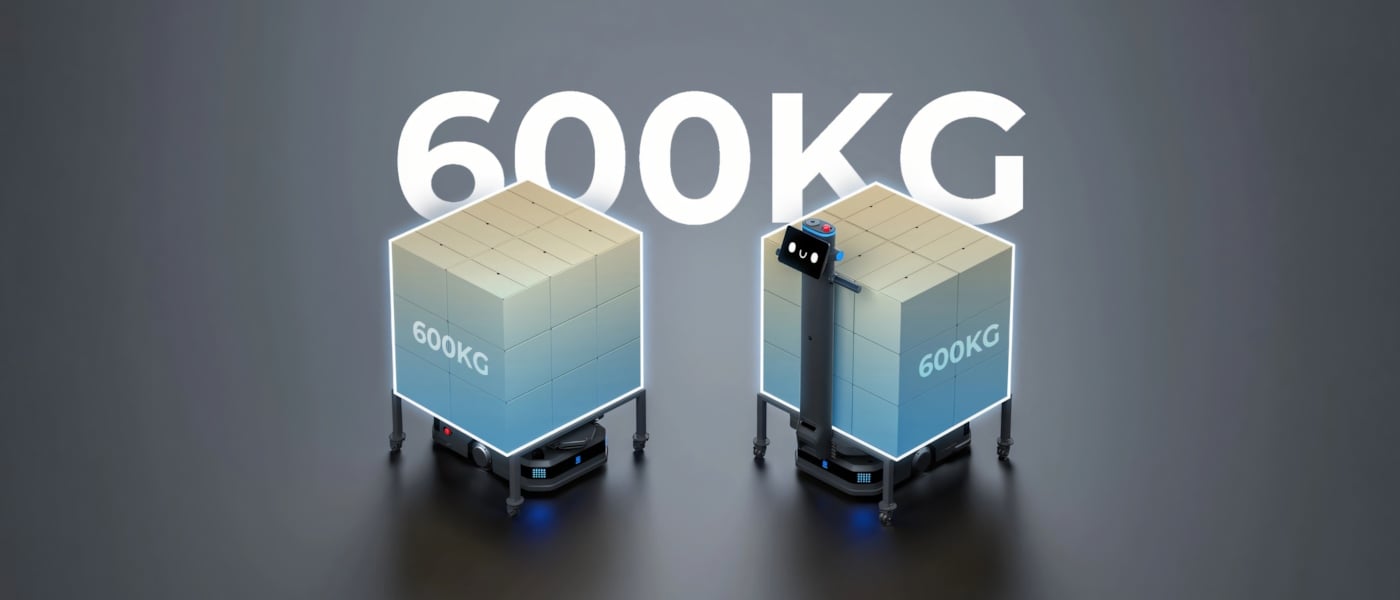

| Maximum Load | 600 kg |
| Lift Height | 60 mm |
| Battery Capacity | 30 Ah |
| Charging Time from 0 to 90% | 2 hours |
| Operating Time without Load | 12 hours |
| Speed | 0.2–1.2 m/s |
| Navigation Method | VSLAM + LiDAR SLAM |
| Minimum Passage Width | 70 cm |
| Maximum Obstacle Height | 10 mm |
| Maximum Gap Width | 35 mm |
| Operating Temperature | 0–40 °C |
| Net Dimensions | 960 × 500 × 1350 mm |
| Net Weight | 112 kg |
Tips Before Ordering
- Measure the minimum width of all passages on the route.
- Determine the weight, dimensions, and placement method of the load.
- Check the possibility of connecting to elevators, gates, and access control systems.
- Agree on the charging method, battery replacement, and operating temperature conditions.
