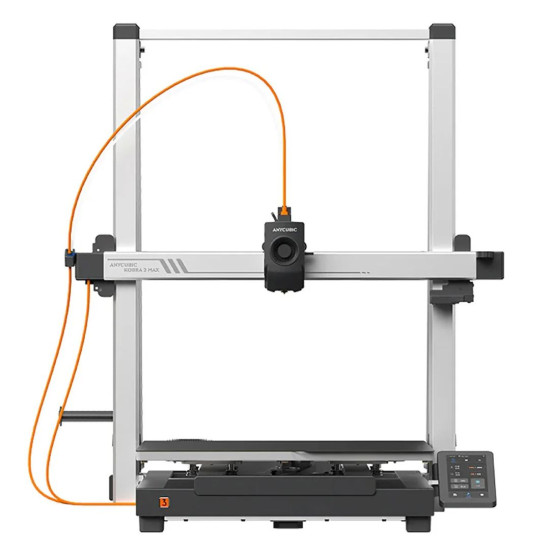

Anycubic Kobra 3 Max: Scalable Production and Intelligent Printing
The large 3D printer Anycubic Kobra 3 Max is a high-performance solution for large-format 3D printing, combining an impressive build area with active vibration compensation algorithms and multi-color extrusion. The printer is aimed at engineers, prototyping studios, and 3D farm owners who value speed without losing geometric precision.

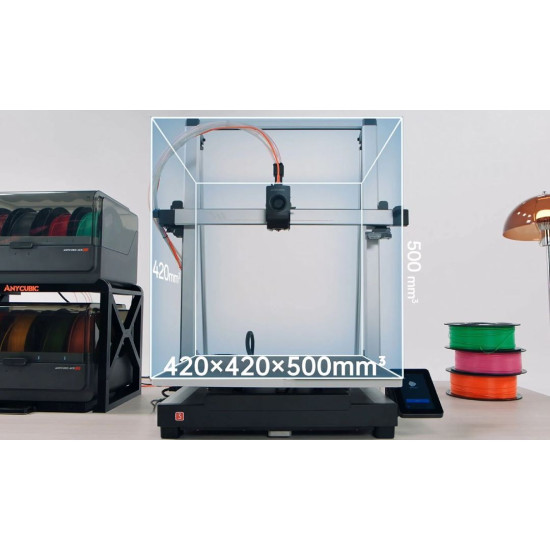

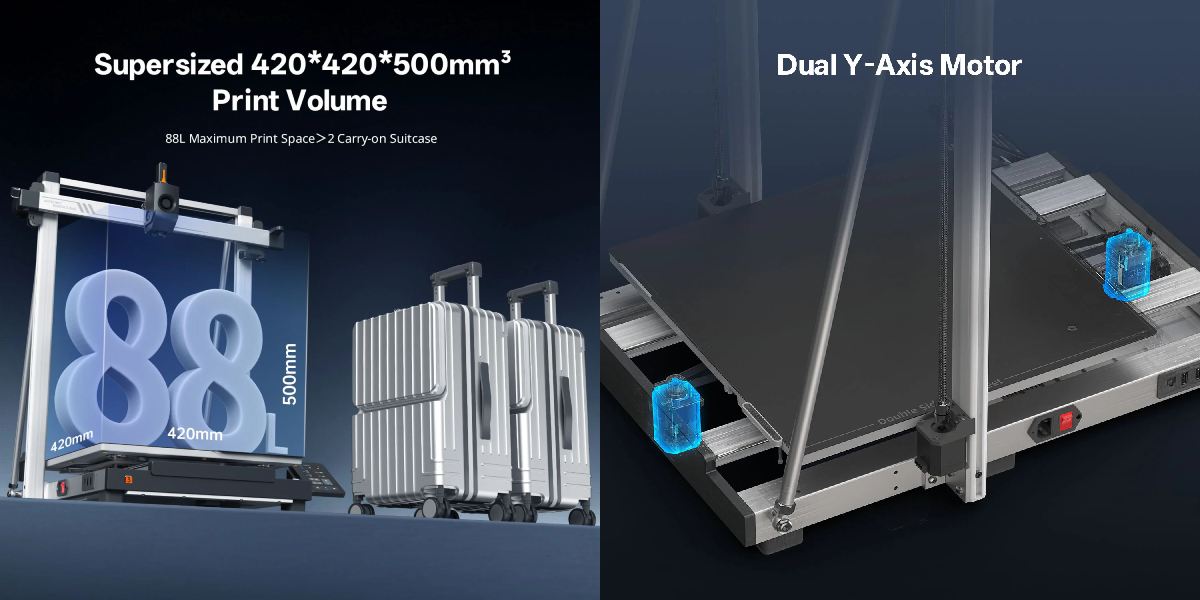

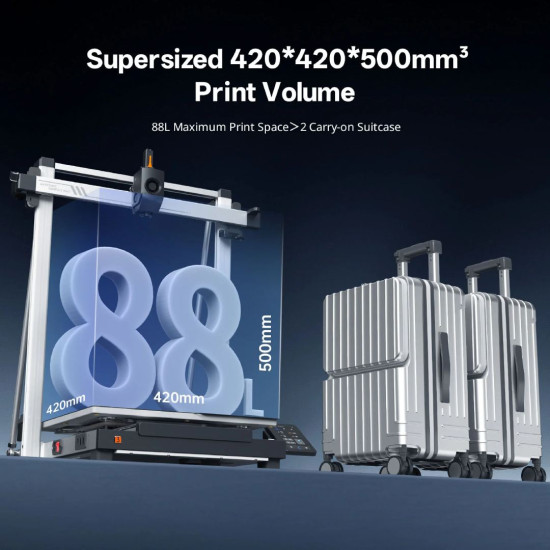

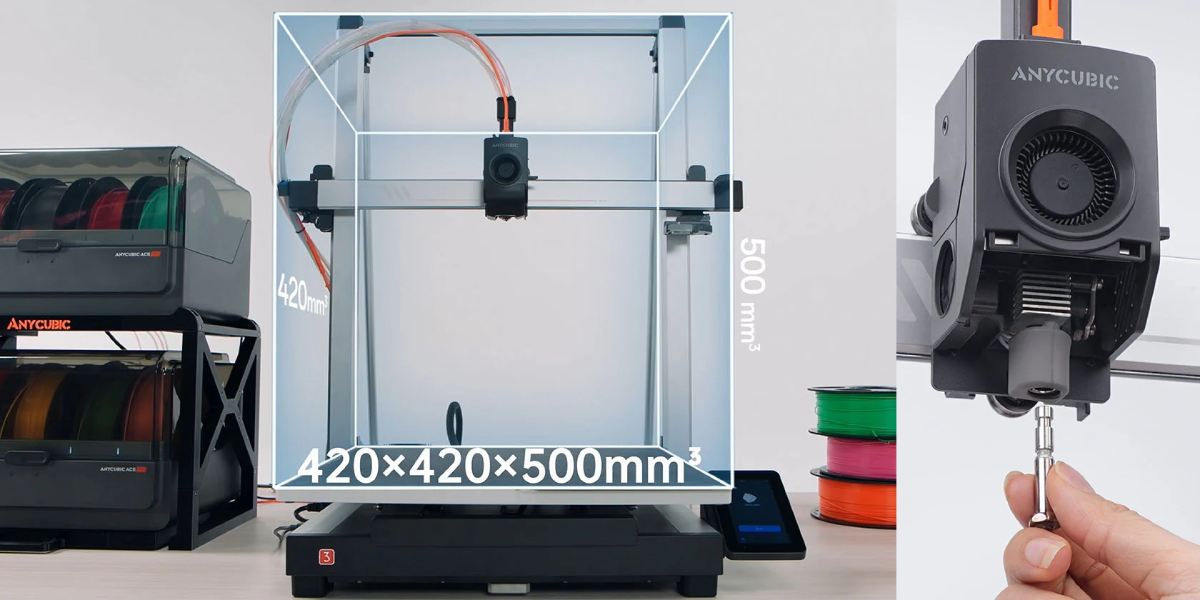

Kinematics and Print Volume: 420 x 420 x 500 mm
With a usable volume of 88 liters, the Kobra 3 Max allows for printing large-scale monolithic products, minimizing the post-processing and segment gluing stages.
- Structural Rigidity: Dual Z-axis screws are connected by a synchronizing belt to eliminate wobbling.
- Y-axis Stability: A reinforced base with dual motors ensures confident movement of the massive bed at high speeds without the risk of skipped steps.
- PEI Plate: Provides high adhesion and easy removal of finished models.

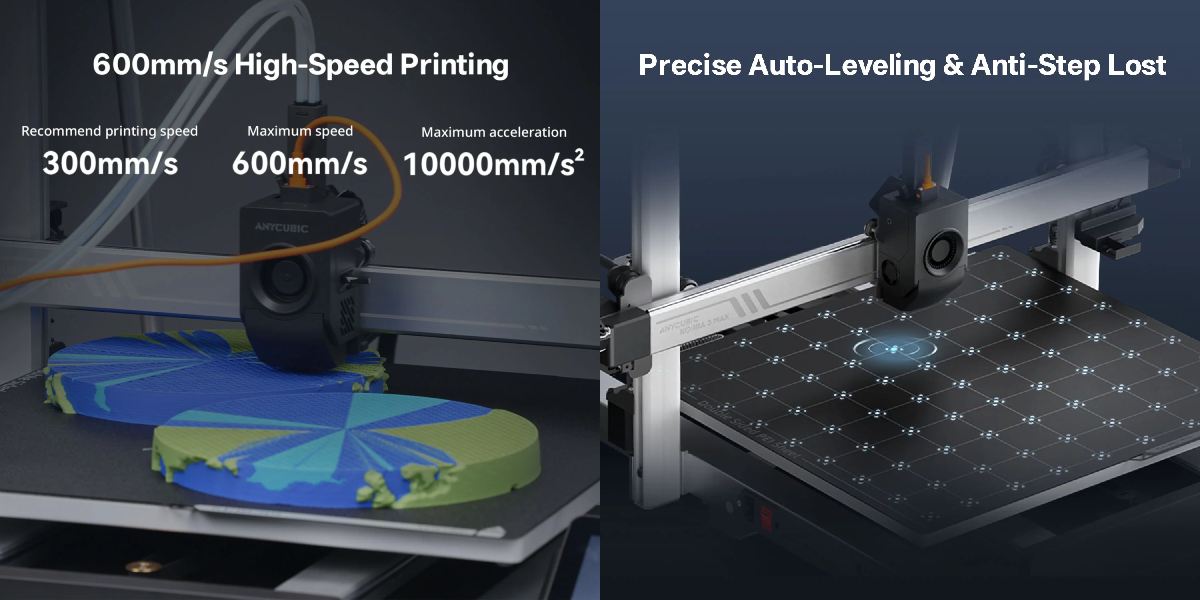

Speed and Dynamics: up to 600 mm/s
The printer is optimized for high-speed printing standards (Klipper-based algorithms):
- Acceleration: Up to 10,000 mm/s².
- Active Resonance Compensation: A built-in accelerometer allows the system to adapt to the inertia of the print head, eliminating the ghosting effect.
- Flow Control Algorithms: Automatic adjustment of filament feed for layer uniformity during manoeuvres.
Intelligent Monitoring Systems
Process automation minimizes the risk of defects, which is critical during multi-hour printing sessions.
Intelligent Functions:

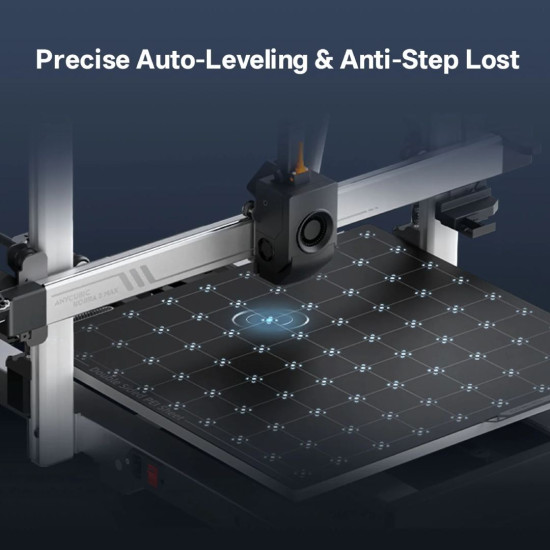

- LeviQ 3.0: Automatic leveling system with Z-axis offset calibration.
- AI Spaghetti Detection: Detection of printing errors ("spaghetti") using a camera (purchased separately).
- Skip Objects: Function to skip a failed object on the bed, allowing the remaining parts to be finished without losing the entire batch.
- Filament Tangle Detection: The system prevents damage if the thread gets stuck on the spool.
ACE Pro Ecosystem and Temperature Modes
- Multi-color Printing: Support for the ACE Pro system (up to 8 colors) with an active filament drying function during operation.
- High-temperature Hotend (300°C): Allows working with a wide range of thermoplastics: PLA, PETG, ABS, ASA, TPU.

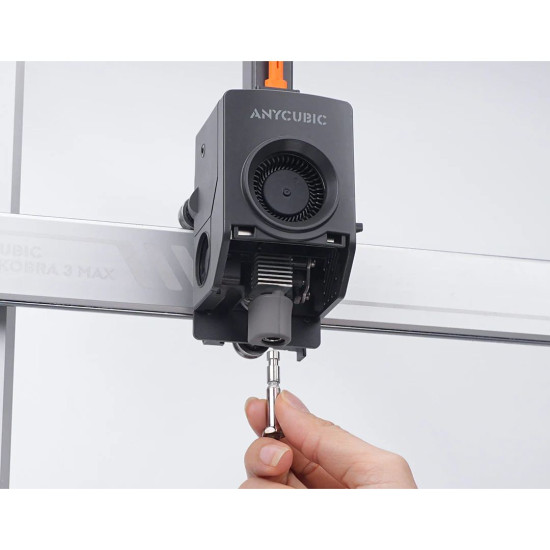

- Maintenance: A quick-release nozzle block simplifies routine maintenance and replacement of consumables.
Technical Specifications of Anycubic Kobra 3 Max
| Category | Parameter | Value |
|---|---|---|
| Printing Parameters | Print Area | 420 x 420 x 500 mm (88-liter volume) |
| Print Speed | Up to 600 mm/s (recommended — 300 mm/s) | — |
| Max. Acceleration | 10,000 mm/s² | — |
| Multi-color Printing | Support for 4 or 8 colors (when using ACE Pro) | — |
| Supported Materials | PLA, PETG, ABS, TPU (1.75 mm diameter) | — |
| Extruder and Nozzle | Extruder Type | Direct (short distance) |
| Nozzle Temperature | Up to 300°C | — |
| Hotend Design | Aerospace-grade ceramic tube | — |
| Nozzle Diameter | 0.4 mm (standard), replaceable with 0.6 / 0.8 mm | — |
| Print Platform | Bed Temperature | Up to 90°C |
| Bed Heating Speed | From 25°C to 60°C in 125 seconds | — |
| Platform Material | Magnetic PEI spring steel plate | — |
| Mechanics and Functions | Leveling System | Automatic LeviQ 3.0 + Z-Offset |
| Axis Construction | Dual motors on Y and Z axes, dual Z-axis screws | — |
| Smart Functions | Spaghetti detection (camera required), filament run-out and tangle sensor, resonance compensation, object skipping | — |
| Control and Connectivity | Interface | 4.3-inch touchscreen |
| Menu Languages | 9 languages, including Russian, English, and Chinese | — |
| Printing Methods | Via USB, Anycubic App, Anycubic Slicer Next | — |
| Physical Data | Device Weight | 19 kg |
| Weight in Packaging | 22.1 kg | — |
| Device Dimensions | 706 x 640 x 753 mm | — |
| Packaging Dimensions | 830 x 700 x 205 mm | — |
| Noise Level | ≤60 dB (in standard mode) | — |
Additional Information:
- AI Spaghetti Detection function requires a camera, which is purchased separately.
- TPU material is not compatible with the ACE Pro multi-color printing system.
Anycubic Kobra 3 Max 3D Printer Package Contents
Main Printer Units
- Bottom part of the printer (base)
- Gantry frame (Crane Frame)
- Printhead
- Touchscreen with a 4.3-inch diagonal
- Support Rods for structural reinforcement
Mounting Kits (Numbered Bags)
For ease of assembly, fasteners and small parts are separated by purpose:
- Bag 1: For gantry frame installation
- Bag 2: For support rod installation
- Bag 3: For fixing the printhead cable
- Bag 4: For printhead mounting
- Bag 5: For touchscreen installation
- Bag 6: For spool holder installation
Tools and Accessories
- Wrench set: one set of open-end wrenches and a set of hex keys (sizes 4.0/3.0/2.5/2.0/1.5)
- For filament: spool holder, 5 filament guide tubes, and a test length of material for trial printing
- For file handling: USB drive (U-DISK)
- For maintenance: Nozzle Cleaner needle and Grease
- Cables: two power cables, a cable holder, and 6 wire organizers
Please note: A user manual and unboxing video instructions are also included to facilitate the first launch process.
Applications
- Industrial Prototyping: creating full-size functional mock-ups and housing parts.
- Small-batch Production: efficient bed loading with many small parts for 24/7 operation.
- Modeling and Architecture: printing complex urban planning models in a single cycle.
- Props and Cosplay: monolithic printing of helmets and armor elements.
Software Ecosystem and Intelligent Management
The digital foundation of the Anycubic Kobra 3 Max is built on the proprietary Kobra OS firmware, ensuring stable operation of all printer units. The primary tool for model preparation is Anycubic Slicer Next – a deeply redesigned version of the popular open-source Orca solution.
The slicer is specifically optimized for Anycubic algorithms, achieving exceptional slicing accuracy and high-quality finish surfaces. For those who prefer mobility, the Anycubic App (iOS/Android) is provided: it turns a smartphone into a control panel, allowing for remote monitoring of printing in real-time and viewing the history of completed tasks from anywhere in the world.
To buy Anycubic Kobra 3 Max means to obtain a complete intelligent station for additive manufacturing. Combining an impressive print volume of 88 liters, record speeds up to 600 mm/s and the ACE Pro ecosystem for multi-color 3D printing, the device removes technical barriers for engineers and designers. Thanks to smart vibration compensation algorithms and monitoring automation systems, the printer guarantees stability and professional product quality, turning the creation of complex large-scale models into a predictable and highly efficient process.
