3D Printer Flashforge Creator 5 Pro for Multi-Material FDM Printing
Flashforge Creator 5 Pro is an FDM/FFF 3D printer with a build volume of 256 × 256 × 256 mm, designed for manufacturing engineering parts, prototypes, and serial batches. The device is equipped with a FlashSwap system with four independent printing blocks, as well as a closed chamber with active heating. The design allows working with technical and composite materials that require high heating temperatures of the hotends and a stable environment.
Technical Capabilities and Design Solutions of Flashforge Creator 5 Pro
- FlashSwap Multi-Extrusion System: simultaneous installation and autonomous operation of up to 4 independent extruders to combine different materials or colors during one printing cycle.
- Tool Change Without Waste Formation: direct nozzle change mechanics eliminate the need for creating draft blocks (standby towers) and plastic purging when changing material or color.
- Heated Chamber up to 65 °C: the closed case with forced chamber heating reduces internal stress in materials, preventing deformation, shrinkage, and delamination of ABS, ASA, Nylon, and PC.
- High-Speed Parameters: the printer's kinematics are designed for a printing speed of up to 300 mm/s with acceleration up to 30,000 mm/s².
- Filtration System: two-stage air purification includes a combined HEPA filter of class H13 and activated coconut shell carbon to capture dust and fumes.
- Automatic Calibration: the built-in system independently levels the work platform, measures the mutual position of the nozzles, and performs vibration compensation (Input Shaping).
- Print Monitoring: an integrated HD camera (1280 × 720) is used for remote observation of the process and recording time-lapse videos.
Design and Operating Modes of Printing Units
Autonomous FlashSwap Extruders
The presence of four independent printing heads allows for the following modes:
- Duplication Mode: simultaneous printing of two identical models.
- Mirror Mode: parallel production of a part and its symmetrical copy.
- Printing with Soluble Supports: using PVA or BVOH materials to form complex internal channels and overhanging elements.
- Material Combination: combining rigid plastics with flexible ones (e.g., TPU) in one product.
FlashSwap Modules and Nozzle Heating up to 320 °C
The design allows for the installation of interchangeable FlashSwap modules — from standard heads to high-temperature units with nozzle heating up to 320 °C, intended for composite filaments.
Temperature Stability in the Chamber
Maintaining a temperature of 65 °C inside the chamber throughout the entire printing cycle improves interlayer adhesion and prevents corner detachment in massive products made from engineering thermoplastics.
Material Compatibility
The printer works with the following types of filaments:
- Standard and Flexible: PLA, PETG, TPU, as well as support materials (PVA, BVOH).
- Construction Plastics: ABS, ASA, PC, Nylon (PA), PP.
- Composites: materials reinforced with carbon or glass fiber (PACF, PET-CF, PP-GF, PA-GF).
- High-Temperature Thermoplastics: PPA-CF, PPA-GF, PPS-CF.
Usage Recommendation: when printing with composites containing carbon or glass fiber, use wear-resistant hardened nozzles (Hardened Nozzle from the FlashSwap series) and feed the filament from an external drying box to prevent moisture absorption.

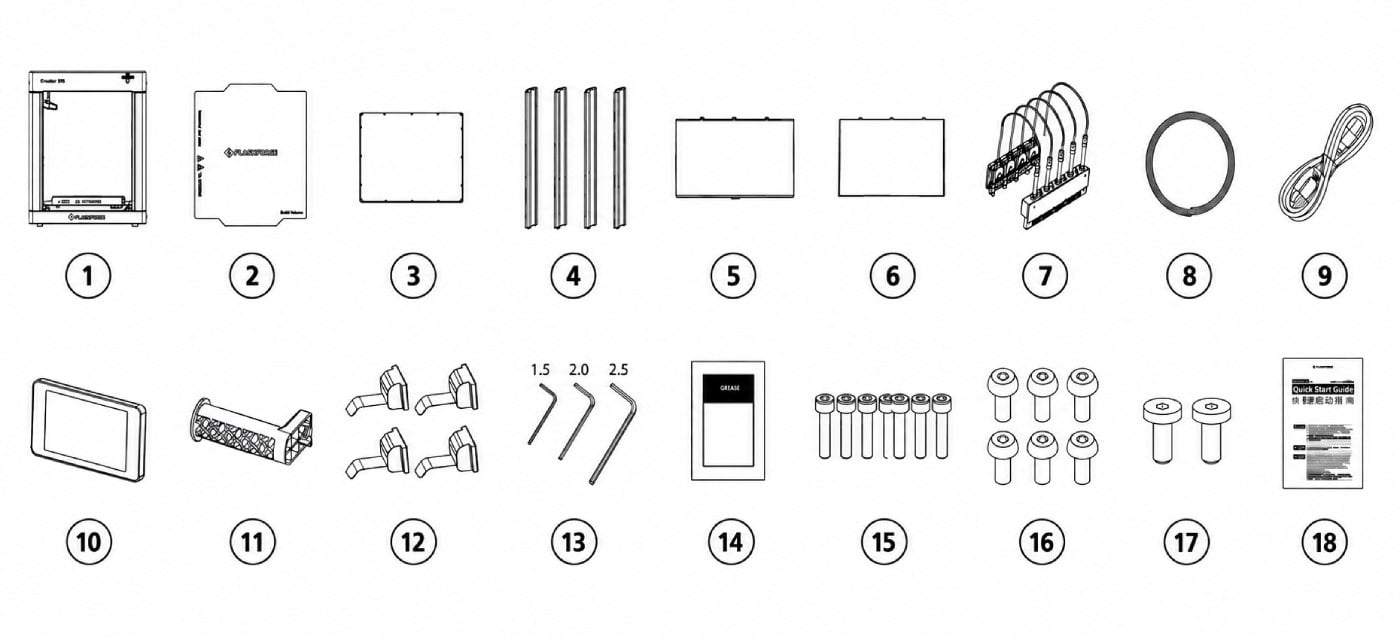

Package Contents
- 3D Printer Flashforge Creator 5 Pro — 1 pc.
- Work Plate — 1 pc.
- Bottom Case Panel — 1 pc.
- Support Rods — 4 pcs.
- Front Door — 1 pc.
- Back Case Panel — 1 pc.
- Extruder Parking Module — 1 pc.
- Filament Weighing 1 kg — 4 spools.
- Power Cable — 1 pc.
- Display — 1 pc.
- Spool Holders — 4 pcs.
- Nozzle Caps — 4 pcs.
- Hex Keys 1.5, 2.0, and 2.5 mm — 3 pcs.
- Lubricant — 1 pc.
- Screws M3 × 14 — 4 pcs.; Screws M3 × 16 — 2 pcs.
- Self-Tapping Screws ST2.9 × 8.5 — 2 pcs.
- Screws M8 × 6 — 2 pcs.
- Quick Start Guide — 1 pc.
Technical Specifications
| Parameter | Value |
| Printing Technology | FDM / FFF |
| Chamber Type | Closed |
| Printing System Type | FlashSwap |
| Number of Nozzles | 4 |
| Filament Diameter | 1.75 mm |
| Standard Nozzle | 0.4 mm |
| Supported Nozzles | 0.25 / 0.4 / 0.6 / 0.8 mm |
| Max. Nozzle Temperature | 320 °C |
| Max. Platform Temperature | 120 °C |
| Max. Chamber Temperature | 65 °C |
| Max. Travel Speed | 600 mm/s |
| Max. Printing Speed | 300 mm/s |
| Max. Acceleration | 30,000 mm/s² |
| Max. Volumetric Productivity | 32 mm³/s |
| Working Surface | Textured Flexible PEI Plate |
| Max. Printing Area | 256 × 256 × 256 mm |
| Automatic Platform Leveling | Yes |
| Material Feed Control | Filament End Sensor and Automatic Flow Calibration |
| Air Filtration System | HEPA H13 Filter + Activated Carbon |
| Monitoring Camera | Built-in HD Camera 1280 × 720, 30 fps |
| Display | 4" Touch Color Screen 800 × 480 |
| Built-in Memory | Yes |
| Connection Interfaces | USB, Wi-Fi |
| Dimensions Without Filament Holders | 441 × 411 × 460 mm |
| Device Weight | 18 kg |
Warranty and Service Support
The 3D printer Flashforge Creator 5 Pro comes with a 12-month warranty. Our specialists provide consultation support for selecting settings for consumables and configuring printing processes.
Order Placement
You can place an order for Flashforge Creator 5 Pro on the Center 3D Print website or by contacting the company's phones. Our managers will provide technical information on choosing configurations and compatible consumables. Delivery is carried out by transport services throughout Ukraine.
