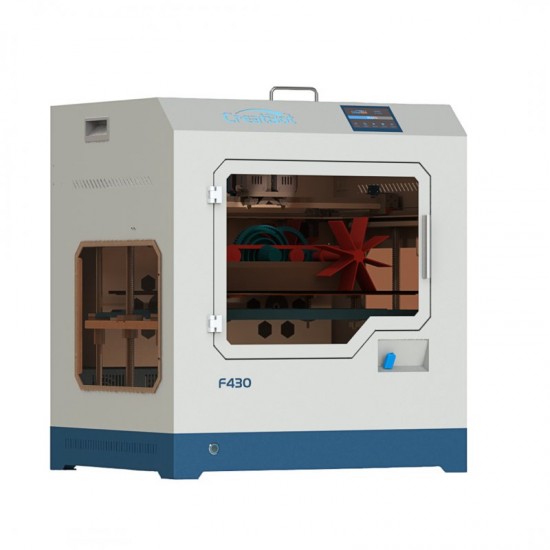

3D printer CreatBot F430

What is interesting about the CreatBot F430 3D printer

Almost all devices of the CreatBot range are represented in our store , and we are proud to present you a new product - the CreatBot F430 3D printer. The presented model belongs to the advanced line of desktop FDM 3D printers and surpasses many devices for 3D printing in its capabilities. Below we list the features of the device:

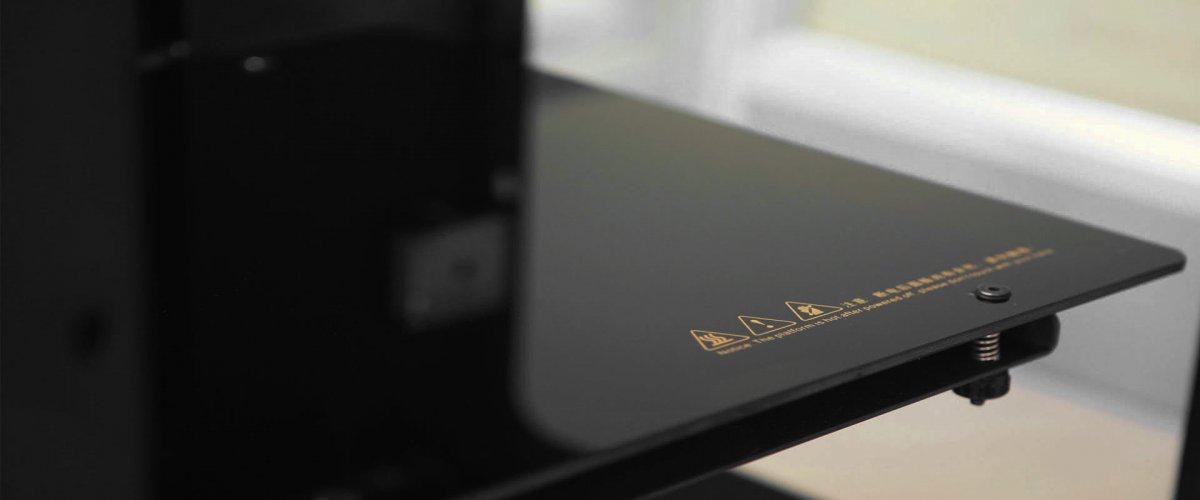

  • Heated platform. The printer table is made of aluminum and can be heated up to 110 °C. A special BuildTak coating is applied to the platform, thanks to which the models adhere firmly to the table and do not deform during the printing process;

3D printer CreatBot F430 heated platform

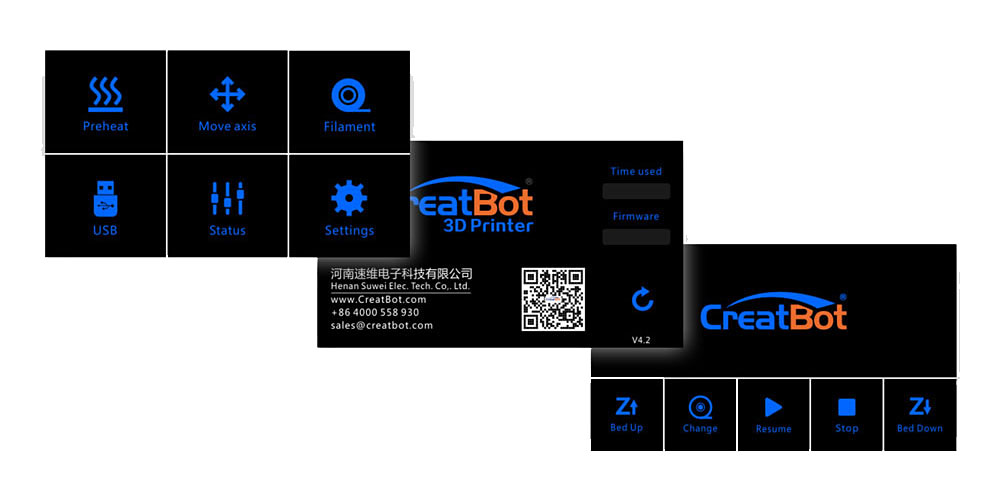

  • Touch screen. The menu of the device is designed very simply and clearly, it will not be difficult to understand the controls. Starting 3D printing and setting the necessary parameters is performed in several movements;

3D printer CreatBot F430 screen

  • Carbon fiber panel. The printer platform is equipped with a carbon fiber panel that transfers heat well. This is a detachable panel that can be easily bent in order to capture an object;
  • Built-in air filter. Absorbs gases and toxic fumes when 3D printed with some types of 3D plastic . Thanks to this, the CreatBot F430 3D printer can be used in offices, living quarters and schools without limiting oneself in materials.

CreatBot F430 advantages

We have listed the features of the device, but did not say the main thing - how the CreatBot F430 3D printer differs from most 3D printing devices. Its strengths are described below:

  • High precision and speed of printing. The presented 3D printer is equipped with reliable mechanics and a unique plastic feeding system, due to which the reproduction of products in excellent quality at high speed is ensured. 3D printing accuracy reaches 40 microns;
  • Quality and stability. The body of the device is made of high-strength steel, which not only increases the reliability of operation, but also extends the life of the printer. The device is equipped with quality components that ensure stable operation of the device;

3D printer CreatBot F430 body

  • Extruder temperature up to 420 ˚С. An incredibly high extruder temperature is a characteristic feature of almost all CreatBot devices, and the CreatBot F430 3D printer was no exception. It is equipped with two extruders and supports a wide variety of 3D printing plastics;

3D printer CreatBot F430 extruder

  • Fully enclosed housing. This design blocks all external interference, reduces noise during 3D printing, and also provides a uniform mode for stable operation with some types of plastic (ABS, PC, PA, etc.);

3D printer CreatBot F430 buy in Poland

  • Restoring printing on power failure. Now the 3D printing process is insured against sudden power surges or power outages. In this case, CreatBot F430 3D printer automatically remembers the current position and saves the print data. After the power is restored, 3D printing will resume from the same place;

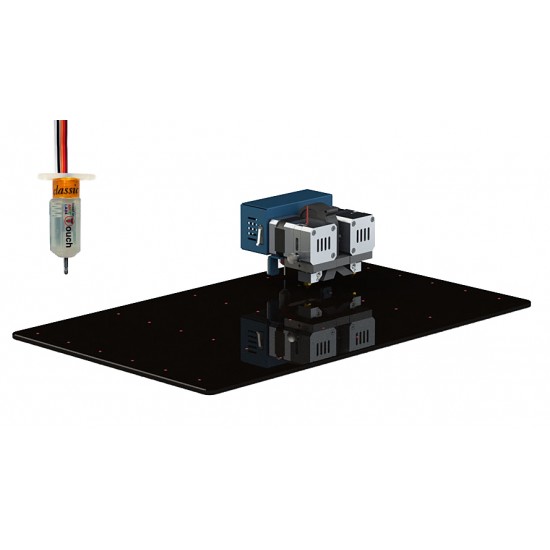

3D printer CreatBot F430 auto-calibration

  • Plastic feed sensor. You no longer need to worry about running out of plastic during the reproduction of products, and the printer will continue to print as if nothing had happened. The CreatBot F430 3D printer is protected from unproductive 3D printing: if the filament has run out, it will pause and issue a warning signal.

Specifications

Printing technologyFDM
Plot area400 x 300 x 300 mm
Number of extruders2
Print accuracy40 microns
Layer height20 microns
Thread diameter1.75 mm

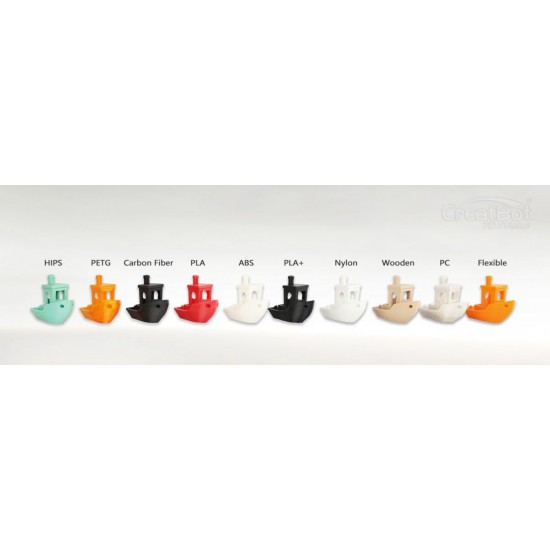

Suitable 3D plasticPLA, PLA +, ABS, ABS +, ASA, Elastan, Plastan, Primalloy, Carbon Fiber, Nylon (PA), PC, PETG, HIPS, PP, CoPET, PET, POM, Flexible, TPU, PVA, PEEK, ceramic, conductive, fireproof, bronze, copper, aluminum, brass, wood plastic, etc.
Nozzle diameter0.4 mm (0.2, 0.3, 0.5, 0.6, 0.8, 1.0 mm also available)
File type for printingGCode, GCO
Ambient temperature15-32 °C
Maximum nozzle temperature420 °C
Maximum platform temperature110 °C
Max. pace. heating chamber70 °C
Optimal print speed55 mm/s
Maximum print speed180 mm/s
Maximum speed of carriage movement200 mm/s
DesignPowder steel, aluminum moving parts, POM plastic
Platform materialMicrocrystalline ceramic panel
Platform CalibrationAutomatically
Extruder typeDirectly drive
Stepper motorsStep angle 1.8° with microstep 1/16
XY Positioning Accuracy12.7 microns
Z-axis positioning accuracy1.25 microns
Energy consumption100-240 V, 50-60 Hz
Maximum power300 watts
Control4.3 inch touch screen
InterfaceUSB
Data carrierUSB disk
SoftwareCreatWare in different languages
Supported filesSTL, OBJ, AMF
operating systemWindows (7,8,10), Mac OS X
Overall dimensions620 x 485 x 680 mm
The weight48 kg
Dimensions in packing750 x 580 x 720 mm
Shipping weight62 kg

Main page


The main
Plot area 400х300х300 mm
FDM printer options
Printing technology FDM
Feeder type Direct
Other options
Maximum carriage speed (mm/s) 20
