3D printer Formlabs Form 3BL Complete Package
Form 3BL 3D printer Complete Package is a modern medical photopolymer 3D printer and a complete set of equipment for it. By purchasing the Form 3BL Complete Package, you can immediately start high-quality 3D printing of large models in your medical institution, laboratory or dental office.
Complete set benefits
This is an exclusive offer from the Center 3D Print store, which you will not find anywhere else on the Poland market!
Buying a set of 3D printer Form 3L Complete Package, you get:
- Save money. The cost of the Complete Package is much cheaper than buying each product separately.
- Printed elements quality guaranteed. You'll get all the Formlabs Form 3BL ecosystem devices at once. This guarantees you an immediate start of fully automated high-precision medical 3D printing with reproducible printing results.
- Formlabs Medical Professional Service Plan. You can choose 1, 2 or 3 years of Service Plan.
- Free training. We provide a free training on 3D Formlabs equipment purchased at the Center 3D Print store.

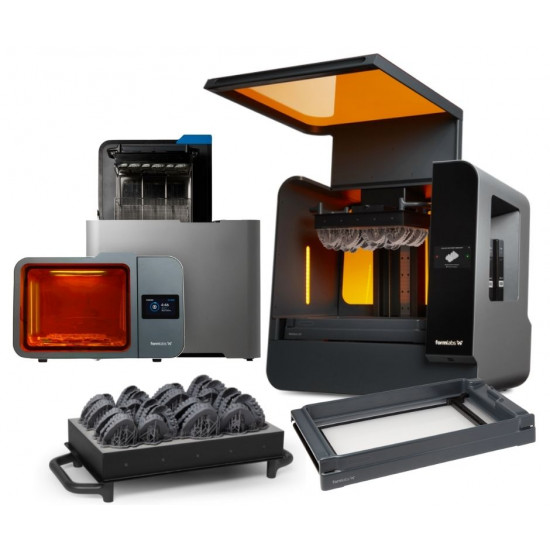

Complete Wholesale Package: what's in the box
This offer contains the following components:
- 3D printer Formlabs Form 3BL
- Form 3L Resin Tank V3
- Form 3L Build Platform 2L
- Form 3L Finish Kit: Cleaning Tools
- Formlabs Form Wash L V1
- Formlabs Form Cure L V1
- Standard Resin – 1 Cartridge Free
- Formlabs PreForm Software
- 1 year Basic Warranty*
*You can choose 1, 2, or 3 years of Medical Professional Service Plan from the Available Options above.
Form Wash L automates the process of washing large parts. It makes the process stable by thoroughly cleaning the uncured polymer. Form Wash L is compatible with all Formlabs 3D printers.
In the polymerizer Formlabs Form Cure L is automated the final formation of the crystal lattice and curing of the photopolymer. Acquisition of the material with the best properties to the maximum indicators with increase of durability and productivity of details. Form Cure L accurately combines heat and light with a wavelength of 405 nm for sequential polymerization of the material in printed parts. Compatible with all Formlabs 3D printers.

Medical 3D printer Form 3BL for serial 3D printing
| Details | |
| Printing Technology | LFS |
| Layer Height (µm) | 25 - 300 |
| XY resolution (micron) | 25 |
| Printing Accuracy (µm) | 25 |
| Laser Characteristics | Two lasers 250 mW power Wavelength 405 nm Laser spot 85 μm Certification EN 60825-1:2007 |
| Resin Cartridges | 2 |
| Resin Filling System | Automatic |
| Supported Materials | Photopolymer resin. Available biocompatible materials |
| Supports | Autogenerated, Light-Touch Removal |
| Control | 5.5″ Colored touchscreen |
| Supported File Formats | .STL, .OBJ, .FORM |
| Supported Operating System | Windows 7 (64-bit) or Mac OS X 10.12 and higher; OpenGL 2.1; 4 GB RAM (8 GB recommended) |
| Software | PreForm, Dashboard, Fleet Control |
| Connectivity | Wifi, Ethernet, USB 2.0 |
| Power Requirements | 100~240 V, 650 W, 8.5 A, 50-60 Hz |
| Manufacturer Country | USA |
| Warranty Period (months) | 12 |
| Printer Options | |
| Build Volume (mm) | 335 × 200 × 320 |
| Weight & Dimensions | |
| Weight Netto (kg) | 54,4 |
| Minimum Access Dimensions (mm) | 900 × 960 × 1040 |
| Dimensions Assembled (mm) | 770 × 520 × 740 |
| Weight Brutto (kg) | 61,0 |
Medical Service Plan (MSP)
Available for Form 3B+, Form 3BL and Form 4B, Form 4BL. Available in North America and EMEA only.
Compare Benefits
All Formlabs hardware comes with a basic one-year limited warranty, phone and email support. Purchase a Medical Professional Service Plan to extend your coverage further and also get all these great benefits.
| Basic Warranty |
Medical Service Plan |
|
| Duration | 1 year |
Up to 5 years |
| Printer/Component Replacement |
✔ |
✔ |
| Hot Swap |
✔ If troubleshooting doesn't get you back to printing, we'll expedite a replacement. |
|
| Chat & Email Support |
✔ |
✔ |
| Phone Support |
✔ Mon - Fri 9 am - 6 pm ET and CET. Phone support by our team. Multilingual support in English, German, Italian, French. |
✔ Mon - Fri 9 am - 6 pm ET and CET. Priority phone support by our team of dedicated experts. Multilingual support in English, German, Italian, French. |
| Training |
✔ Training Videos |
✔ Training Videos & Live Q&A Schedule a live session with a Certified Medical Agent to ask questions about your specific workflow. |
Premium 3D Printing Support, Made for Medical Professionals
Your business needs a 3D printing solution you can rely on for nonstop production. Behind our Medical Service Plan is a dedicated team of certified medical 3D printing specialists who know exactly how to support your healthcare facility.
Basic Warranty
Our included warranty provides peace of mind and access to support resources
- One-year warranty
- Printer/Component Replacement
- Chat & Email Support
- On-demand resources through Formlabs support site
Medical Service Plans
Consultations from Medical Experts
Schedule a consultation with a trained and certified expert in regulatory affairs and quality assurance.
Priority phone and email support
Priority phone and email access to our team of dedicated experts.
Training videos and a live Q&A
Watch our onboarding videos to get started and schedule a live Q&A with one of our experts to answer any questions about your workflow or applications.
Hot swap expedited printer replacement
Ensure constant uptime: Formlabs will ship you a replacement printer to keep you printing if your printer needs to be repaired or replaced.
Warranty for the duration of the plan
The Medical Professional Service Plan extends the one-year warranty included with your printer to the full duration of the chosen plan.
Terms and conditions apply. Please see the Formlabs Medical Service Plan Terms of Service for more information.
Form 3L |
Form 3BL |
|||
Basic |
Complete |
Basic |
Complete |
|
| 3D Printer | ✔ |
✔ |
✔ |
✔ |
| F3L Resin Tank V3 |
✔ | ✔ | ✔ |
✔ |
| F3L Build Platform |
✔ | ✔ | ✔ | |
| F3L Build Platform 2L |
✔ | ✔ | ||
| Form 3L Finish Kit: Cleaning Tools |
✔ | ✔ | ✔ | ✔ |
| Form 3L Finish Kit: Rinse Bucket V2 |
✔ |
✔ |
||
| Standard Resin – 1 Cartridge Free | ✔ |
✔ |
✔ |
✔ |
| Form Wash L V1 |
✔ |
✔ |
||
| Form Cure L V1 |
✔ | ✔ | ||
| PreForm |
✔ | ✔ | ✔ | ✔ |
| 1 Year Basic Warranty |
✔ |
✔ |
✔ |
✔ |
| Pro Service Plan: 1, 2 or 3 Years | Optional | Optional | ||
| Dental and Medical Service Plan: 1, 2 or 3 Years | Optional | Optional | ||
