Reliable CreatBot DX 3D printer
CreatBot DX 3D printer is the latest 3D printer with a huge print area: 300 * 250 * 300 mm.

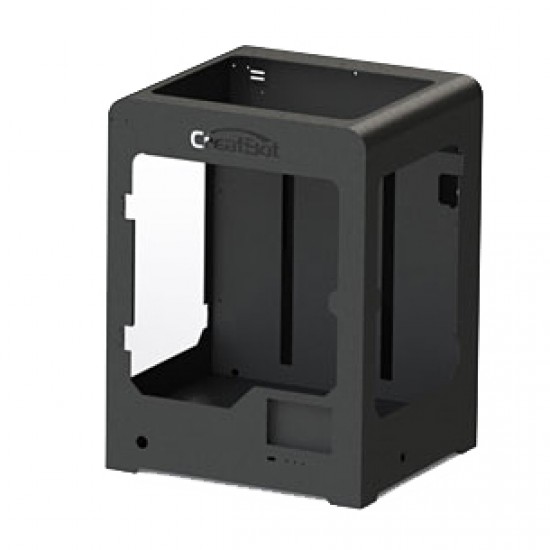

The cast and very durable metal body of the CreatBot DX 3D printer allows you to print at maximum speeds without losing print quality.
The stepper motor is located in the back of the printer that allows to reduce weight of a head and to reach high speed.

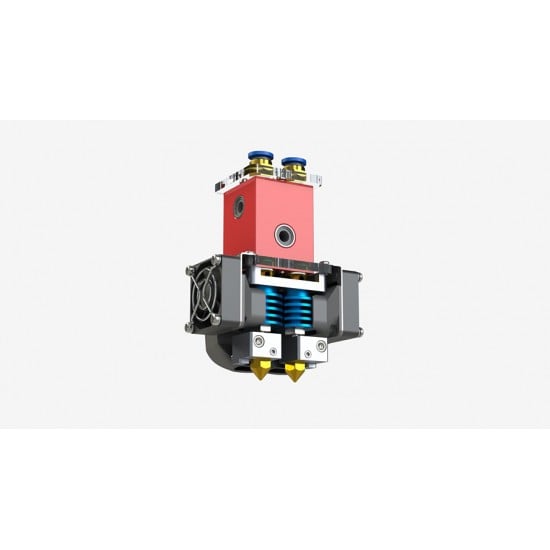

In the CreatBot DX 3D printer, the extruders have an intelligent cooling system, thanks to which the plastic is fed at the optimum temperature. The design, which allows you to adjust the height of the nozzle, allows you to adjust multiple nozzles more quickly and easily, which provides perfect accuracy when printing color models. The CreatBot DX 3D printer supports 3D printing with three heads.
CreatBot DX is the latest 3D printer equipped with a power management module. This feature automatically turns off the 3D printer when printing is complete. When printing is complete and there is no keyboard operation for five minutes, the system automatically shuts down the printer. This feature is very useful and reduces the power consumption of the printer.
The CreatBot DX 3D printer is equipped with a multifunction control panel that provides direct access to a specific function at the touch of a button. The keyboard has 9 keys. Auxiliary functions include: to move up and down the Z shaft, heating or cooling the platform, pausing or resuming printing, and other unique software features.
Gear motors make more revolutions compared to conventional stepper motors, which makes it easier to slide the thread and increases the accuracy of the plastic. The design of the roller is also designed to ensure the supply of plastic without damaging the thread.
The ceramic platform with heating provides uniform heating, and thermal efficiency is considerably improved that allows to reduce energy consumption considerably. The platform has a smooth silicone-based surface, so it has a longer service life.
The metal tray of the platform is stiffer, which reduces vibration during operation. The metal bracket for mounting the tray is up to 10 mm thick, so the platform heats up very quickly and evenly.

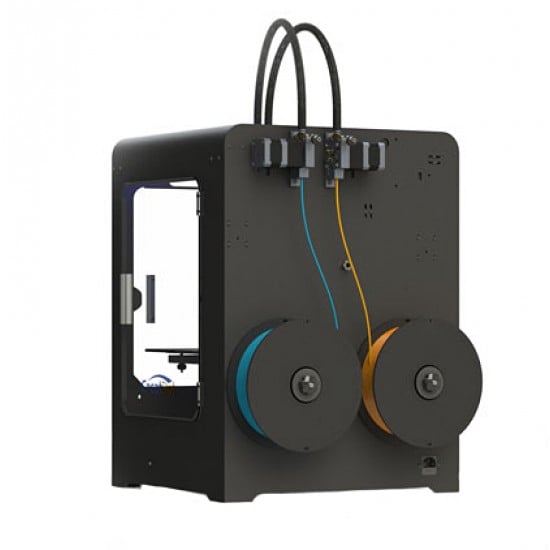

The plastic feed mechanism is located in the rear of the machine, providing the maximum lightness of the nozzle head. Similarly, the supply of plastic from below allows you to achieve maximum speed during printing.
- Cast steel body
- Construction area: 300 * 250 * 300 mm
- Support two / three extruders
- Support 3.0 / 1.75mm plastic thread
- High-precision mechanics + a reliable steel case allow to conduct 3D printing at extreme speeds without risk of damage to the printer or to spoil a detail.
The manufacturer reserves the right to change the characteristics of the equipment without notice.
- Power cable;
- USB cable;
- Scotch tape for 3D printing;
- SD card with software;
- Spare parts;
- A set of tools for mechanics (wrenches, wrenches);
- SD card adapter;
- User manual in English;
- Set of tools (spatula, screwdriver, wrenches, tweezers, drill, needle)
- 2 packs of ABS or PLA plastic
|FDM printer options|
|Minimum layer height (micron)||50|
|Build Field (mm)||300*250*300|
|Ø of plastic (mm)||1,75 (3,0 or 2,85 optional)|
|Print temperature (°C)||Up to 270|
|Number of extruders||2 (3 optional)|
|Heating the chamber||No|
|Nozzle Diameter (mm)||0,4 (optional 0,3; 0,5; 0,6; 0,8; 1,0)|
|Positioning accuracy (µm)||XY: 12,7; Z: 1,25|
|Printing accuracy (µm)||50|
|Print speed (mm/s)||From 40 to 200|
|Maximum nozzle temperature (°C)||260|
|Heating the platform||Yes|
|Maximum platform temperature (°C)||100|
|Stepper Motors||1.8° Step Angle with 1/16 Micro-stepping|
|Platform material||Glass Ceramic Panel|
|Supported Materials||PLA, ABS, Carbon Fiber, PETG, etc.|
|Operating system||Win7/8/10, MacOS|
|Printer control||4.3" Touch Screen|
|Assembly type||Supplied assembled|
|Body material||Powder steel, aluminum for motion components|
|Features||Save data when power is off; Pause printing when filament run out; Turn off the power automatically when printing is complete|
|Supported file types||GCO, GCODE, STL, OBJ, AMF|
|Software||CreatWare, Simplify 3D, Cura, Slice 3r, etc|
|Power supply||100-240V, 50-60Hz, 350W|
|Warranty period (months)||12|
|Weight Netto (kg)||25|
|Dimensions Assembled (mm)||420*380*570|
|Weight Brutto (kg)||35|
|Dimensions Brutto (mm)||550*500*670|
|Suggested Operating Environment|
|Operating Temperature Range (°C)||15-32|
