3D printer CreatBot D600
3D printer CreatBot D600 with print volume of 600 x 600 x 600mm, heated bed and high nozzle temperatures (up to 420 degrees Celsius) allow you to print exceptional large color objects.
Perfect for use in industry, education and design.
The main advantages of the CreatBot D600 3D printer:
- use of plastic with a diameter of 3 mm (1.75 mm optional);
- the presence of 2 nozzles;
- metal chassis;
- large print volume 600 x 600 x 600 mm;
- ultra-high temperature extruder (420 Celsius);
- translucent camera;
- ease of cleaning removable panels;
- Feeder gear motors installed;
- the presence of a ceramic heated platform (100 Celsius);
- the presence of a metal tray for the heated platform;
- direct plastic feed.
3D printer CreatBot D600
This printer has a huge 600 x 600 x 600mm print area and the fastest printing speed on the 3D printer market. This 3D printer is equipped with the CoreXY system, which provides stable and accurate printing of 0.05mm, which means high quality 3D printing . The CoreXY system can print at 120 mm/s.

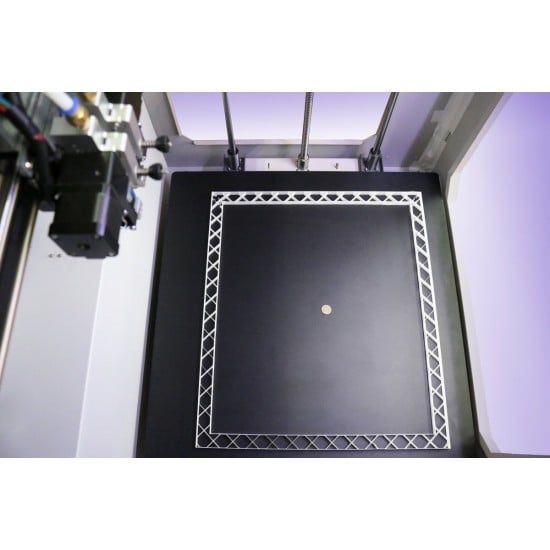

The CreatBot D600 3D printer is equipped with a tempered glass heated platform, as well as extruders that can print at a temperature of 400 degrees. These characteristics allow the maximum variety of materials used for 3D printing. Perfectly suited ABS, of PLA, PVA, HIPS, Wood, Nylon, PETG, Rubber, Flexible, Copper, Bronze, Primalloy and others.
The 3D printer has a durable metal body. This allows you to print at high temperatures and at high speeds. The semi-closed camera allows you to monitor the printing process.

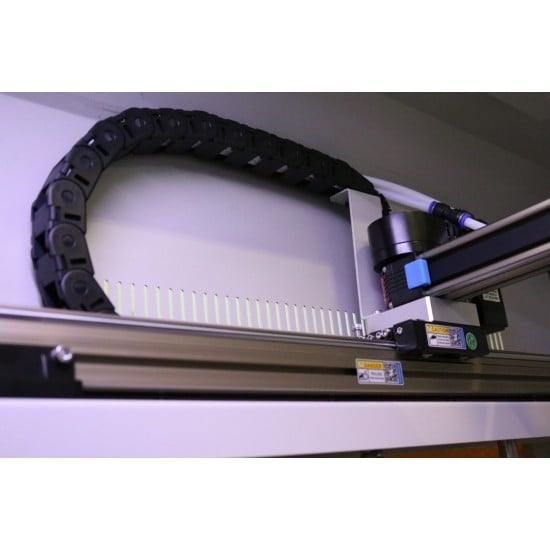

With the stepper motors located at the back of the printer, the printhead is lighter and faster.
In addition to being able to print large objects at high speed, the CreatBot D600 3D printer is also capable of printing objects with high levels of detail and high resolution.
The extruders have replaceable nozzles and are available in 0.2 mm, 0.3 mm, 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm and 1.0 mm for high detail and high speed printing. You can print large prototypes with high strength at high speeds, or small thin objects with high detail. The CreatBot D600 large 3D printer can print large nozzles up to 1.2 mm in diameter. This allows the printing layers to be thicker and wider for stronger adhesion between layers. As a result, the print time of the object is significantly reduced.
The CreatBot D600 large 3D printer is equipped with an intelligent sensor that detects the presence of filament. If filament runs out or breaks, the printer pauses and waits for you to insert filament, and then resumes printing where it left off.
Modular power management supports the automatic shutdown of the printer after printing.
The multifunction display shows information about the status of the 3D printer and allows you to make adjustments to the operation of the printer. You can easily change the print temperature, print speed, flow rate and fan speed, pause, pause or resume printing.
You can save files to the supplied SD card and print directly from the printer interface without the need to connect to a personal computer. The controls allow you to make adjustments while you type.
|FDM printer options|
|Minimum layer height (micron)||50|
|Build Field (mm)||600*600*600|
|Ø of plastic (mm)||3 (1,75 optional)|
|Print temperature (°C)||Above 270|
|Number of extruders||2|
|Heating the chamber||No|
|Nozzle Diameter (mm)||0,4 (optional 0,2; 0,3; 0,5; 0,6; 0,8; 1,0)|
|Positioning accuracy (µm)||ХY: 5,08; Z: 1,25|
|Printing accuracy (µm)||50|
|Print speed (mm/s)||From 45 to 120|
|Maximum carriage speed (mm/s)||200|
|Maximum nozzle temperature (°C)||420|
|Drying thread temperature (°C)||45|
|Heating the platform||Yes|
|Maximum platform temperature (°C)||100|
|Stepper Motors||1.8° Step Angle with 1/16 Micro-stepping|
|Platform material||Borosilicate glass bed|
|Supported Materials||PLA, ABS, PLA+, ABS+, ASA, HPLA, Elastan, Plastan, Primalloy, Flex, TPU, TPE, PMMA, PET, POM, PEEK, PA (Nylon), PA6, Conductive ABS, Flame Retardant, Marble White PLA, Ceramic, Aluminium, Copper, Bronze, Brass and Gold PLA filaments, Wood, Carbon Fiber, PC, PETG, HIPS, PP, PVA|
|Operating system||Windows (7,8,10), Mac OS X|
|Printer control||4.3″ Multilingual Touch Screen|
|Assembly type||Supplied assembled|
|Body material||Powder steel, aluminum for motion components|
|Features||Save data when power is off; Pause printing when filament run out; Turn off the power automatically when printing is complete|
|Supported file types||STL, OBJ, AMF, GCO, GCODE|
|Software||CreatWare, Simplify 3D, Cura, Slic3r|
|Power supply||100~240V, 50~60Hz, 1000W|
|Warranty period (months)||12|
|Weight Netto (kg)||125|
|Dimensions Assembled (mm)||915*845*1085|
|Weight Brutto (kg)||165|
|Dimensions Brutto (mm)||940*1010*1320|
|Suggested Operating Environment|
|Operating Temperature Range (°C)||15 - 32|
