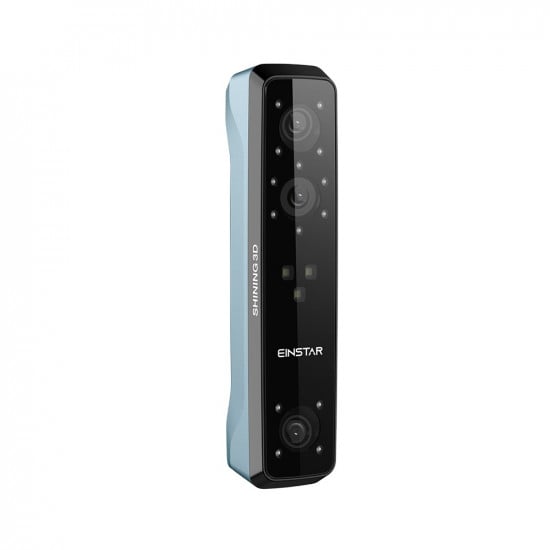

Affordable Shining 3D Einstar 3D scanner
Need an affordable 3D scanner? Consider the Shining 3D Einstar, an inexpensive portable 3D scanner that makes high-quality color 3D copying accessible to everyone.
The standard delivery kit includes the portable 3D scanner itself with Exstar software and a lightweight carrying case with accessories: silicone cover, quick start guide, positioning markers, soft lens cloth, carrying strap, power supply and USB cable.
Einstar 3D scanner application
The scanner supports multiple output formats that are compatible with 3D printers and 3D design software. So using your Einstar creates a wide circle for creativity: 3D printing, 3D design, creating digital archives, education, culture and art, virtual and alternative reality.

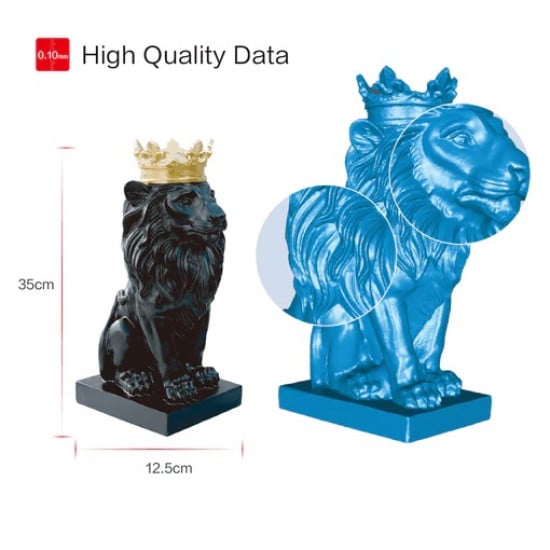

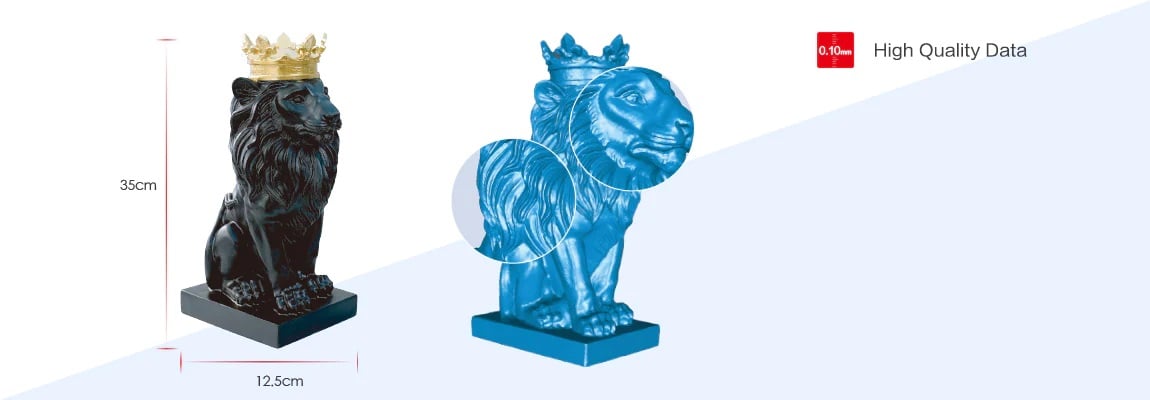

High quality 3D data
The scanner easily collects data at 14 frames per second, creating a high-density point cloud with a point distance of up to 0.1 mm.

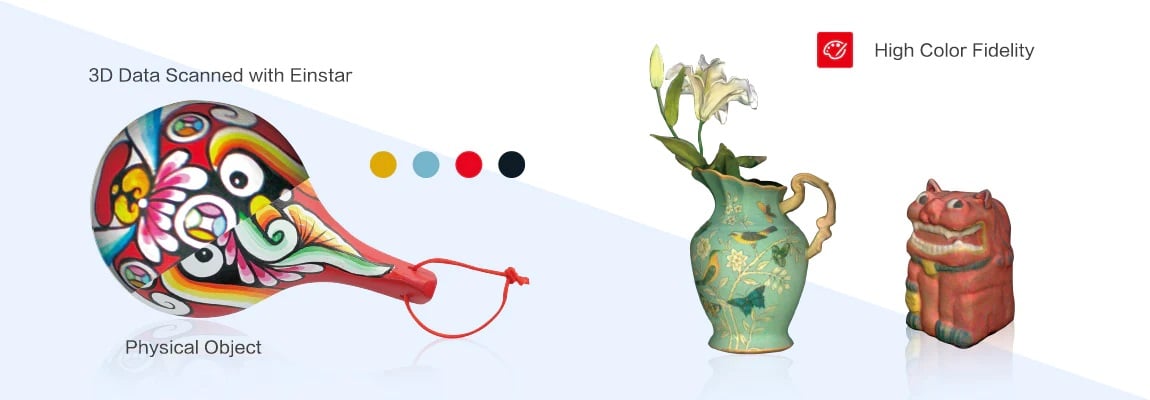

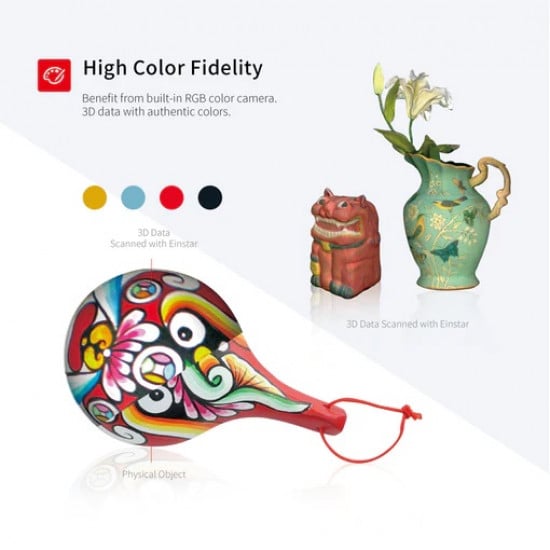

High-quality color reproduction
Take advantage of the built-in RGB color camera and get 3D data with authentic colors.

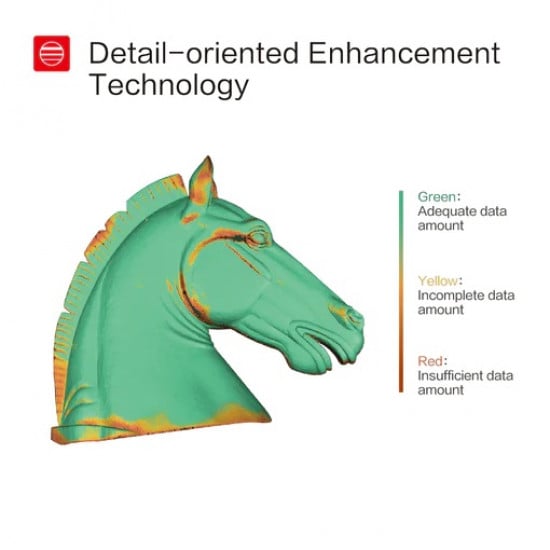

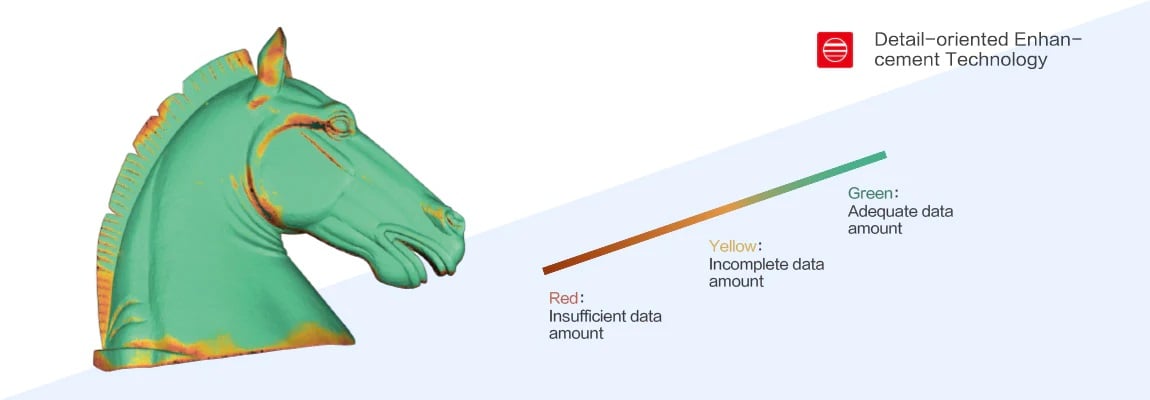

Detail-oriented improvement technology
Built-in detail enhancement technology optimizes the point cloud for complete data collection.
- Green: Sufficient data volume
- Yellow: The amount of data that needs to be improved
- Red: insufficient data volume
Optimized user experience
Smooth and fast scanning with intelligent alignment algorithm and excellent tracking performance.

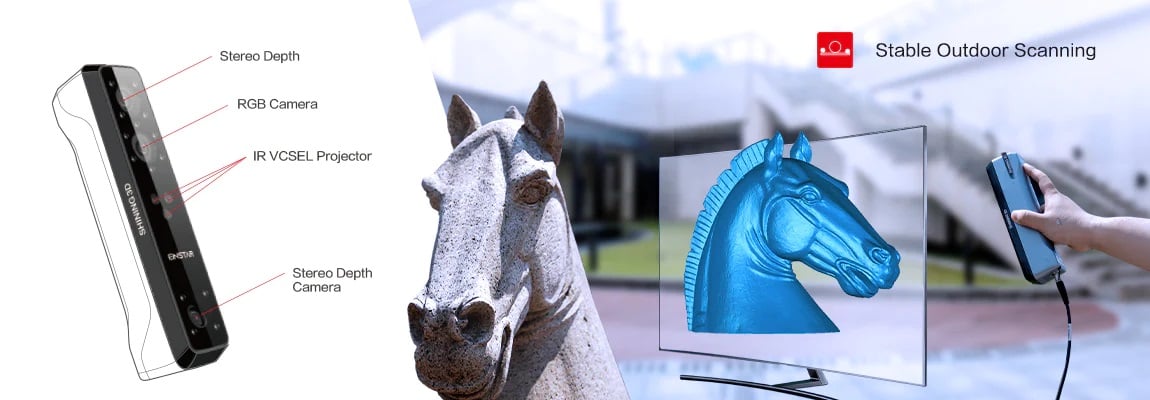

Stable outdore scanning
The Shining 3D Einstar scanner is equipped with three VCSEL infrared projectors, 2 stereo depth cameras and 1 RGB camera. Thanks to this equipment, it can obtain clear 3D images of objects with stable results even outdoors. Provides flexible working distance for small and large objects.

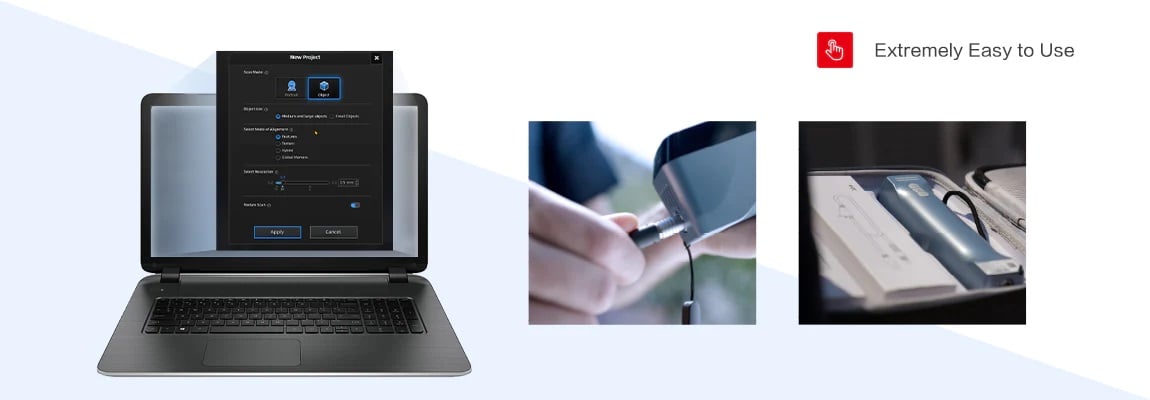

Ease of use
- Ergonomic design supported by light weight and small size
- Only one USB cable for data transfer and power
- Clear and elegant workflow of scanning and further data processing with step-by-step guidance in the software
- Easy Plug-and-Play setup
Safe for eyes, scans hair
- Due to the absence of light projection during the process, an eye-safe scanning process is ensured.
- Enabling Hair Mode will ensure high-quality and complete data capture when scanning human or animal hair and body.

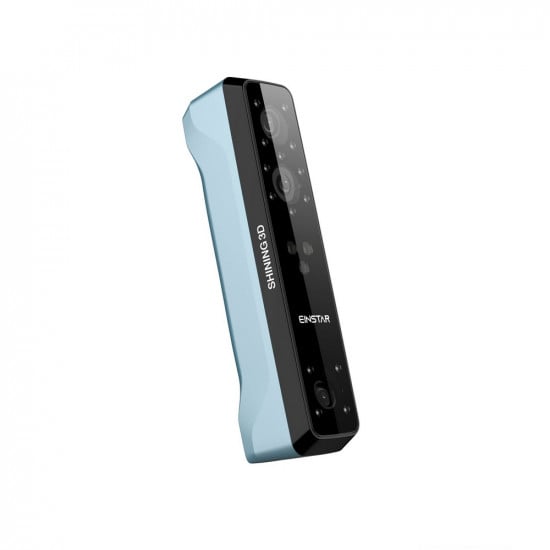

Budget color 3D scanner Einstar - buy in Poland
|Scanner 3D options|
|Light Source||Infrared VCSEL structured light|
|Scan Range (mm)||434 × 379|
|Stand-Off Distance (mm)||160 - 1400 (optimal - 400)|
|Scan With Marks||Yes|
|Scanning Speed (points/s)||980 000|
|Scanning Speed (frames/s)||Up to 14|
|Point Distance (mm)||0,1 - 3,0|
|Positioning Methods||Texture / Feature / Hybrid Alignment / Global Markers in Object Scan Mode|
|Laser Class||Certificated as Class 1 laser product|
|Features||Color Scanning, Outdoor Scanning, Eye-safe|
|Supported File Types||OBJ, STL, PLY, ASC, 3MF, P3|
|Connectivity||USB 2.0 or above|
|System Requirements||Recommended: OS: Win10/11, 64 bit; Graphics card: NVIDIA GTX1060; Video memory: ≥6GB; Processor: I7-11800H; Memory: ≥32GB. Basic: OS: Win10, 64 bit; Graphics card: NVIDIA GTX1050; Video memory: ≥4GB; Processor: I7-7700H; Memory: ≥16GB|
|Warranty Period (months)||12|
|Certifications||CE, FCC, ROHS, WEEE, KC|
|Weight & Dimensions|
|Weight Netto (kg)||0,5|
|Dimensions Netto (mm)||220 × 46 × 55|
|Dimensions Brutto (mm)||245 × 245 × 90|
|Operating Temperature Range (°C)||0 - 40|
|Operating Humidity Range (%)||10 - 90|
