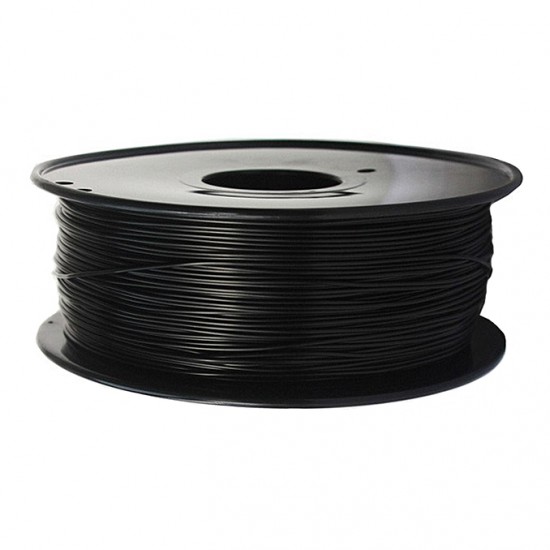

Conductive ABS plastic KLEMA 1.75 mm, 2.85 mm and 3.00 mm
Conductive ABS plastic KLEMA is available with a thread diameter of 1.75 mm, 2.85 mm or 3.00 mm and is available in coils. The thread is perfect for printed circuit boards and various devices that require electrostatic protection.
Black Conductive Acrylonitrile Butadiene Styrene (ABS) is a combination of carbon fiber, conductive material, ABS and black dye. It combines static dissipation and electromagnetic shielding with the mechanical properties of ABS. Because it has higher heat resistance than PLA, it is more prone to deformation during 3D printing. That is why a heated surface is crucial for dimensional accuracy.
Electrical resistance: 104 Ohms / cm
Extrusion temperature range: 220 ° C - 260 ° C
Storage requirements: Store in an airtight container or bag at room temperature. ABS will absorb moisture; thereby affecting the size tolerances of the printer's three-dimensional filament. Use airtight storage containers, buckets or zipper bags to keep the material free of moisture.
Conductive ABS CLAMP. Printing conditions:
- Printing temperature: 200 - 230 ° C
- Platform temperature: 100 ° C
|Thread diameter||1,75 mm, 2,85 mm и 3,00 mm|
|Coil weight||0,5 kg|
