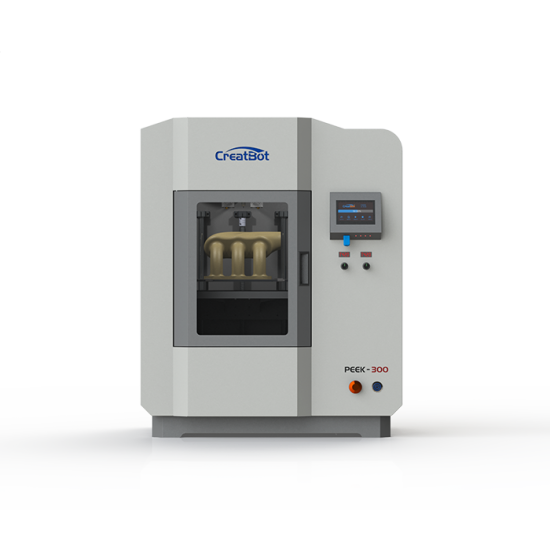

3D printer CreatBot PEEK 300

3D Printer CreatBot PEEK 300

CreatBot PEEK-300 is an industrial 3D printer designed for medicine, surgery, industrial production. Produces printing of high-performance materials: engineering plastics, materials with a high melting point, ultra-PEEK materials. The printer is equipped with highly efficient thermal control, direct annealing and cooling systems. Heat and cooling are perfectly balanced, allowing printing from 0.04 mm layer thickness for both common plastics and highly deformable materials.

3D printer CreatBot PEEK 300 print examples

The print head with dual extruder and nozzle temperatures up to 500 °C allows you to work with a wide range of materials.

CreatBot PEEK 300 print head with dual extruder

The print bed with temperatures up to 200 °C allows large models to be produced without deformation.

CreatBot PEEK 300 print bed up to 200 °C

A chamber temperature of 120 °C also ensures the stability of the product without deformation or cracking.

3D Printer CreatBot PEEK 300 chamber of 120 °C

Triple thermal insulation of the chamber ensures safety and economy.

3D printer CreatBot PEEK 300 buy in Poland

The dual cooling system is efficiently balanced and operates by circulating fluid and air flow.

3D printer CreatBot PEEK 300 buy Warsaw

The direct annealing temperature of 0-400 °C ensures processing without deformation and cracking of large-sized products made of functional materials.

Before annealing

PEEK 300 part before annealing

After annealing

PEEK 300 part after annealing

Specifications 3D Printer CreatBot PEEK300

Printing
Construction field300 * 300 * 400 mm
Print accuracy0.04 mm - 0.4 mm
Thread diameter1.75 mm
Number of nozzlesTwo extruders
Print speed10-150 mm/s
Nozzle diameter0.4 mm (0.3 ~ 1.0 mm optional)
Types of materialsEngineering plastics: PLA, PC, ABS, PA6, PETG, PVDF, TPU, FLEX. TPE. ABS. ASA, etc.
High temperature materials: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF, POM, PP
Ultra-performance materials: Medical PEEK, PEEK, CF-PEEK (Carbon fiber), GF-PEEK ( glass fiber), etc.
Software
Software BundleCreatware, Simplify3D, Cura, Slice3r
operating systemWin7 / 8/10, MacOS
Files for printingSTL, OBJ, AMF, Gcode
Special functions
Disconnect recoveryResuming printing from where it stopped
Filament sensorAutomatic stop if thread runs out
Direct annealing systemThe annealing process is instantly controlled during printing. It aims to deliver the highest quality parts in one go without warping and cracking printing from large functional materials
Thermal insulationTriple thermal insulation
Emergency stop buttonEmergency stop support
High temperature accessoriesHigh temperature resistance motors, linear guides, belts and chains ensure long lasting high temperature printing
Temperature
Maximum nozzle temperature500 ℃
Chamber temperature120 ℃
Platform temperature200 ℃
Annealing temperature0 ~ 400 ℃

Mechanics
CoolingAir pump cooling and water cooling
PlatformPCB aluminum + PEEK print board
Positioning accuracyXY axis 0.01mm, Z axis 0.0025mm
ExtruderDirect drive
DesignFully enclosed hot cell
Calibrating the tableManual / Automatic
Electronics
Input power100 ~ 230 V, 1.5 A
Maximum power3,000 W
Consumption24 V, 15 A
Screen4.3" full color touch screen, multi-language
Printing methodUSB Connectivity / USB Disk

Size and weight
3d printer size650 * 600 * 750 mm
The weight100 kg
Printer size with packaging650 * 600 * 750 mm
The weight100 kg

Main page

FDM printer options
Printing technology FDM
Minimum layer height (micron) 40
Build Field (mm) 300*300*400
Ø of plastic (mm) 1,75
Number of extruders 2
Chamber type Closed
Heating the chamber Yes
Plastic drying No
Autocalibration Yes
Feeder type Direct
Other options
Diameter of the nozzle (mm) 0,4 (optional 0,3 - 1,0)
Positioning accuracy (µm) XY: 10; Z: 25
Print speed (mm/s) From 10 to 150
Maximum nozzle temperature (°C) 500
Maximum chamber temperature (°C) 120
Heating the platform Yes
Direct annealing temperature (°C) 0 - 400
Maximum platform temperature (°C) 200
Platform material PCB aluminum + PEEK print board
Special Function • Power outage: resume printing from where it was stopped • Thread breakage: automatic stop • The annealing process is instantly controlled during printing. It aims to provide the highest quality parts in one go without warping and cracking printing from large functional materials • Triple thermal insulation • Emergency stop button • High temperature resistance motors, linear guides, belts and chains provide long lasting high temperature printing • Air pump cooling and water cooling
Printing material Engineering plastics: PLA, PC, ABS, PA6, PETG, PVDF, TPU, FLEX. TPE. ABS. ASA, etc. High temperature materials: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF, POM, PP Ultra-performance materials: Medical PEEK, PEEK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), etc.
Operating system Win 7/8/10, Mac OS
Software Creatware, Simplify3D, Cura, Slice3r
Printer control 4.3'' full color touch screen, multi-language
Connectivity USB Connectivity/USB Disk
File format STL, OBJ, AMF, G-CODE
Power supply 200~240V, 20A, 4600W
Weight Netto (kg) 100
Dimensions Assembled (mm) 650*600*750
Weight Brutto (kg) 130
Dimensions Brutto (mm) 820*720*1080
