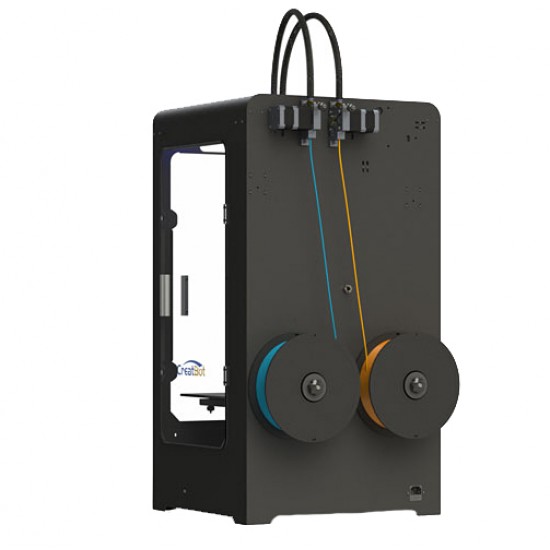

3D printer CreatBot DX Plus

3D printer CreatBot DX Plus buy

3D Printer CreatBot DX Plus is the latest 3D printer with a huge print area of ​​300 x 250 x 520 mm. The die-cast and very durable metal housing of the CreatBot DX Plus 3D printer allows you to print at maximum speeds without losing print quality. The stepper motor is located at the back of the printer, which reduces the weight of the print head and achieves high speed 3D printing.

In the CreatBot DX Plus 3D printer, the extruders have an intelligent cooling system, so that the 3D plastic is fed at the optimal temperature. The adjustable nozzle height design allows multiple nozzles to be set up more quickly and easily, ensuring perfect accuracy when printing multi-color models.

3D printer CreatBot DX Plus

CreatBot DX Plus is the latest 3D printer equipped with a power management module. This function enables the 3D printer to turn off automatically after printing. When printing is complete and there is no keyboard activity for five minutes, the system automatically turns off the printer. This feature is very useful and can help you reduce the power consumption of your printer.

The CreatBot DX Plus 3D Printer is equipped with a multifunctional control panel that provides direct access to a specific function at the touch of a button. The keyboard has 9 keys. Auxiliary functions include: to move up and down the Z shaft, heat or cool the platform, pause or continue printing, and other unique software functions.

3D printer CreatBot DX Plus Buy in Poland

Gear motors run more revolutions than conventional stepper motors, resulting in easier yarn glide and improved plastic feeding accuracy. The feed roll is also designed to feed the plastic without damaging the filament.

3D printer CreatBot DX Plus printing area

Ceramic platform 3D printer

The ceramic platform of the heated 3D printer ensures uniform heating, and the thermal efficiency is greatly improved, which can significantly reduce power consumption. The platform has a smooth surface on a silicone base, which means they have a longer service life.

The metal platform tray is more rigid, which reduces vibration during operation. The metal bracket for fixing the tray is up to 10 mm thick, so the platform heats up very quickly and evenly.

The plastic feed mechanism is located at the rear of the machine, making the nozzle head extremely light. Also, feeding the plastic from the bottom allows you to achieve maximum speed during printing.

The main advantages of a 3D printer

  • Cast steel body
  • Build area: 300 x 250 x 520 mm
  • Supports two / three extruders
  • Supports 3.0 and 1.75mm filament

High-precision mechanics + reliable steel case allow 3D printing at prohibitive speeds without the risk of damaging the printer or spoiling the part.

Specifications

3D printing typeFDM
Print area300 x 250 x 520 mm
Number of extruders2 or 3
Print accuracy50 microns
Layer height50 microns
Plastic diameter3.0mm (1.75mm optional)
Compatible plasticsPLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, etc.
Nozzle diameter0.4 (0.3, 0.5, 0.6, 0.8, 1.0mm available)
File type for printingGCO, GCODE
Supported file typesSTL, OBJ, AMF
Ambient temperature15-32 °C
Maximum nozzle temperature350 °C
Maximum platform temperature100 °C
Best print speed45 mm/s
Maximum print speed120 mm/s
Maximum travel speed200 mm/s
DesignPowder steel, aluminum for motion components, POM
Heating platformMicrocrystalline ceramic panel
Platform CalibrationAutomatically, manually
Stepper motorsStep angle 1.8° with microstep 1/16
XY Positioning Accuracy12.7 micron
Positioning accuracy Z1.25 microns
Power supply100 - 240V, 50 - 60 Hz
Maximum power300 watts
Screen128 * 64 LCD Multi-language
CPUATmega 2560
Data carrierSD Card
ConnectionUSB
SoftwareCreatWare multi-language
OSWindows (7,8,10), Mac OS X
Overall dimensions420 x 380 x 790 mm
The weight30 Kg
Dimensions with packaging550 x 500 x 870 mm
Weight with packaging40 Kg
The country of manufactureChina
Warranty1 year

Contents of delivery

  • Power cable
  • USB cable
  • Adhesive tape for 3D printing
  • SD card with software
  • Spare parts
  • Set of tools
  • SD card adapter
  • User manual in English







Main page


    The main
    Plot area 300*250*520
    FDM printer options
    Printing technology FDM
    Minimum layer height (micron) 50
    Ø of plastic (mm) 1.75 (3.0 or 2.85 optional)
    Print temperature (°C) Up to 270
    Chamber type Closed
    Heating the chamber No
    Plastic drying No
    Autocalibration No
    Feeder type Bowden
